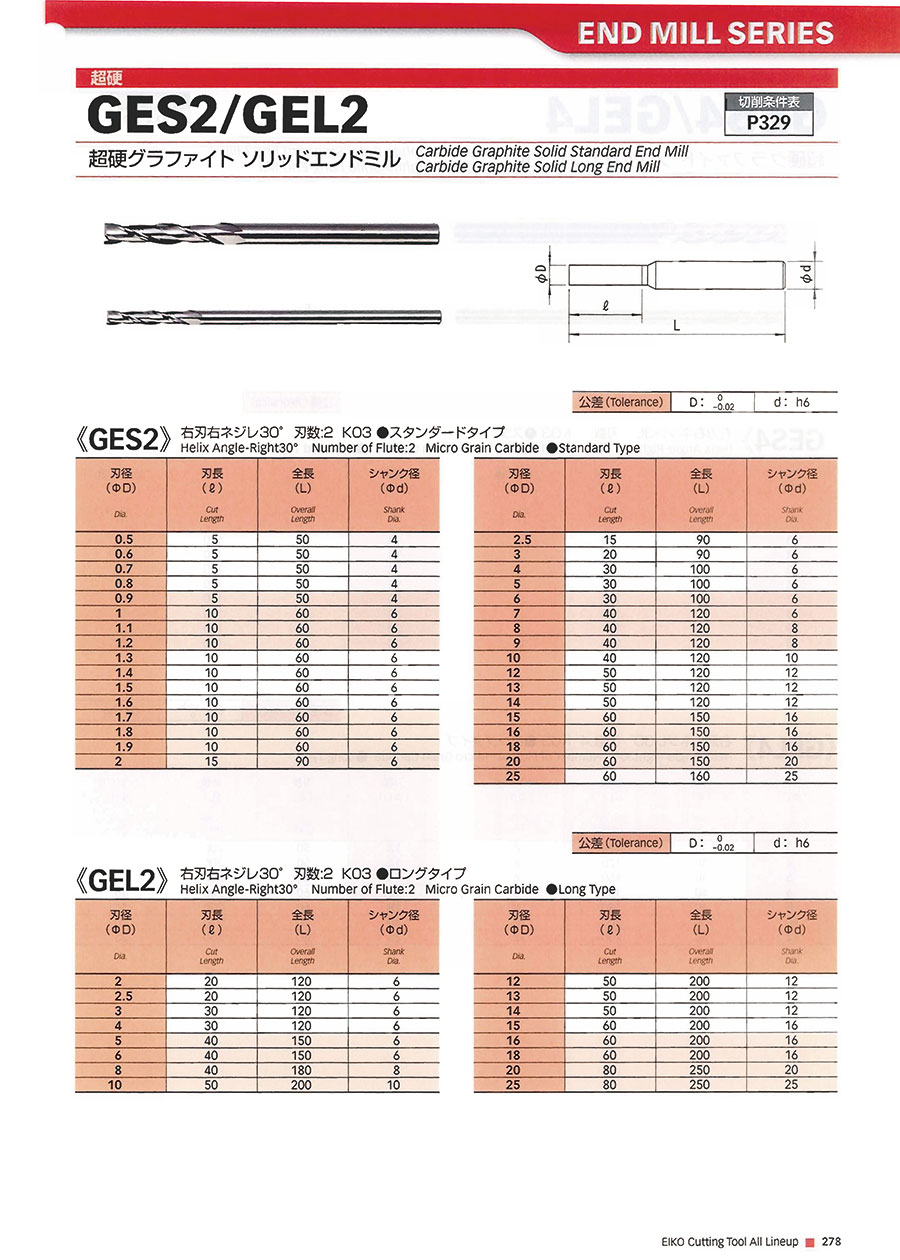

Carbide Graphite Solid End Mill 2-Flute, Long Type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GEL2-1.2 |
| GEL2-1.3 |
| GEL2-1.4 |
| GEL2-1.5 |
| GEL2-1.6 |
| GEL2-1.7 |
| GEL2-1.8 |
| GEL2-1.9 |
| GEL2-2 |
| GEL2-2.5 |
| GEL2-3 |
| GEL2-4 |
| GEL2-5 |
| GEL2-6 |
| GEL2-8 |
| GEL2-10 |
| GEL2-12 |
| GEL2-13 |
| GEL2-14 |
| GEL2-15 |
| GEL2-16 |
| GEL2-18 |
| GEL2-20 |
| GEL2-25 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | |
|---|---|---|---|---|---|---|---|---|
138.01 € | 1 | 6 Days | 1.2 | 20 | 6 | 120 | ||
138.01 € | 1 | 6 Days | 1.3 | 20 | 6 | 120 | ||
138.01 € | 1 | 6 Days | 1.4 | 20 | 6 | 120 | ||
138.01 € | 1 | 6 Days | 1.5 | 20 | 6 | 120 | ||
131.30 € | 1 | 6 Days | 1.6 | 20 | 6 | 120 | ||
131.30 € | 1 | 6 Days | 1.7 | 20 | 6 | 120 | ||
131.30 € | 1 | 6 Days | 1.8 | 20 | 6 | 120 | ||
131.30 € | 1 | 6 Days | 1.9 | 20 | 6 | 120 | ||
173.10 € | 1 | 6 Days | 2 | 20 | 6 | 120 | ||
163.82 € | 1 | 6 Days | 2.5 | 20 | 6 | 120 | ||
159.68 € | 1 | 6 Days | 3 | 30 | 6 | 120 | ||
163.82 € | 1 | 6 Days | 4 | 30 | 6 | 120 | ||
184.54 € | 1 | 6 Days | 5 | 40 | 6 | 150 | ||
184.56 € | 1 | 6 Days | 6 | 40 | 6 | 150 | ||
246.36 € | 1 | 6 Days | 8 | 40 | 8 | 180 | ||
331.00 € | 1 | 6 Days | 10 | 50 | 10 | 200 | ||
410.49 € | 1 | 6 Days | 12 | 50 | 12 | 200 | ||
532.37 € | 1 | 6 Days | 13 | 50 | 12 | 200 | ||
563.41 € | 1 | 6 Days | 14 | 50 | 12 | 200 | ||
598.56 € | 1 | 6 Days | 15 | 60 | 16 | 200 | ||
615.71 € | 1 | 6 Days | 16 | 60 | 16 | 200 | ||
805.63 € | 1 | 6 Days | 18 | 60 | 16 | 200 | ||
1,003.35 € | 1 | 6 Days | 20 | 80 | 20 | 250 | ||
1,550.59 € | 1 | 6 Days | 25 | 80 | 25 | 250 |
Loading...
Basic information
| work material | Non-ferrous metal / Non-ferrous metal / Graphite | Number of flutes(sheet) | 2 | Type | Square |
|---|---|---|---|---|---|
| Machining Application | Plane / Side / Groove / Countersinking | Blade tip shape | Sharp Edge | Torsion Angle (θ) | Standard Helix (30˚ to 40˚) |
| Blade diameter tolerance D(mm) | -0.02～0 | Shank diameter tolerance d(mm) | h6 |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Type
- GEL2
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
