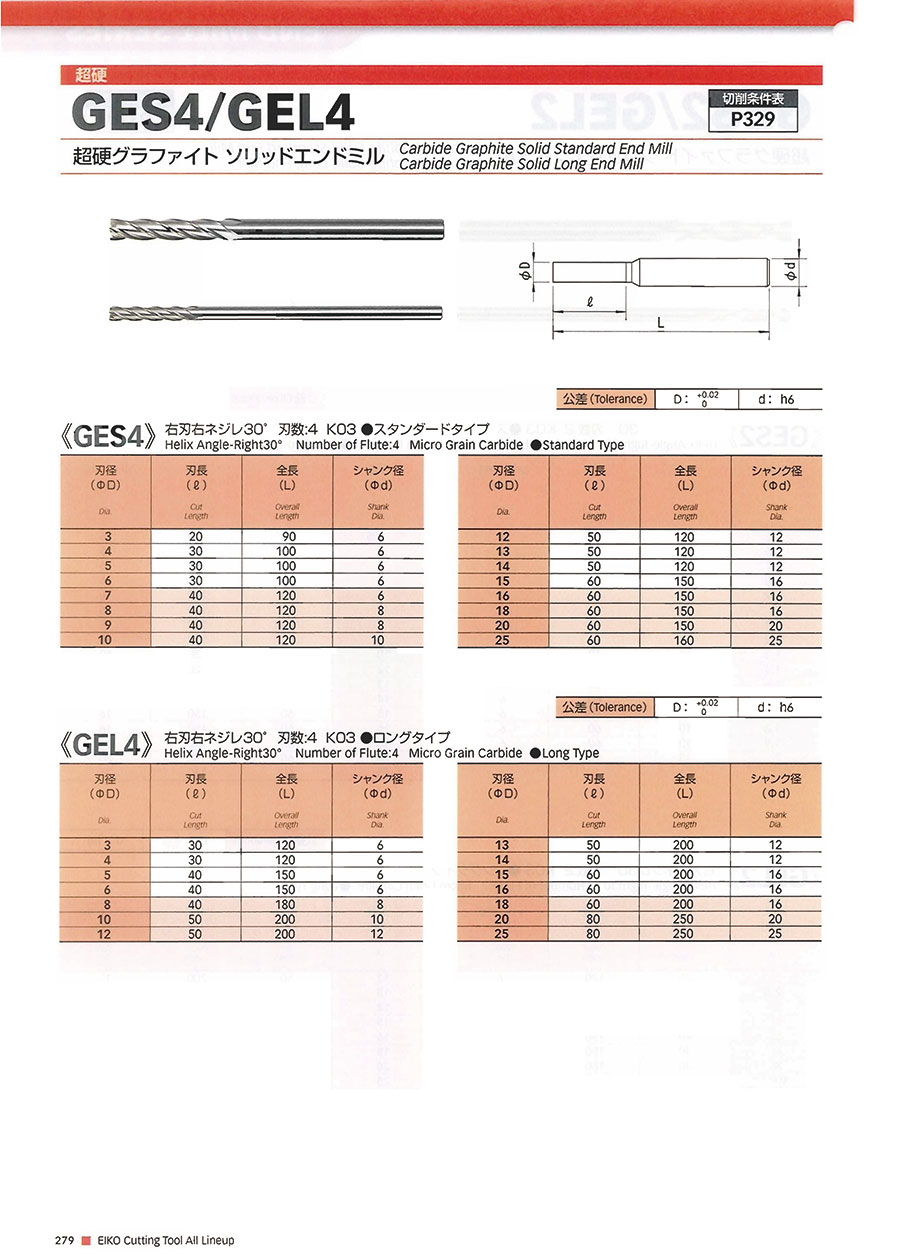

Carbide Graphite Solid End Mill 4-Flute, Long Type

Carbide Graphite Solid End Mill 4-Flute, Long Type
GEL4, right helix angle 30°, number of flutes: 4, KO3, long version "helix angle": standard helix (30 to 44°), "machining application (machining form)": Plane/side face/groove/sink, "Tool material": carbide.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
GEL4-3
GEL4-4
GEL4-5
GEL4-6
GEL4-8
GEL4-10
GEL4-12
GEL4-13
GEL4-14
GEL4-15
GEL4-16
GEL4-18
GEL4-20
GEL4-25
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)

175.67 €

1 6 Days 3306120

176.76 €

1 6 Days 4306120

203.11 €

1 6 Days 5406150

203.14 €

1 6 Days 6406150

271.12 €

1 6 Days 8408180

363.50 €

1 6 Days 105010200

451.77 €

1 6 Days 125012200

585.00 €

1 6 Days 135012200

619.67 €

1 6 Days 145012200

658.44 €

1 6 Days 156016200

677.13 €

1 6 Days 166016200

885.56 €

1 6 Days 186016200

1,103.27 €

1 6 Days 208020250

1,705.48 €

1 6 Days 258025250

Loading...

  1. 1

Basic information

work material Non-ferrous metal / Non-ferrous metal / Graphite Number of flutes(sheet) 4 Type Square
Machining Application Plane / Side / Groove / Countersinking Blade tip shape Sharp Edge Torsion Angle (θ) Standard Helix (30˚ to 40˚)
Blade diameter tolerance D(mm) 0~+0.02 Shank diameter tolerance d(mm) h6
