Long Shank End Mill 4 Blades

Long Shank End Mill 4 Blades
  • Volume Discount

FUKUDA

FUKUDA

Long shank / center-cut for deep engraving and blind holes

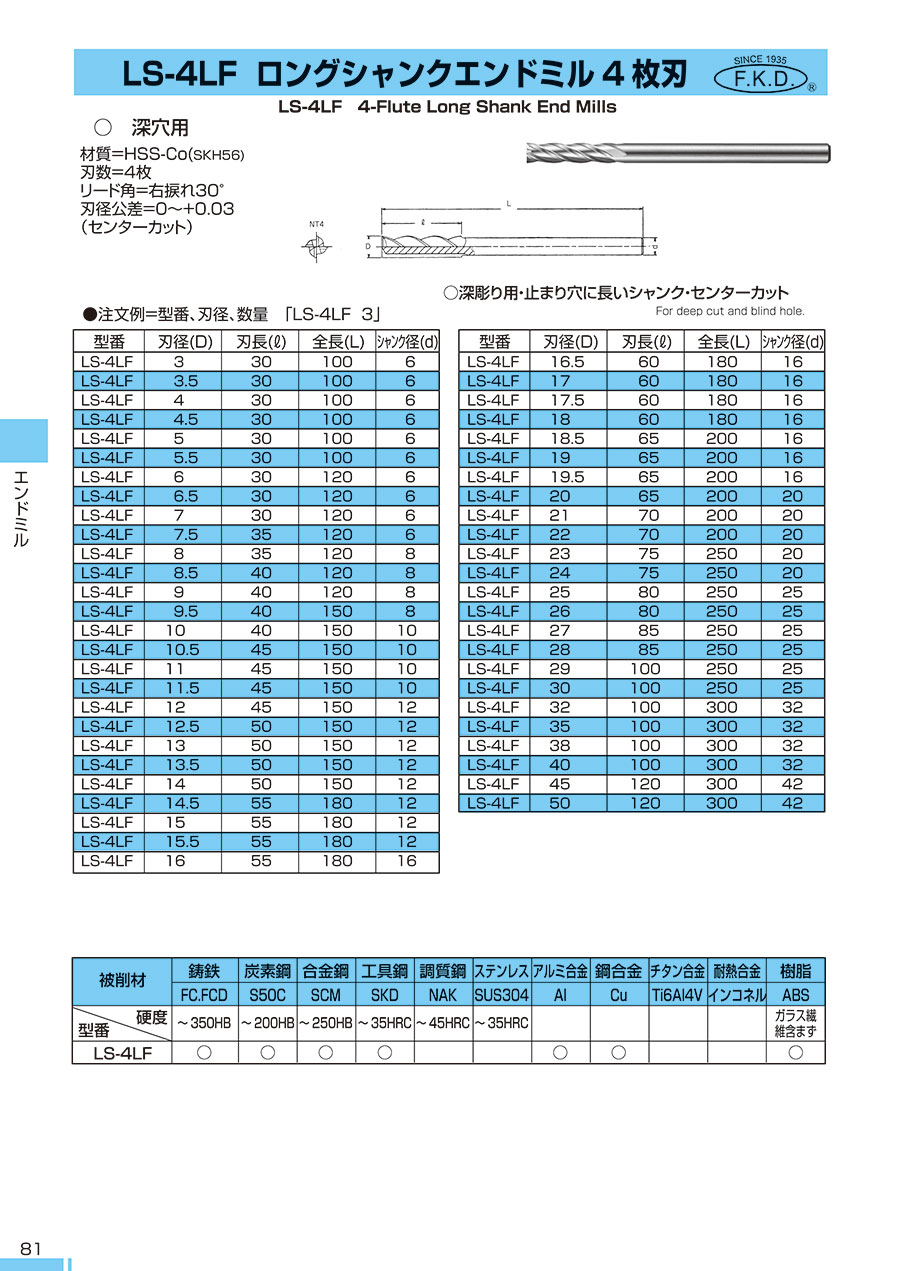

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.



Data to be displayed
30
45
60
  1. 1
Part Number
LS-4LF-3.0
LS-4LF-3.5
LS-4LF-4.0
LS-4LF-4.5
LS-4LF-5.0
LS-4LF-5.5
LS-4LF-6.0
LS-4LF-6.5
LS-4LF-7.0
LS-4LF-7.5
LS-4LF-8.0
LS-4LF-8.5
LS-4LF-9.0
LS-4LF-9.5
LS-4LF-10.0
LS-4LF-10.5
LS-4LF-11.0
LS-4LF-11.5
LS-4LF-12.0
LS-4LF-12.5
LS-4LF-13.0
LS-4LF-13.5
LS-4LF-14.0
LS-4LF-14.5
LS-4LF-15.0
LS-4LF-15.5
LS-4LF-16.0
LS-4LF-16.5
LS-4LF-17.0
LS-4LF-17.5
LS-4LF-18.0
LS-4LF-18.5
LS-4LF-19.0
LS-4LF-19.5
LS-4LF-20.0
LS-4LF-21.0
LS-4LF-22.0
LS-4LF-23.0
LS-4LF-24.0
LS-4LF-25.0
LS-4LF-26.0
LS-4LF-27.0
LS-4LF-28.0
LS-4LF-29.0
LS-4LF-30.0
LS-4LF-32.0
LS-4LF-35.0
LS-4LF-38.0
LS-4LF-40.0
LS-4LF-45.0
LS-4LF-50.0
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ) 		Blade length (ℓ)
(mm) 		Shank diameter (d)
(mm) 		Overall Length (L)
(mm) 		Blade tip shape

46.31 €

1 Available 10 Days 3306100Sharp Edge

57.86 €

1 Available 6 Days 3.5306100Sharp Edge

46.31 €

1 Available 6 Days 4306100Sharp Edge

57.86 €

1 Available 6 Days 4.5306100Sharp Edge

46.39 €

1 Available 10 Days 5306100Sharp Edge

57.94 €

1 Available 6 Days 5.5306100Sharp Edge

46.39 €

1 Available 10 Days 6306120Sharp Edge

57.94 €

1 Available 6 Days 6.5306120Sharp Edge

44.11 €

1 Available Same day

Stock

7306120Sharp Edge

68.66 €

1 Available 6 Days 7.5356120Sharp Edge

55.62 €

1 Available 6 Days 8358120Sharp Edge

68.80 €

1 Available 10 Days 8.5408120Sharp Edge

55.62 €

1 Available 6 Days 9408120Sharp Edge

73.90 €

1 Available 10 Days 9.5408150Sharp Edge

59.27 €

1 Available 6 Days 104010150Sharp Edge

94.74 €

1 6 Days 10.54510150C plane

74.95 €

1 Available 10 Days 114510150C plane

94.74 €

1 6 Days 11.54510150C plane

75.18 €

1 Available 6 Days 124512150C plane

118.88 €

1 6 Days 12.55012150C plane

95.04 €

1 6 Days 135012150C plane

118.95 €

1 6 Days 13.55012150C plane

95.04 €

1 6 Days 145012150C plane

98.81 €

1 6 Days 14.55512180C plane

113.40 €

1 6 Days 155512180C plane

110.96 €

1 6 Days 15.55512180C plane

126.44 €

1 6 Days 165516180C plane

127.56 €

1 6 Days 16.56016180C plane

102.79 €

1 6 Days 176016180C plane

127.61 €

1 6 Days 17.56016180C plane

102.84 €

1 10 Days 186016180C plane

148.56 €

1 6 Days 18.56516200C plane

119.18 €

1 6 Days 196516200C plane

148.61 €

1 6 Days 19.56516200C plane

119.85 €

1 6 Days 206520200C plane

146.41 €

1 6 Days 217020200C plane

146.51 €

1 6 Days 227020200C plane

177.15 €

1 6 Days 237520250C plane

177.25 €

1 6 Days 247520250C plane

187.19 €

1 6 Days 258025250C plane

208.03 €

1 6 Days 268025250C plane

242.65 €

1 6 Days 278525250C plane

242.80 €

1 6 Days 288525250C plane

290.73 €

1 6 Days 2910025250C plane

290.82 €

1 6 Days 3010025250C plane

339.03 €

1 6 Days 3210032300C plane

411.51 €

1 6 Days 3510032300C plane

501.90 €

1 6 Days 3810032300C plane

562.18 €

1 6 Days 4010032300C plane

787.17 €

1 6 Days 4512042300C plane

980.37 €

1 6 Days 5012042300C plane

Loading...

  1. 1


Basic information

work material Cast Iron / Aluminum / Resin / Carbon Steel / Alloy Steel / Tool Steel / Steel Alloy Blade shape type Square Number of flutes(sheet) 4
Tool Material Type Cobalt HSS (SKH56) Machining Application Plane / Side / Groove / Plunging (Z feed) Coating Non-Coated
Torsion Angle (θ) Standard Helix (30˚ to 40˚) Base Blade Y/N Available Blade diameter tolerance(mm) 0～+0.03
Center Hole None
