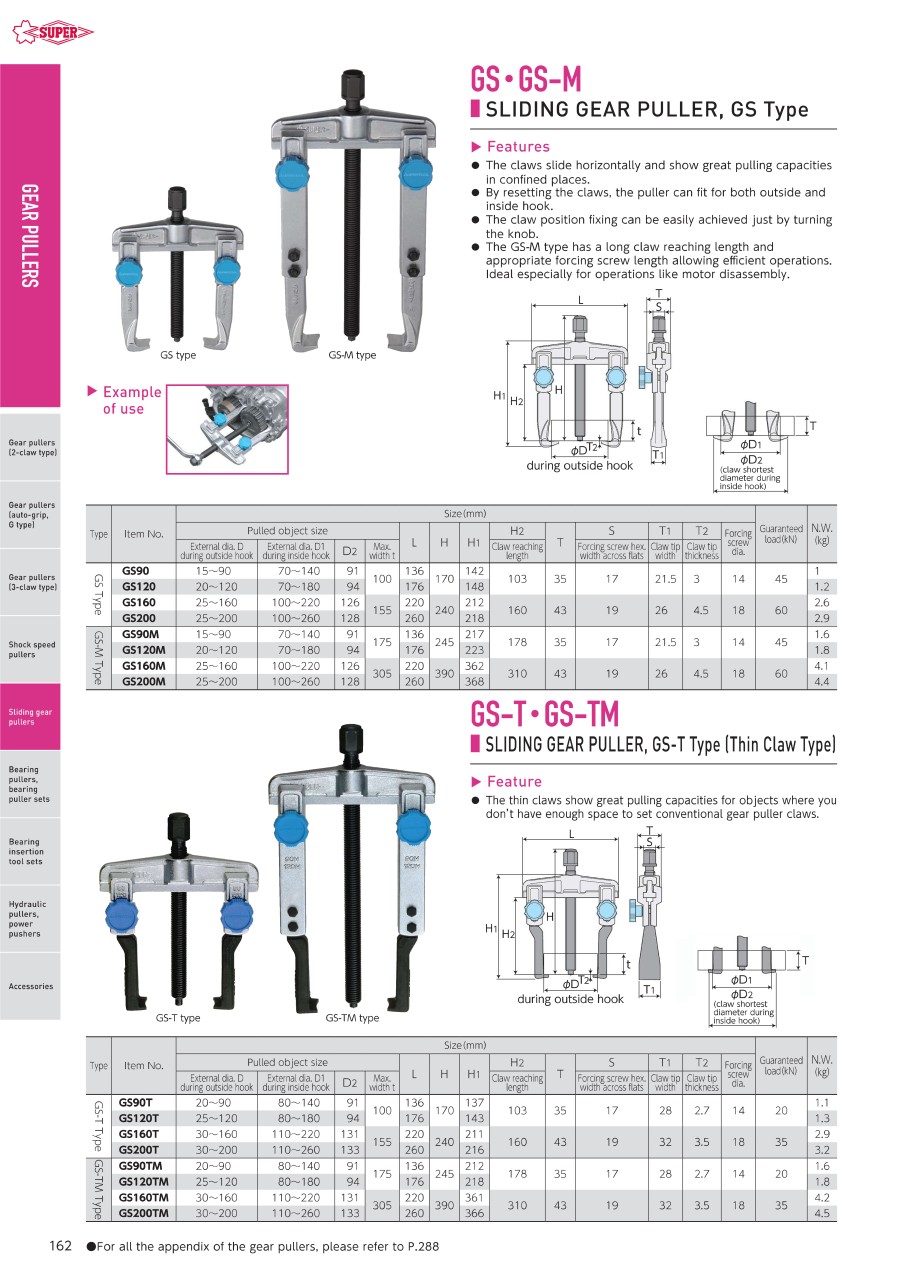

Slide Gear Puller

Slide Gear Puller
[Features]
· Claws can slide in parallel, effective for work in a tight space.
· Simply re-set the claw for inner or outer hanging, which are both available.
· The claw placement can be fixed easily with the turn of a knob.
· With GS-M, the claw can reach a wide range, with male screws of an appropriate length, so that efficient work can be carried out.
· Ideal particularly for disassembling motors, etc.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
GS90
GS120
GS160
GS200
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Applicable Pulley
(mm)
Claw Reach Length
(mm)
Fracture Load
(kN)
Mass
(g)
Claw Tip Thickness
(mm)
Male Thread O.D.
(mm)

95.56 €

1 5 Days Outside: 15-90/Inside: 70-140103451000314

93.08 €

1 5 Days Outside: 20-120/Inside: 70-180103451200314

144.31 €

1 5 Days Outside: 25-160/Inside: 100-2201606026004.518

238.95 €

1 5 Days Outside: 25-200/Inside: 100-2601606029004.518

Loading...

  1. 1

Basic information

Product Type Gear Puller Main Body, Related Products Main Body Features Simply re-set the claw for inner or outer hanging, which are both available. The claw placement can be fixed easily with the turn of a knob.
