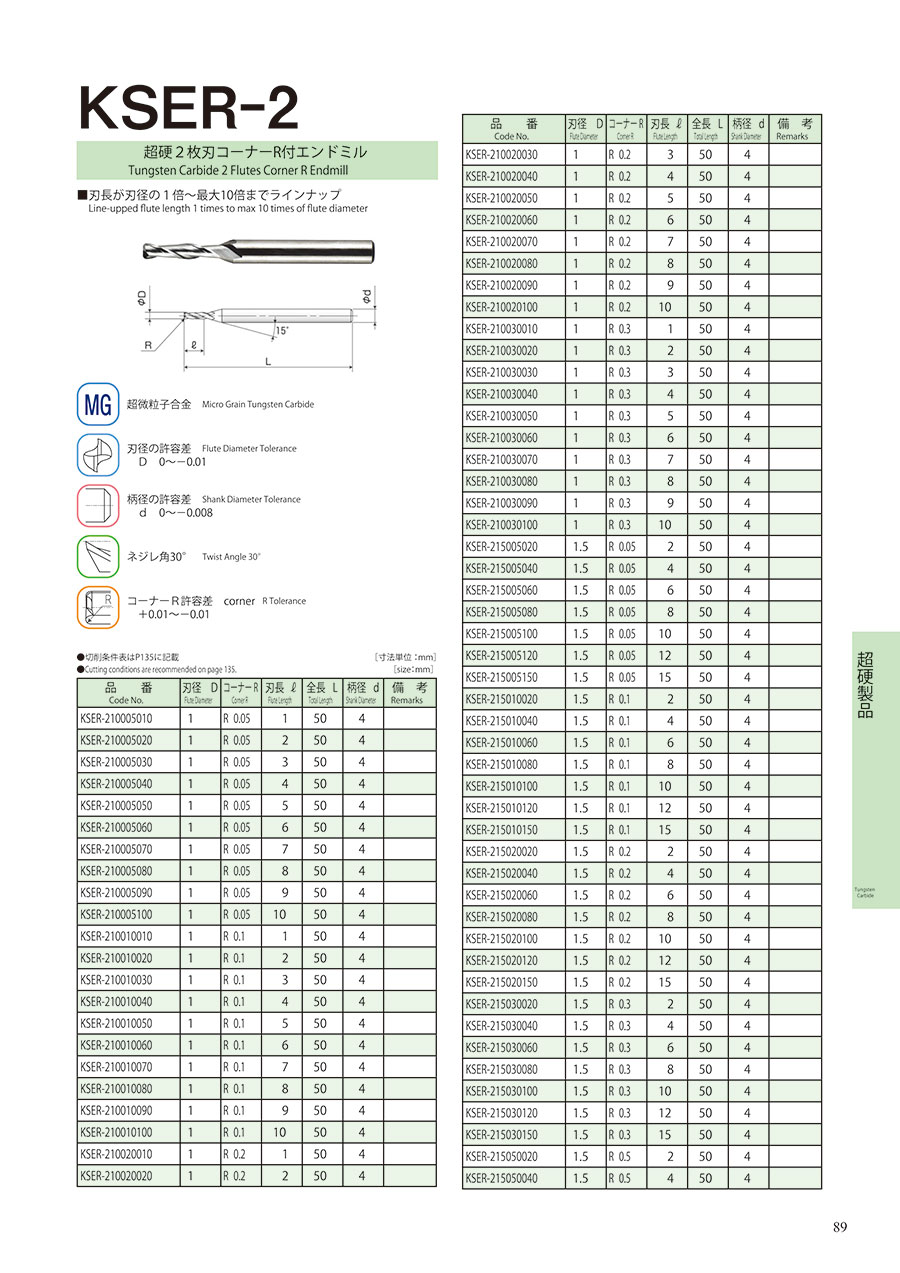

End Mill with 2 Carbide Flutes and Corner Radius KSER-2
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Shank diameter (d) (mm) | Corner R (mm) | |
|---|---|---|---|---|---|---|---|---|---|
76.08 € | 1 | Available | 6 Days | 1 | 1 | 50 | 4 | 0.05 | |
76.08 € | 1 | Available | 6 Days | 1 | 2 | 50 | 4 | 0.05 | |
76.08 € | 1 | Available | 6 Days | 1 | 3 | 50 | 4 | 0.05 | |
83.08 € | 1 | Available | 6 Days | 1 | 4 | 50 | 4 | 0.05 | |
90.09 € | 1 | 6 Days | 1 | 5 | 50 | 4 | 0.05 | ||
99.74 € | 1 | 6 Days | 1 | 6 | 50 | 4 | 0.05 | ||
103.24 € | 1 | 6 Days | 1 | 7 | 50 | 4 | 0.05 | ||
110.24 € | 1 | 6 Days | 1 | 8 | 50 | 4 | 0.05 | ||
120.76 € | 1 | 6 Days | 1 | 9 | 50 | 4 | 0.05 | ||
124.26 € | 1 | 6 Days | 1 | 10 | 50 | 4 | 0.05 | ||
76.08 € | 1 | Available | 6 Days | 1 | 1 | 50 | 4 | 0.1 | |
76.08 € | 1 | Available | 6 Days | 1 | 2 | 50 | 4 | 0.1 | |
76.08 € | 1 | Available | 6 Days | 1 | 3 | 50 | 4 | 0.1 | |
83.08 € | 1 | Available | 6 Days | 1 | 4 | 50 | 4 | 0.1 | |
90.09 € | 1 | 6 Days | 1 | 5 | 50 | 4 | 0.1 | ||
99.74 € | 1 | 6 Days | 1 | 6 | 50 | 4 | 0.1 | ||
103.24 € | 1 | 6 Days | 1 | 7 | 50 | 4 | 0.1 | ||
110.24 € | 1 | 6 Days | 1 | 8 | 50 | 4 | 0.1 | ||
120.76 € | 1 | 6 Days | 1 | 9 | 50 | 4 | 0.1 | ||
124.26 € | 1 | 6 Days | 1 | 10 | 50 | 4 | 0.1 | ||
76.08 € | 1 | Available | 6 Days | 1 | 1 | 50 | 4 | 0.2 | |
76.08 € | 1 | Available | 6 Days | 1 | 2 | 50 | 4 | 0.2 | |
76.08 € | 1 | Available | 6 Days | 1 | 3 | 50 | 4 | 0.2 | |
83.08 € | 1 | Available | 6 Days | 1 | 4 | 50 | 4 | 0.2 | |
90.09 € | 1 | 6 Days | 1 | 5 | 50 | 4 | 0.2 | ||
99.74 € | 1 | 6 Days | 1 | 6 | 50 | 4 | 0.2 | ||
103.24 € | 1 | 6 Days | 1 | 7 | 50 | 4 | 0.2 | ||
110.24 € | 1 | 6 Days | 1 | 8 | 50 | 4 | 0.2 | ||
120.76 € | 1 | 6 Days | 1 | 9 | 50 | 4 | 0.2 | ||
106.89 € | 1 | Available | 6 Days | 1 | 10 | 50 | 4 | 0.2 | |
76.08 € | 1 | Available | 6 Days | 1 | 1 | 50 | 4 | 0.3 | |
76.08 € | 1 | Available | 6 Days | 1 | 2 | 50 | 4 | 0.3 | |
76.08 € | 1 | Available | 6 Days | 1 | 3 | 50 | 4 | 0.3 | |
83.08 € | 1 | Available | 6 Days | 1 | 4 | 50 | 4 | 0.3 | |
90.09 € | 1 | 6 Days | 1 | 5 | 50 | 4 | 0.3 | ||
99.74 € | 1 | 6 Days | 1 | 6 | 50 | 4 | 0.3 | ||
103.24 € | 1 | 6 Days | 1 | 7 | 50 | 4 | 0.3 | ||
110.24 € | 1 | 6 Days | 1 | 8 | 50 | 4 | 0.3 | ||
120.76 € | 1 | 6 Days | 1 | 9 | 50 | 4 | 0.3 | ||
124.26 € | 1 | 6 Days | 1 | 10 | 50 | 4 | 0.3 | ||
76.08 € | 1 | Available | 6 Days | 1.5 | 2 | 50 | 4 | 0.05 | |
76.08 € | 1 | Available | 6 Days | 1.5 | 4 | 50 | 4 | 0.05 | |
90.09 € | 1 | 6 Days | 1.5 | 6 | 50 | 4 | 0.05 | ||
103.24 € | 1 | 6 Days | 1.5 | 8 | 50 | 4 | 0.05 | ||
110.24 € | 1 | 6 Days | 1.5 | 10 | 50 | 4 | 0.05 | ||
120.76 € | 1 | 6 Days | 1.5 | 12 | 50 | 4 | 0.05 | ||
91.10 € | 1 | 6 Days | 1.5 | 15 | 50 | 4 | 0.05 | ||
76.08 € | 1 | Available | 6 Days | 1.5 | 2 | 50 | 4 | 0.1 | |
76.08 € | 1 | Available | 6 Days | 1.5 | 4 | 50 | 4 | 0.1 | |
90.09 € | 1 | 6 Days | 1.5 | 6 | 50 | 4 | 0.1 | ||
103.24 € | 1 | 6 Days | 1.5 | 8 | 50 | 4 | 0.1 | ||
110.24 € | 1 | 6 Days | 1.5 | 10 | 50 | 4 | 0.1 | ||
120.76 € | 1 | 6 Days | 1.5 | 12 | 50 | 4 | 0.1 | ||
91.10 € | 1 | 6 Days | 1.5 | 15 | 50 | 4 | 0.1 | ||
76.08 € | 1 | Available | 6 Days | 1.5 | 2 | 50 | 4 | 0.2 | |
76.08 € | 1 | Available | 6 Days | 1.5 | 4 | 50 | 4 | 0.2 | |
90.09 € | 1 | 6 Days | 1.5 | 6 | 50 | 4 | 0.2 | ||
103.24 € | 1 | 6 Days | 1.5 | 8 | 50 | 4 | 0.2 | ||
110.24 € | 1 | 6 Days | 1.5 | 10 | 50 | 4 | 0.2 | ||
120.76 € | 1 | 6 Days | 1.5 | 12 | 50 | 4 | 0.2 |
Loading...
Basic information
| work material | General Steel / Quenched and tempered steel / Stainless Steel / Cast Iron | Number of flutes(sheet) | 2 | Type | Radius |
|---|---|---|---|---|---|
| Machining Application | Plane / Side / Curved surface / Groove / Inclined Cuts | Coating | Non-Coated | Torsion Angle (θ) | Standard Helix (30˚ to 40˚) |
| Blade diameter tolerance | 0～－0.01 | Handle diameter tolerance | 0～－0.008 | Rounded Corner Allowable Difference | ＋0.01～－0.01 |
| Material | Ultrafine particle alloys | Torsion Angle details | 30° |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Shank diameter (d)(mm)
-
Corner R(mm)
-
Type
- KSER-2
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
