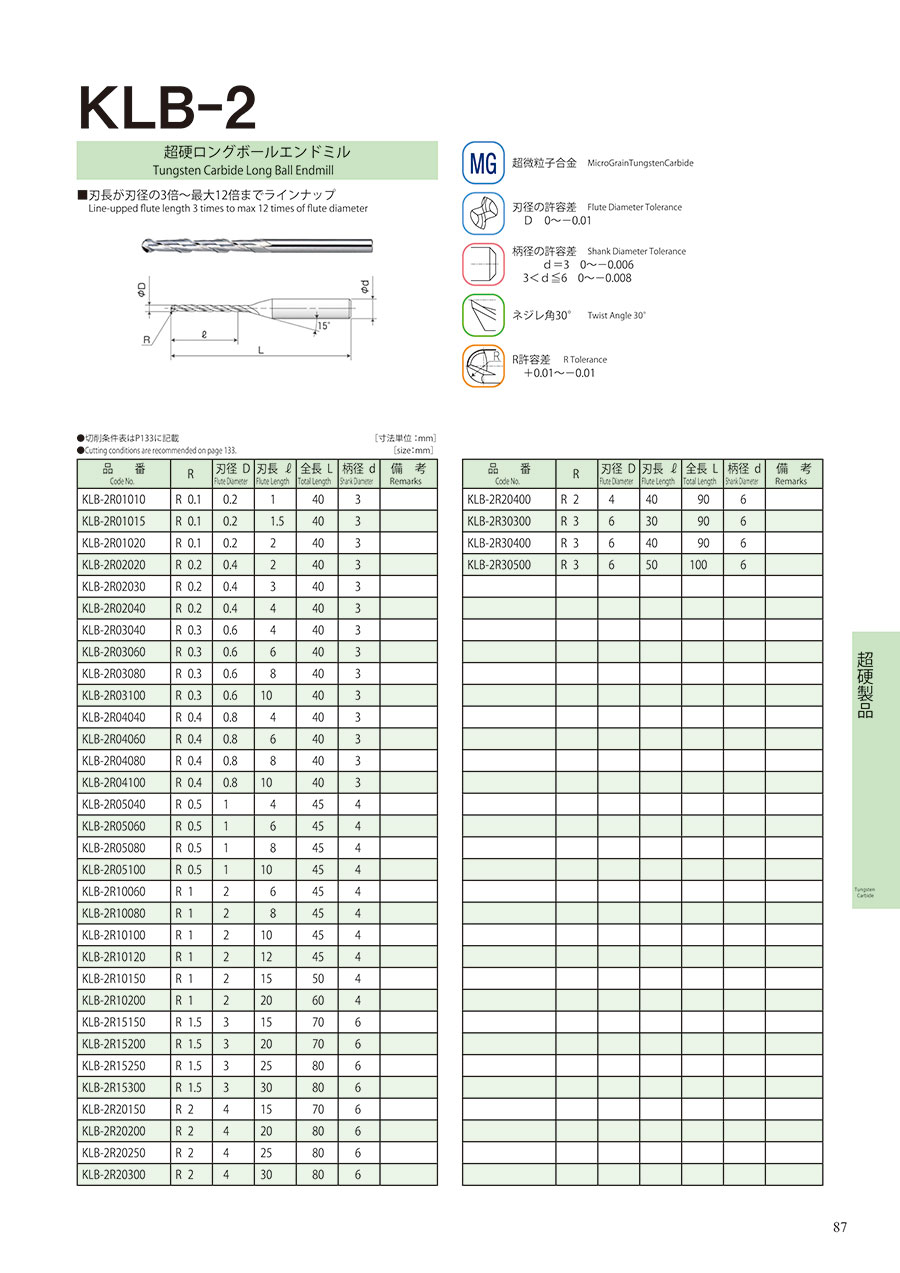

Carbide Long Ball End Mill KLB-2
Setting from 3 times to 12 times the cutting diameter
-Ultra fine grain alloy
-Helix angle 30°.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Shank diameter (d) (mm) | blade diameter (mm) | Handle diameter tolerance | |
|---|---|---|---|---|---|---|---|---|---|---|
114.97 € | 1 | 6 Days | 0.1 | 1 | 40 | 3 | 0.2 | 0～－0.006 | ||
124.77 € | 1 | 6 Days | 0.1 | 1.5 | 40 | 3 | 0.2 | 0～－0.006 | ||
133.94 € | 1 | 6 Days | 0.1 | 2 | 40 | 3 | 0.2 | 0～－0.006 | ||
110.08 € | 1 | 6 Days | 0.2 | 2 | 40 | 3 | 0.4 | 0～－0.006 | ||
119.86 € | 1 | 6 Days | 0.2 | 3 | 40 | 3 | 0.4 | 0～－0.006 | ||
131.50 € | 1 | 6 Days | 0.2 | 4 | 40 | 3 | 0.4 | 0～－0.006 | ||
119.86 € | 1 | 6 Days | 0.3 | 4 | 40 | 3 | 0.6 | 0～－0.006 | ||
131.50 € | 1 | 6 Days | 0.3 | 6 | 40 | 3 | 0.6 | 0～－0.006 | ||
138.85 € | 1 | 6 Days | 0.3 | 8 | 40 | 3 | 0.6 | 0～－0.006 | ||
155.37 € | 1 | 6 Days | 0.3 | 10 | 40 | 3 | 0.6 | 0～－0.006 | ||
96.00 € | 1 | 6 Days | 0.4 | 4 | 40 | 3 | 0.8 | 0～－0.006 | ||
110.08 € | 1 | 6 Days | 0.4 | 6 | 40 | 3 | 0.8 | 0～－0.006 | ||
124.77 € | 1 | 6 Days | 0.4 | 8 | 40 | 3 | 0.8 | 0～－0.006 | ||
143.74 € | 1 | 6 Days | 0.4 | 10 | 40 | 3 | 0.8 | 0～－0.006 | ||
103.24 € | 1 | 6 Days | 0.5 | 4 | 45 | 4 | 1 | 0～－0.008 | ||
91.10 € | 1 | 6 Days | 0.5 | 6 | 45 | 4 | 1 | 0～－0.008 | ||
110.08 € | 1 | 6 Days | 0.5 | 8 | 45 | 4 | 1 | 0～－0.008 | ||
124.77 € | 1 | 6 Days | 0.5 | 10 | 45 | 4 | 1 | 0～－0.008 | ||
96.23 € | 1 | 6 Days | 1 | 6 | 45 | 4 | 2 | 0～－0.008 | ||
103.24 € | 1 | 6 Days | 1 | 8 | 45 | 4 | 2 | 0～－0.008 | ||
110.24 € | 1 | 6 Days | 1 | 10 | 45 | 4 | 2 | 0～－0.008 | ||
96.00 € | 1 | 6 Days | 1 | 12 | 45 | 4 | 2 | 0～－0.008 | ||
124.77 € | 1 | 6 Days | 1 | 15 | 50 | 4 | 2 | 0～－0.008 | ||
143.74 € | 1 | 10 Days | 1 | 20 | 60 | 4 | 2 | 0～－0.008 | ||
124.26 € | 1 | 6 Days | 1.5 | 15 | 70 | 6 | 3 | 0～－0.008 | ||
100.89 € | 1 | 6 Days | 1.5 | 20 | 70 | 6 | 3 | 0～－0.008 | ||
119.86 € | 1 | 6 Days | 1.5 | 25 | 80 | 6 | 3 | 0～－0.008 | ||
141.29 € | 1 | 6 Days | 1.5 | 30 | 80 | 6 | 3 | 0～－0.008 | ||
110.24 € | 1 | 6 Days | 2 | 15 | 70 | 6 | 4 | 0～－0.008 | ||
124.26 € | 1 | 6 Days | 2 | 20 | 80 | 6 | 4 | 0～－0.008 | ||
107.62 € | 1 | 10 Days | 2 | 25 | 80 | 6 | 4 | 0～－0.008 | ||
138.85 € | 1 | 6 Days | 2 | 30 | 80 | 6 | 4 | 0～－0.008 | ||
155.37 € | 1 | 6 Days | 2 | 40 | 90 | 6 | 4 | 0～－0.008 | ||
107.62 € | 1 | 6 Days | 3 | 30 | 90 | 6 | 6 | 0～－0.008 | ||
138.85 € | 1 | 6 Days | 3 | 40 | 90 | 6 | 6 | 0～－0.008 | ||
186.58 € | 1 | 6 Days | 3 | 50 | 100 | 6 | 6 | 0～－0.008 |
Loading...
Basic information
| Type | Long-Neck Ball | work material | General Steel / Quenched and tempered steel / Cast Iron | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| R Precision(μm) | ＋0.01～－0.01 | Machining Application | Curved surface / Side / Engraving / R Groove | Twist | Torsional Angle 30° |
| Blade diameter tolerance | 0～－0.01 | Material | Ultrafine particle alloys |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Shank diameter (d)(mm)
-
blade diameter(mm)
-
Type
- KLB-2
Filter by standard shipping days
-
- All
- 6 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
