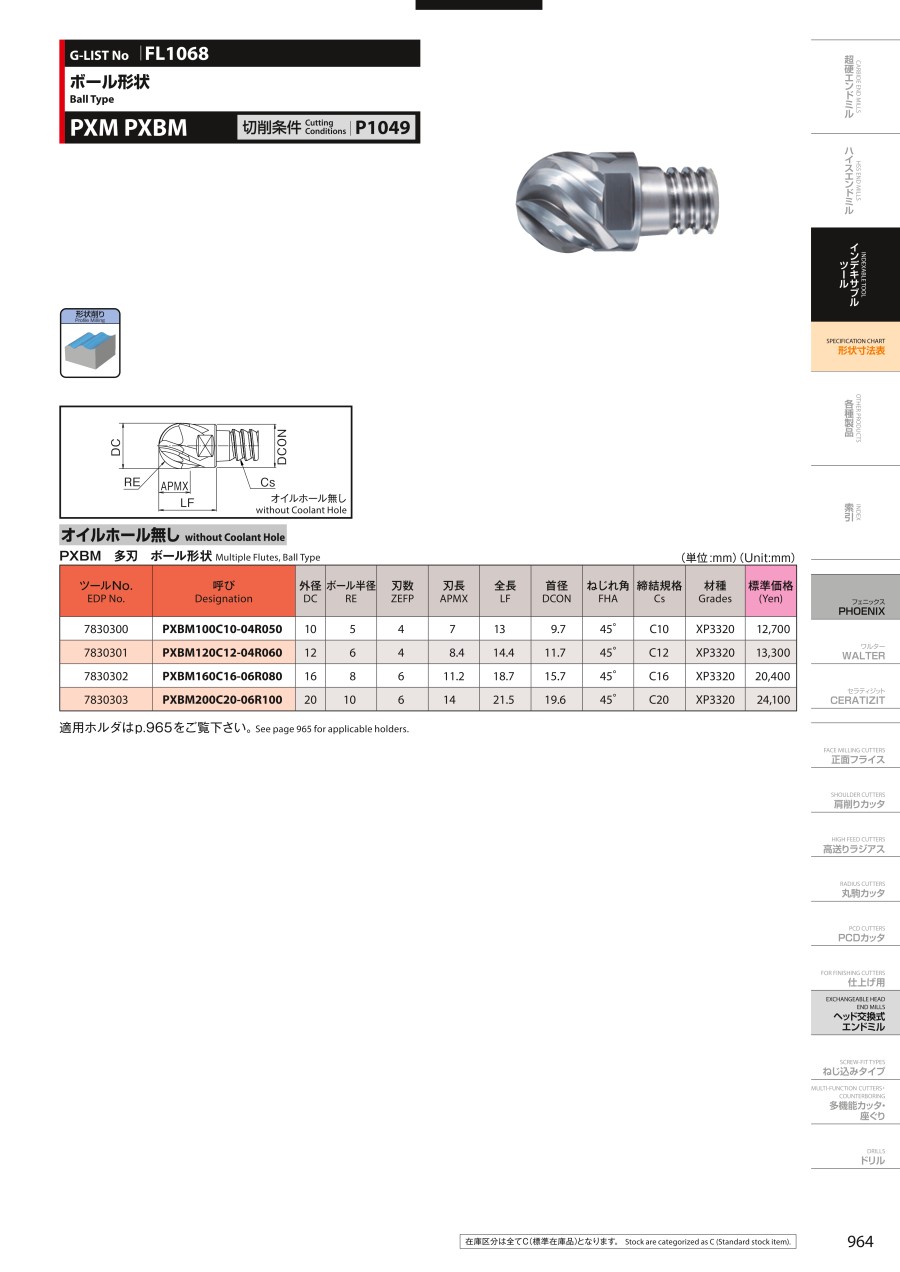

Phoenix Series Head Replaceable End Mills Multi-Flute Ball Type PXBM
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PXBM120C12-04R060-XP3320 |
| PXBM160C16-06R080-XP3320 |
| PXBM200C20-06R100-XP3320 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (D) (φ) | Overall length (L) (mm) | Total number of flutes (sheet) | Tool No. | Corner Radius r (mm) | Blade length ℓ (mm) | Neck diameter D1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
129.00 € | 1 | Available | 6 Days | 12 | 14.4 | 4 | 7830301 | 6 | 8.4 | 11.7 | |
136.70 € | 1 | 6 Days | 16 | 18.7 | 6 | 7830302 | 8 | 11.2 | 15.7 | ||
155.80 € | 1 | 6 Days | 20 | 21.5 | 6 | 7830303 | 10 | 14 | 19.6 |
Loading...
Basic information
| Machining Application | Groove / Other | Mounting Method | Centering Plug | Material type | XP3320 |
|---|---|---|---|---|---|
| Torsional Angle(°) | 45 |
Configure
Basic Attributes
-
Outer Diameter (D)(φ)
-
Overall length (L)(mm)
-
Total number of flutes(sheet)
-
Tool No.
-
Corner Radius r(mm)
- 6
- 8
- 10
-
Blade length ℓ(mm)
- 8.4
- 11.2
- 14
-
Neck diameter D1(mm)
- 11.7
- 15.7
- 19.6
-
Type
- PXBM
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
