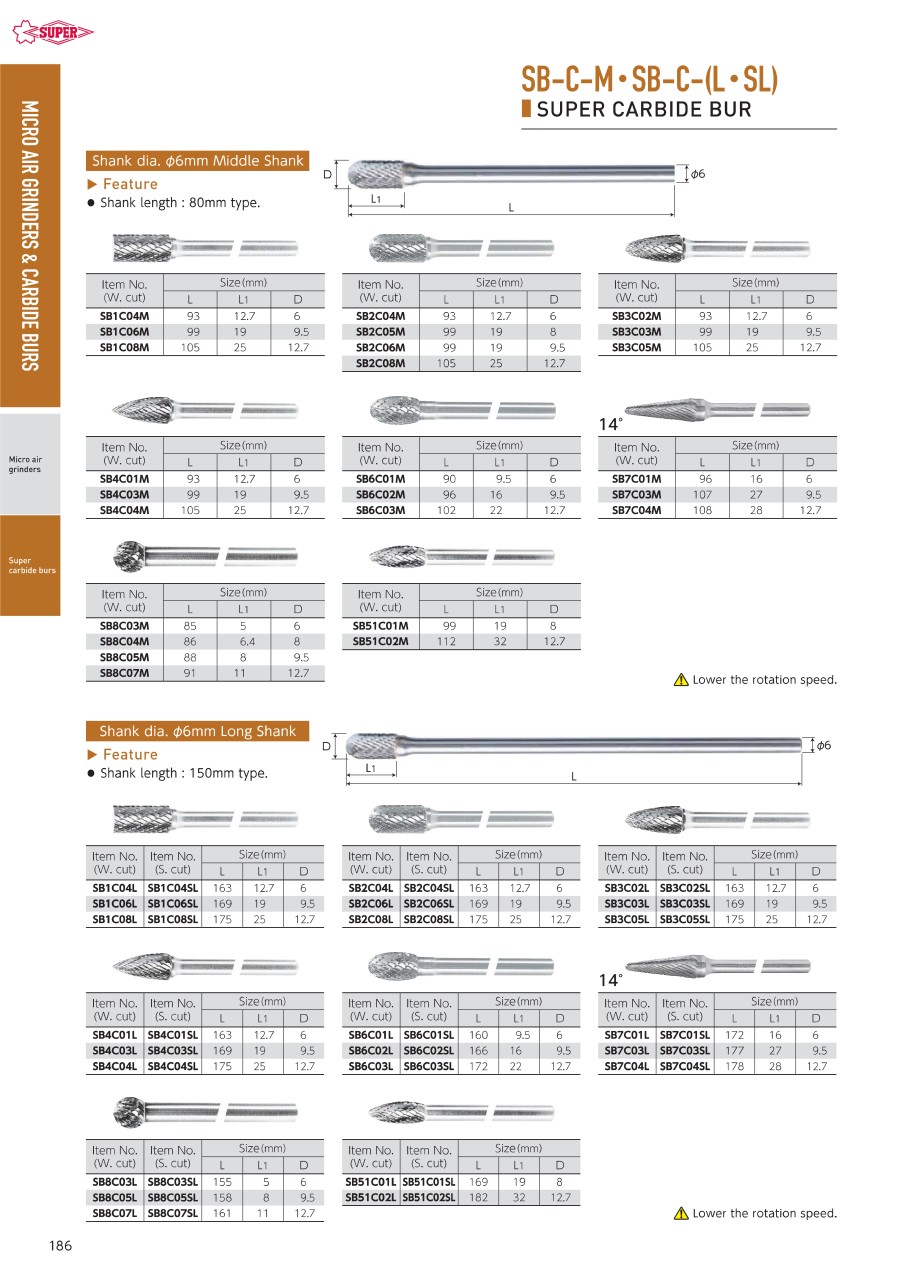

Carbide Bar, Shank φ6 mm, Middle Shank
· The shank length is 80 mm.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SB1C04M |
| SB1C06M |
| SB1C08M |
| SB2C04M |
| SB2C05M |
| SB2C06M |
| SB2C08M |
| SB3C02M |
| SB3C03M |
| SB3C05M |
| SB4C01M |
| SB4C03M |
| SB4C04M |
| SB6C01M |
| SB6C02M |
| SB6C03M |
| SB7C03M |
| SB7C04M |
| SB8C03M |
| SB8C04M |
| SB8C05M |
| SB8C07M |
| SB51C01M |
| SB51C02M |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shape | blade diameter (mm) | Blade Length (mm) | Overall Length (mm) | Angle (°) | |
|---|---|---|---|---|---|---|---|---|---|
44.88 € | 1 | 6 Days | Cylinder type | 6 | 12.7 | 93 | - | ||
58.75 € | 1 | 6 Days | Cylinder type | 9.5 | 19 | 99 | - | ||
91.66 € | 1 | 6 Days | Cylinder type | 12.7 | 25 | 105 | - | ||
48.54 € | 1 | 6 Days | Round tip type cylinder | 6 | 12.7 | 93 | - | ||
65.55 € | 1 | 9 Days | Round tip type cylinder | 8 | 19 | 99 | - | ||
65.58 € | 1 | 6 Days | Round tip type cylinder | 9.5 | 19 | 99 | - | ||
102.85 € | 1 | 6 Days | Round tip type cylinder | 12.7 | 25 | 105 | - | ||
50.56 € | 1 | 6 Days | Rounded wooden tip | 6 | 12.7 | 93 | - | ||
63.74 € | 1 | 6 Days | Rounded wooden tip | 9.5 | 19 | 99 | - | ||
94.23 € | 1 | 6 Days | Rounded wooden tip | 12.7 | 25 | 105 | - | ||
50.56 € | 1 | 6 Days | Tree-shape | 6 | 12.7 | 93 | - | ||
68.08 € | 1 | 6 Days | Tree-shape | 9.5 | 19 | 99 | - | ||
93.04 € | 1 | 6 Days | Tree-shape | 12.7 | 25 | 105 | - | ||
58.14 € | 1 | 10 Days | Oval | 6 | 9.5 | 90 | - | ||
65.53 € | 1 | 6 Days | Oval | 9.5 | 16 | 96 | - | ||
96.41 € | 1 | 6 Days | Oval | 12.7 | 22 | 102 | - | ||
80.38 € | 1 | 6 Days | Cone Rounded Tip Type | 9.5 | 27 | 107 | 14 | ||
106.71 € | 1 | 6 Days | Cone Rounded Tip Type | 12.7 | 28 | 108 | 14 | ||
44.68 € | 1 | 6 Days | Ball Type | 6 | 5 | 85 | - | ||
53.41 € | 1 | 6 Days | Ball Type | 8 | 6.4 | 86 | - | ||
53.49 € | 1 | 6 Days | Ball Type | 9.5 | 8 | 88 | - | ||
72.27 € | 1 | 6 Days | Ball Type | 12.7 | 11 | 91 | - | ||
67.23 € | 1 | 9 Days | Oval | 8 | 19 | 99 | - | ||
136.77 € | 1 | 6 Days | Oval | 12.7 | 32 | 112 | - |
Loading...
Basic information
| Product Type | Shank Diameter 6 mm | shank | Middle Shank | Blade Tip | Double Cut |
|---|
Configure
Basic Attributes
-
Shape
- Cylinder type
- Round tip type cylinder
- Rounded wooden tip
- Tree-shape
- Cone Rounded Tip Type
- Oval
- Ball Type
- Oval
-
blade diameter(mm)
-
Blade Length(mm)
-
Overall Length(mm)
-
Type
- SB1C□M
- SB2C□M
- SB3C□M
- SB4C□M
- SB51C□M
- SB6C□M
- SB7C□M
- SB8C□M
Filter by standard shipping days
-
- All
- 6 Days or Less
- 9 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
