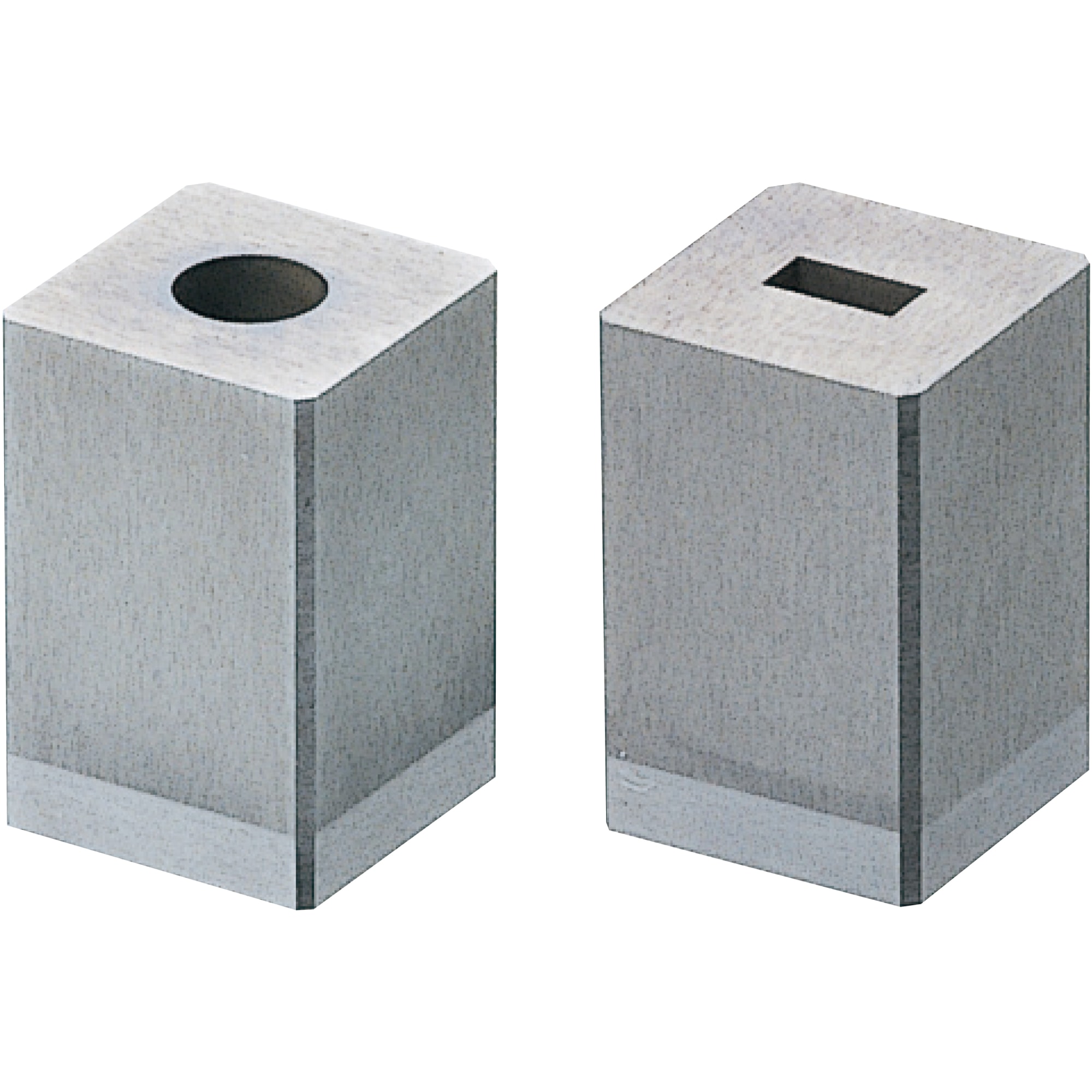

Cutting bushes / rectangular / slug stop / tapered waste hole / configurable / solid carbide

Cutting bushes / rectangular / slug stop / tapered waste hole / configurable / solid carbide

Click on this image to zoom in.

Click on this image to zoom in.

MISUMI

MISUMI

  • PRESS-FIT
  • CARBIDE

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number

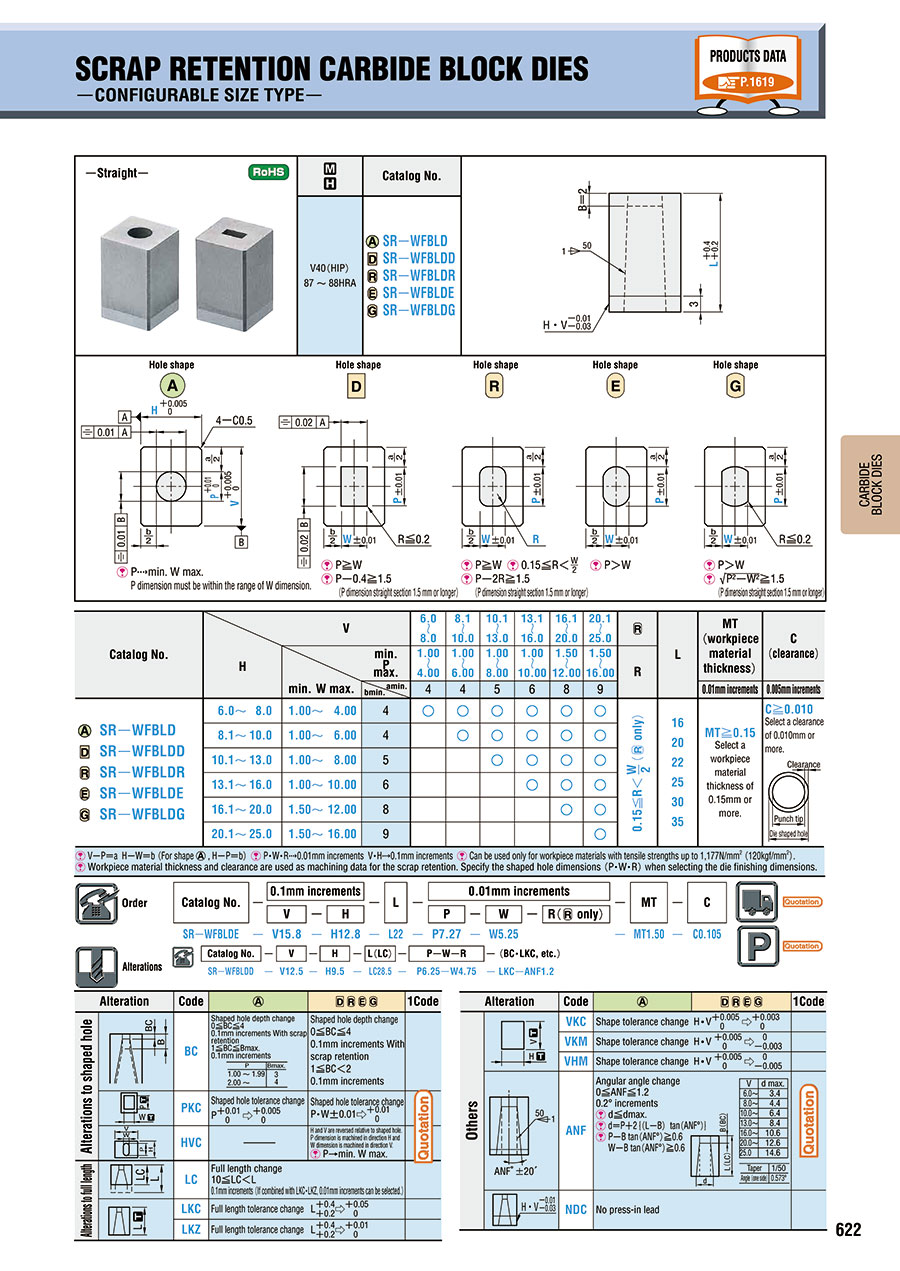

SR-WFBLD-V[6-25/0.1]-H[6-25/0.1]-L[16,​20,​22,​25,​30,​35]-P[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLD-V[6-25/0.1]-H[6-25/0.1]-LC[10-34.9/0.1]-P[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDD-V[6-25/0.1]-H[6-25/0.1]-L[16,​20,​22,​25,​30,​35]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDD-V[6-25/0.1]-H[6-25/0.1]-LC[10-34.9/0.1]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDE-V[6-25/0.1]-H[6-25/0.1]-L[16,​20,​22,​25,​30,​35]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDE-V[6-25/0.1]-H[6-25/0.1]-LC[10-34.9/0.1]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDG-V[6-25/0.1]-H[6-25/0.1]-L[16,​20,​22,​25,​30,​35]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDG-V[6-25/0.1]-H[6-25/0.1]-LC[10-34.9/0.1]-P[1-16/0.01]-W[1-16/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDR-V[6-25/0.1]-H[6-25/0.1]-L[16,​20,​22,​25,​30,​35]-P[1-16/0.01]-W[1-16/0.01]-R[0.15-7.99/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
SR-WFBLDR-V[6-25/0.1]-H[6-25/0.1]-LC[10-34.9/0.1]-P[1-16/0.01]-W[1-16/0.01]-R[0.15-7.99/0.01]-MT[0.15-8/0.01]-C[0.01-1.6/0.005]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSTip shape V (Outer shape)
(mm) 		H (Outer shape)
(mm) 		C (Clearance)
(mm) 		L (L dimension)
(mm) 		LC (Full length alteration)
(mm) 		MT(Workpiece material thickness)
(mm) 		P (Tip dimension)
(mm) 		R (Tip corner R)
(mm) 		W (Tip dimension)
(mm)
1 Quote 10A6 ～ 256 ～ 250.01 ～ 1.616 ～ 35-0.15 ～ 81 ～ 16--
1 Quote 10A6 ～ 256 ～ 250.01 ～ 1.6-10 ～ 34.90.15 ～ 81 ～ 16--
1 Quote 10D6 ～ 256 ～ 250.01 ～ 1.616 ～ 35-0.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10D6 ～ 256 ～ 250.01 ～ 1.6-10 ～ 34.90.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10E6 ～ 256 ～ 250.01 ～ 1.616 ～ 35-0.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10E6 ～ 256 ～ 250.01 ～ 1.6-10 ～ 34.90.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10G6 ～ 256 ～ 250.01 ～ 1.616 ～ 35-0.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10G6 ～ 256 ～ 250.01 ～ 1.6-10 ～ 34.90.15 ～ 81 ～ 16-1 ～ 16
1 Quote 10R6 ～ 256 ～ 250.01 ～ 1.616 ～ 35-0.15 ～ 81 ～ 160.15 ～ 7.991 ～ 16
1 Quote 10R6 ～ 256 ～ 250.01 ～ 1.6-10 ～ 34.90.15 ～ 81 ～ 160.15 ～ 7.991 ～ 16

Loading...

  1. 1


Basic information

Shank type Straight Material Carbide V40 (HIP)

Configure

Clear all

10Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Tip shape

    • A
    • D
    • R
    • E
    • G

    Clear

  • V (Outer shape)(mm)

     [6-25/0.1mm Unit(s)]

    Clear

  • H (Outer shape)(mm)

     [6-25/0.1mm Unit(s)]

    Clear

  • C (Clearance)(mm)

     [0.01-1.6/0.005mm Unit(s)]

    Clear

  • L (L dimension)(mm)

    • 16
    • 20
    • 22
    • 25
    • 30
    • 35

    Clear

  • LC (Full length alteration)(mm)

     [10-34.9/0.1mm Unit(s)]

    Clear

  • MT(Workpiece material thickness)(mm)

     [0.15-8/0.01mm Unit(s)]

    Clear

  • P (Tip dimension)(mm)

     [1-16/0.01mm Unit(s)]

    Clear

  • R (Tip corner R)(mm)

     [0.15-7.99/0.01mm Unit(s)]

    Clear

  • W (Tip dimension)(mm)

     [1-16/0.01mm Unit(s)]

    Clear

  • Type

    • SR-WFBLD
    • SR-WFBLDD
    • SR-WFBLDE
    • SR-WFBLDG
    • SR-WFBLDR

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes

Tech Support

Technical Inquiry

Payment Method

  • Payment on account
  • Pre Payment
  • PayPal

On-Demand Manufacturing

Change View

Certificates

  • ISO-9001
  • ISO-14001
  • AEO Certification
  • RoHS
  • REACH
