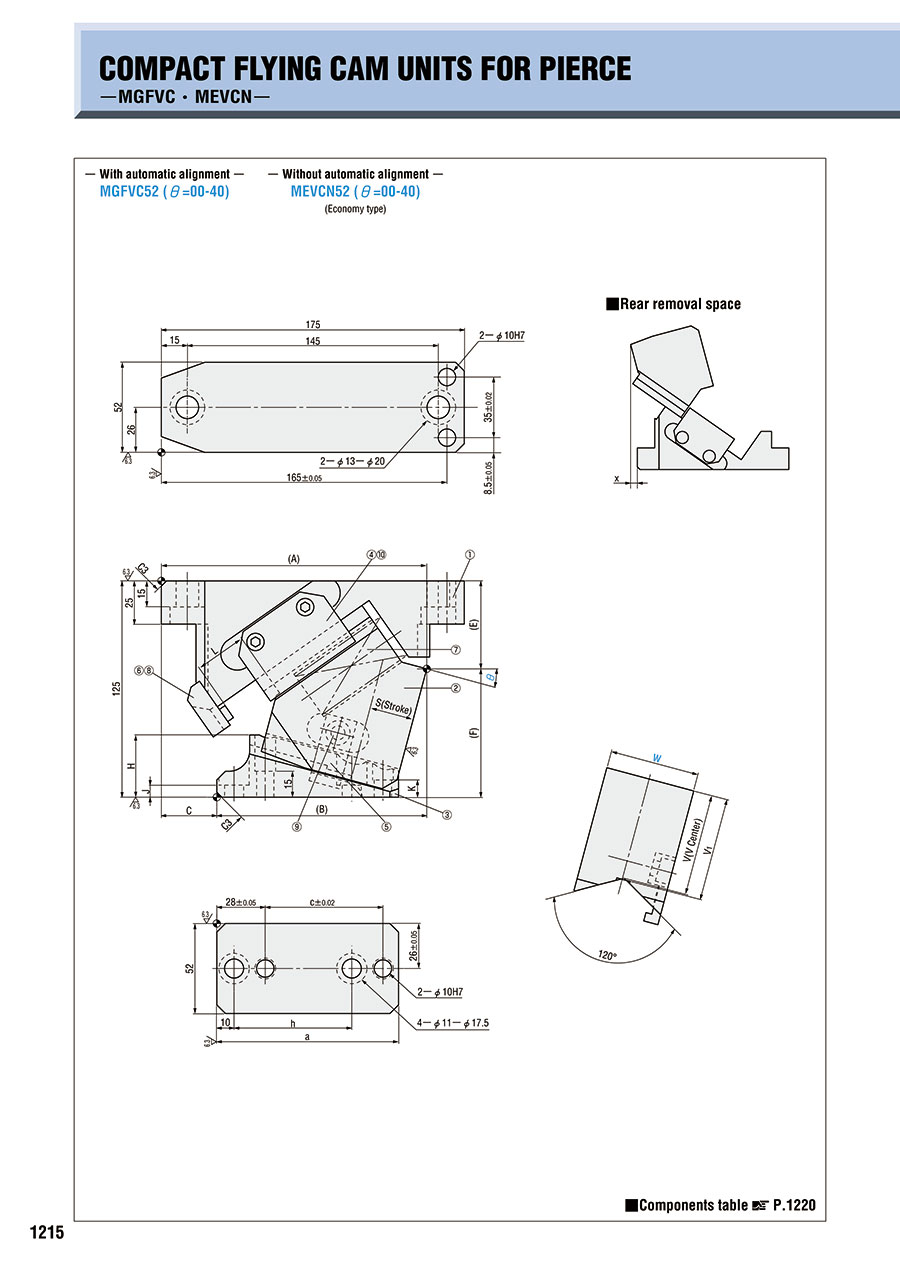

Standard cam units, top hanging for punches / MGFVC52 (stroke angle θ: 00-40)
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| MGFVC52-00 |
| MGFVC52-05 |
| MGFVC52-15 |
| MGFVC52-20 |
| MGFVC52-25 |
| MGFVC52-30 |
| MGFVC52-35 |
| MGFVC52-40 |
| MGFVC52-[0-80/5] |
| MGFVC52-** |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Tilt angle (°) | Alterations | |
|---|---|---|---|---|---|---|
| 1 | Quote | 10 | 0 | Without | ||
| 1 | Quote | 10 | 5 | Without | ||
| 1 | Quote | 10 | 15 | Without | ||
| 1 | Quote | 10 | 20 | Without | ||
| 1 | Quote | 10 | 25 | Without | ||
| 1 | Quote | 10 | 30 | Without | ||
| 1 | Quote | 10 | 35 | Without | ||
| 1 | Quote | 10 | 40 | Without | ||
| 1 | Quote | 10 | - | With | ||
| 1 | Quote | 10 | - | With |
Loading...
Basic information
| Type | High precision / High durability | Cam Types | Compact Type for Piercing | Capacity(tonf) | 3 |
|---|---|---|---|---|---|
| Installation space(mm) | 52 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
