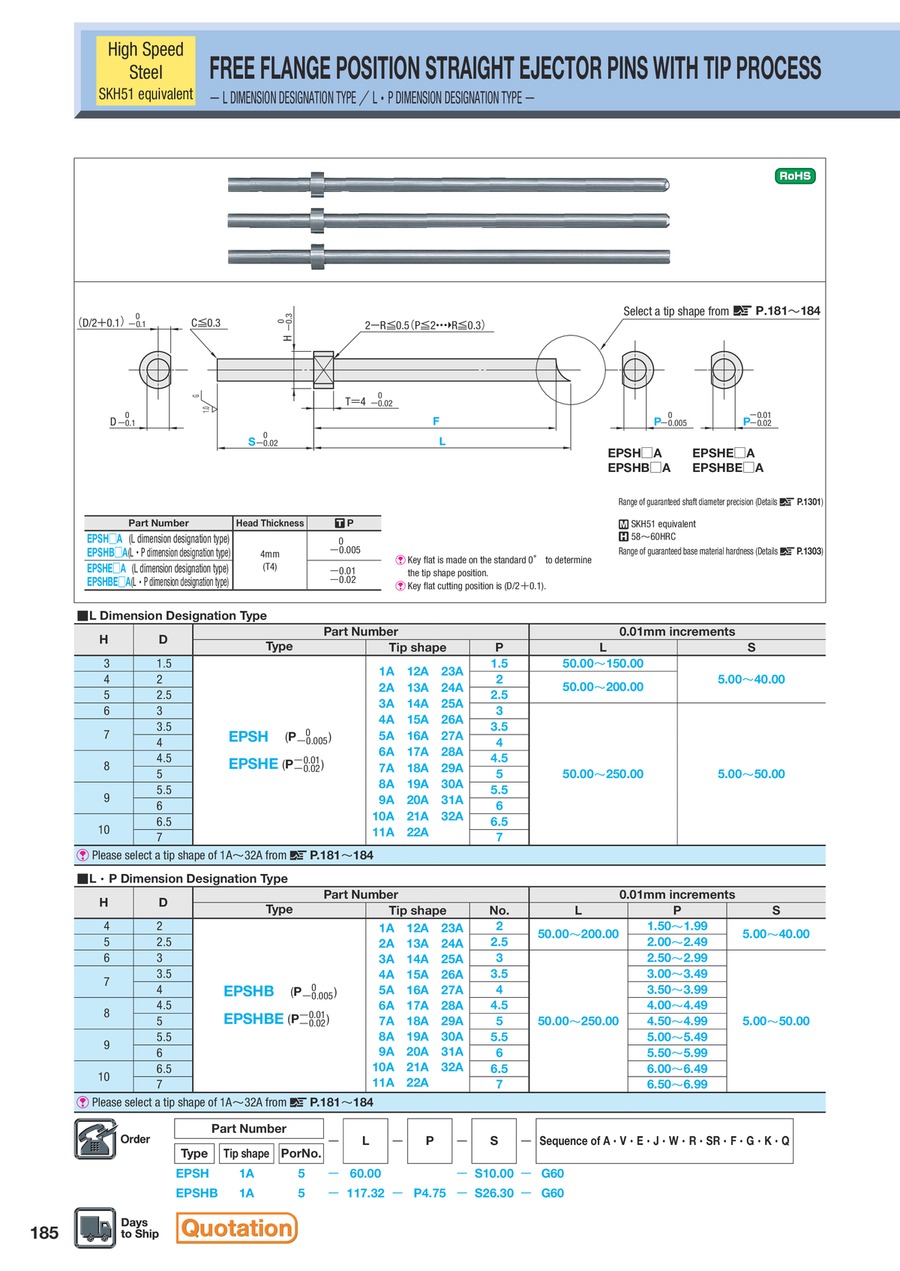

Ejector pins / head flattened on one side / head position selectable / HSS / machined end / shaft diameter, length configurable

Ejector pins / head flattened on one side / head position selectable / HSS / machined end / shaft diameter, length configurable

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
EPSH1A1.5-[50-150/0.01]-S[5-40/0.01]-G[45-89/1]
EPSH1A2-[50-200/0.01]-S[5-40/0.01]-G[45-89/1]
EPSH1A2.5-[50-200/0.01]-S[5-40/0.01]-G[45-89/1]
EPSH1A3-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A3.5-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A4-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A4.5-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A5-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A5.5-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A6-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A6.5-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH1A7-[50-250/0.01]-S[5-50/0.01]-G[45-89/1]
EPSH2A1.5-[50-150/0.01]-S[5-40/0.01]-V1.5-G[45-89/1]
EPSH2A2-[50-200/0.01]-S[5-40/0.01]-V[1.5-1.9/0.1]-G[45-89/1]
EPSH2A2.5-[50-200/0.01]-S[5-40/0.01]-V[1.5-2.4/0.1]-G[45-89/1]
EPSH2A3-[50-250/0.01]-S[5-50/0.01]-V[1.5-2.9/0.1]-G[45-89/1]
EPSH2A3.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-3.4/0.1]-G[45-89/1]
EPSH2A4-[50-250/0.01]-S[5-50/0.01]-V[1.5-3.9/0.1]-G[45-89/1]
EPSH2A4.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-4.4/0.1]-G[45-89/1]
EPSH2A5-[50-250/0.01]-S[5-50/0.01]-V[1.5-4.9/0.1]-G[45-89/1]
EPSH2A5.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-5.4/0.1]-G[45-89/1]
EPSH2A6-[50-250/0.01]-S[5-50/0.01]-V[1.5-5.9/0.1]-G[45-89/1]
EPSH2A6.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-6.4/0.1]-G[45-89/1]
EPSH2A7-[50-250/0.01]-S[5-50/0.01]-V[1.5-6.9/0.1]-G[45-89/1]
EPSH3A1.5-[50-150/0.01]-S[5-40/0.01]-R[1.5-15/0.1]
EPSH3A2-[50-200/0.01]-S[5-40/0.01]-R[2-15/0.1]
EPSH3A2.5-[50-200/0.01]-S[5-40/0.01]-R[2.5-15/0.1]
EPSH3A3-[50-250/0.01]-S[5-50/0.01]-R[3-15/0.1]
EPSH3A3.5-[50-250/0.01]-S[5-50/0.01]-R[3.5-15/0.1]
EPSH3A4-[50-250/0.01]-S[5-50/0.01]-R[4-15/0.1]
EPSH3A4.5-[50-250/0.01]-S[5-50/0.01]-R[4.5-15/0.1]
EPSH3A5-[50-250/0.01]-S[5-50/0.01]-R[5-15/0.1]
EPSH3A5.5-[50-250/0.01]-S[5-50/0.01]-R[5.5-15/0.1]
EPSH3A6-[50-250/0.01]-S[5-50/0.01]-R[6-15/0.1]
EPSH3A6.5-[50-250/0.01]-S[5-50/0.01]-R[6.5-15/0.1]
EPSH3A7-[50-250/0.01]-S[5-50/0.01]-R[7-15/0.1]
EPSH4A1.5-[50-150/0.01]-S[5-40/0.01]-R[1.5-15/0.1]
EPSH4A2-[50-200/0.01]-S[5-40/0.01]-R[2-15/0.1]
EPSH4A2.5-[50-200/0.01]-S[5-40/0.01]-R[2.5-15/0.1]
EPSH4A3-[50-250/0.01]-S[5-50/0.01]-R[3-15/0.1]
EPSH4A3.5-[50-250/0.01]-S[5-50/0.01]-R[3.5-15/0.1]
EPSH4A4-[50-250/0.01]-S[5-50/0.01]-R[4-15/0.1]
EPSH4A4.5-[50-250/0.01]-S[5-50/0.01]-R[4.5-15/0.1]
EPSH4A5-[50-250/0.01]-S[5-50/0.01]-R[5-15/0.1]
EPSH4A5.5-[50-250/0.01]-S[5-50/0.01]-R[5.5-15/0.1]
EPSH4A6-[50-250/0.01]-S[5-50/0.01]-R[6-15/0.1]
EPSH4A6.5-[50-250/0.01]-S[5-50/0.01]-R[6.5-15/0.1]
EPSH4A7-[50-250/0.01]-S[5-50/0.01]-R[7-15/0.1]
EPSH5A1.5-[50-150/0.01]-S[5-40/0.01]-V1.5-F[35-250/0.01]-G[0-45/1]
EPSH5A2-[50-200/0.01]-S[5-40/0.01]-V[1.5-1.9/0.1]-F[35-300/0.01]-G[0-45/1]
EPSH5A2.5-[50-200/0.01]-S[5-40/0.01]-V[1.5-2.4/0.1]-F[35-300/0.01]-G[0-45/1]
EPSH5A3-[50-250/0.01]-S[5-50/0.01]-V[1.5-2.9/0.1]-F[35-300/0.01]-G[0-45/1]
EPSH5A3.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-3.4/0.1]-F[35-300/0.01]-G[0-45/1]
EPSH5A4-[50-250/0.01]-S[5-50/0.01]-V[1.5-3.9/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A4.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-4.4/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A5-[50-250/0.01]-S[5-50/0.01]-V[1.5-4.9/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A5.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-5.4/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A6-[50-250/0.01]-S[5-50/0.01]-V[1.5-5.9/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A6.5-[50-250/0.01]-S[5-50/0.01]-V[1.5-6.4/0.1]-F[35-350/0.01]-G[0-45/1]
EPSH5A7-[50-250/0.01]-S[5-50/0.01]-V[1.5-6.9/0.1]-F[35-350/0.01]-G[0-45/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSTip tolerance (Reference tolerance) P (Tip diameter)
(mm)
Tip shape No. (Nominal diameter)
(mm)
A
(mm)
E
(mm)
F
(mm)
G
(°)
J
(mm)
K
(°)
L (P dimension side length)
(mm)
Q
(mm)
R
(mm)
S (D dimension length)
(mm)
V
(mm)
W
(mm)
1 Quote 100/-0.0051.51A----45 ~ 89--50 ~ 150--5 ~ 40--
1 Quote 100/-0.00521A----45 ~ 89--50 ~ 200--5 ~ 40--
1 Quote 100/-0.0052.51A----45 ~ 89--50 ~ 200--5 ~ 40--
1 Quote 100/-0.00531A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.0053.51A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.00541A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.0054.51A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.00551A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.0055.51A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.00561A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.0056.51A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.00571A----45 ~ 89--50 ~ 250--5 ~ 50--
1 Quote 100/-0.0051.52A----45 ~ 89--50 ~ 150--5 ~ 401.5-
1 Quote 100/-0.00522A----45 ~ 89--50 ~ 200--5 ~ 401.5 ~ 1.9-
1 Quote 100/-0.0052.52A----45 ~ 89--50 ~ 200--5 ~ 401.5 ~ 2.4-
1 Quote 100/-0.00532A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 2.9-
1 Quote 100/-0.0053.52A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 3.4-
1 Quote 100/-0.00542A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 3.9-
1 Quote 100/-0.0054.52A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 4.4-
1 Quote 100/-0.00552A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 4.9-
1 Quote 100/-0.0055.52A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 5.4-
1 Quote 100/-0.00562A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 5.9-
1 Quote 100/-0.0056.52A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 6.4-
1 Quote 100/-0.00572A----45 ~ 89--50 ~ 250--5 ~ 501.5 ~ 6.9-
1 Quote 100/-0.0051.53A-------50 ~ 150-1.5 ~ 155 ~ 40--
1 Quote 100/-0.00523A-------50 ~ 200-2 ~ 155 ~ 40--
1 Quote 100/-0.0052.53A-------50 ~ 200-2.5 ~ 155 ~ 40--
1 Quote 100/-0.00533A-------50 ~ 250-3 ~ 155 ~ 50--
1 Quote 100/-0.0053.53A-------50 ~ 250-3.5 ~ 155 ~ 50--
1 Quote 100/-0.00543A-------50 ~ 250-4 ~ 155 ~ 50--
1 Quote 100/-0.0054.53A-------50 ~ 250-4.5 ~ 155 ~ 50--
1 Quote 100/-0.00553A-------50 ~ 250-5 ~ 155 ~ 50--
1 Quote 100/-0.0055.53A-------50 ~ 250-5.5 ~ 155 ~ 50--
1 Quote 100/-0.00563A-------50 ~ 250-6 ~ 155 ~ 50--
1 Quote 100/-0.0056.53A-------50 ~ 250-6.5 ~ 155 ~ 50--
1 Quote 100/-0.00573A-------50 ~ 250-7 ~ 155 ~ 50--
1 Quote 100/-0.0051.54A-------50 ~ 150-1.5 ~ 155 ~ 40--
1 Quote 100/-0.00524A-------50 ~ 200-2 ~ 155 ~ 40--
1 Quote 100/-0.0052.54A-------50 ~ 200-2.5 ~ 155 ~ 40--
1 Quote 100/-0.00534A-------50 ~ 250-3 ~ 155 ~ 50--
1 Quote 100/-0.0053.54A-------50 ~ 250-3.5 ~ 155 ~ 50--
1 Quote 100/-0.00544A-------50 ~ 250-4 ~ 155 ~ 50--
1 Quote 100/-0.0054.54A-------50 ~ 250-4.5 ~ 155 ~ 50--
1 Quote 100/-0.00554A-------50 ~ 250-5 ~ 155 ~ 50--
1 Quote 100/-0.0055.54A-------50 ~ 250-5.5 ~ 155 ~ 50--
1 Quote 100/-0.00564A-------50 ~ 250-6 ~ 155 ~ 50--
1 Quote 100/-0.0056.54A-------50 ~ 250-6.5 ~ 155 ~ 50--
1 Quote 100/-0.00574A-------50 ~ 250-7 ~ 155 ~ 50--
1 Quote 100/-0.0051.55A---35 ~ 2500 ~ 45--50 ~ 150--5 ~ 401.5-
1 Quote 100/-0.00525A---35 ~ 3000 ~ 45--50 ~ 200--5 ~ 401.5 ~ 1.9-
1 Quote 100/-0.0052.55A---35 ~ 3000 ~ 45--50 ~ 200--5 ~ 401.5 ~ 2.4-
1 Quote 100/-0.00535A---35 ~ 3000 ~ 45--50 ~ 250--5 ~ 501.5 ~ 2.9-
1 Quote 100/-0.0053.55A---35 ~ 3000 ~ 45--50 ~ 250--5 ~ 501.5 ~ 3.4-
1 Quote 100/-0.00545A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 3.9-
1 Quote 100/-0.0054.55A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 4.4-
1 Quote 100/-0.00555A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 4.9-
1 Quote 100/-0.0055.55A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 5.4-
1 Quote 100/-0.00565A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 5.9-
1 Quote 100/-0.0056.55A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 6.4-
1 Quote 100/-0.00575A---35 ~ 3500 ~ 45--50 ~ 250--5 ~ 501.5 ~ 6.9-
