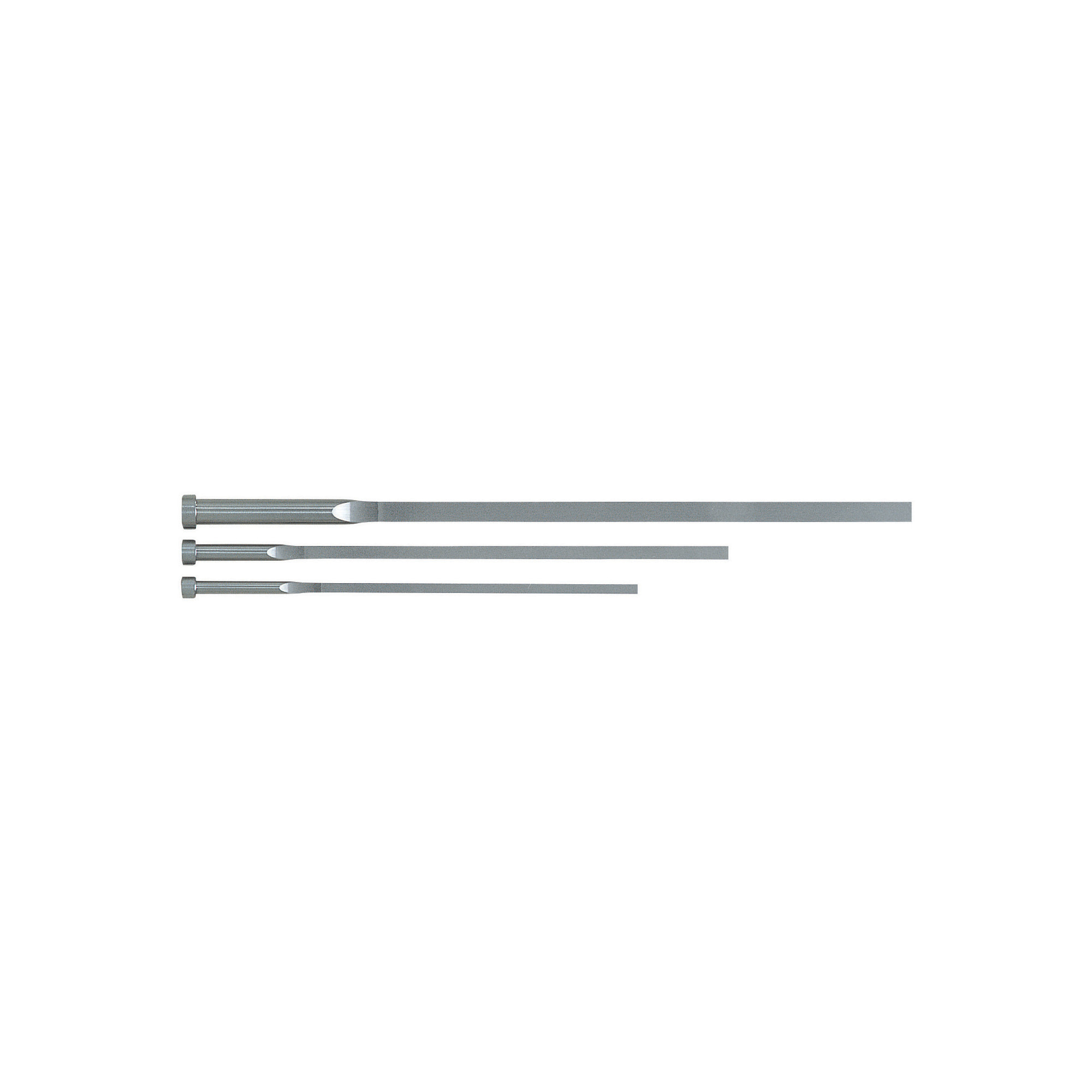

Flat ejector pins / head shape selectable / HSS / dimensions configurable / large version

Flat ejector pins / head shape selectable / HSS / dimensions configurable / large version

Click on this image to zoom in.

Click on this image to zoom in.

MISUMI

MISUMI

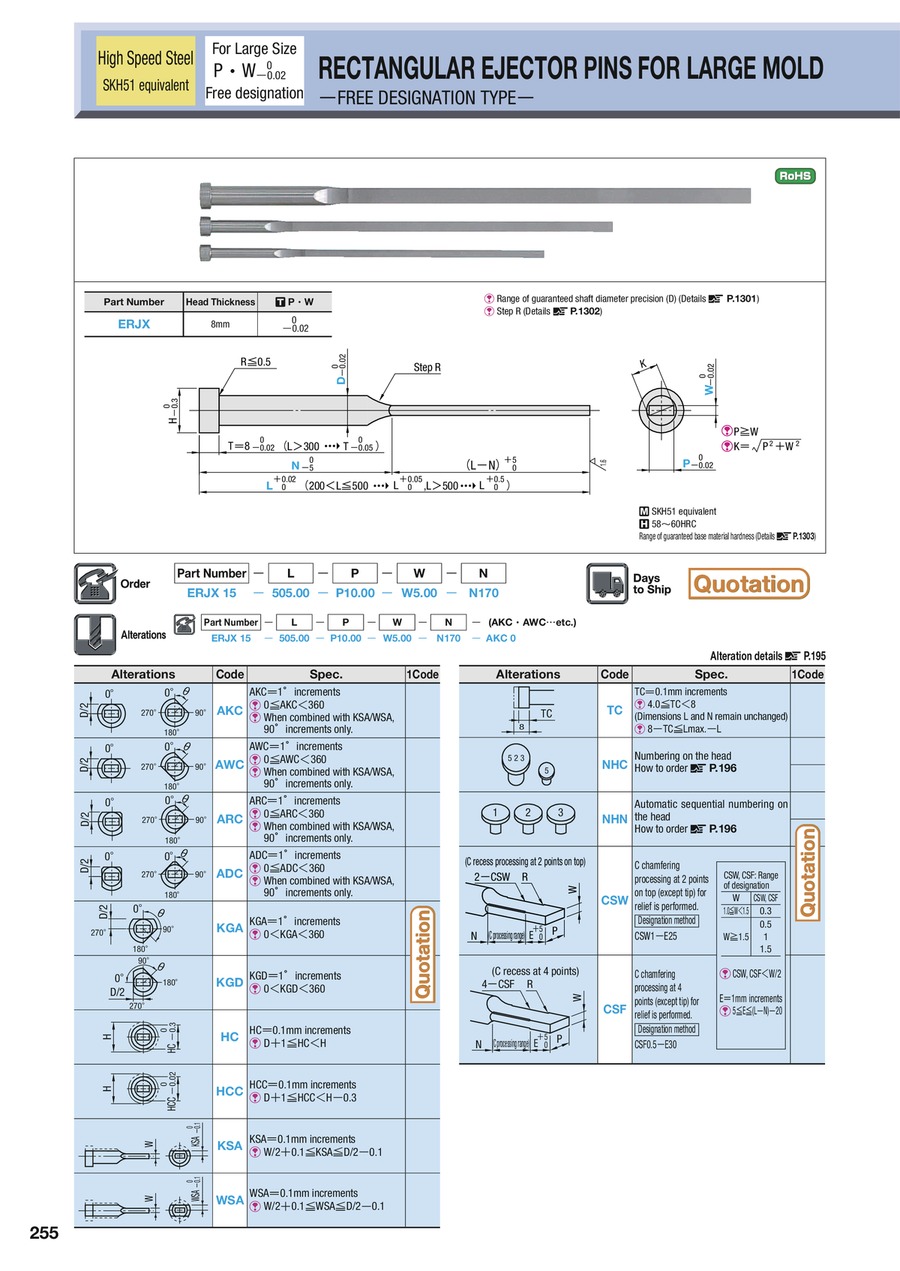

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
ERJX10-[100-500/0.01]-P[5-9.8/0.01]-W[1-9.8/0.01]-N[34-490/1]
ERJX12-[100-600/0.01]-P[6-11.8/0.01]-W[1-11.8/0.01]-N[34-590/1]
ERJX13-[100-600/0.01]-P[6-12.8/0.01]-W[1-12.8/0.01]-N[34-590/1]
ERJX15-[100-600/0.01]-P[8-14.8/0.01]-W[1.5-14.8/0.01]-N[33-590/1]
ERJX16-[100-600/0.01]-P[8-15.8/0.01]-W[1.5-15.8/0.01]-N[33-590/1]
ERJX20-[100-600/0.01]-P[10-19.8/0.01]-W[1.5-19.8/0.01]-N[34-590/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSP (Tip)
(mm) 		W (Tip)
(mm) 		D (Shaft diameter)
(mm) 		L (L dimension)
(mm) 		N
(mm)
1 Quote 105 ～ 9.81 ～ 9.810100 ～ 50034 ～ 490
1 Quote 106 ～ 11.81 ～ 11.812100 ～ 60034 ～ 590
1 Quote 106 ～ 12.81 ～ 12.813100 ～ 60034 ～ 590
1 Quote 108 ～ 14.81.5 ～ 14.815100 ～ 60033 ～ 590
1 Quote 108 ～ 15.81.5 ～ 15.816100 ～ 60033 ～ 590
1 Quote 1010 ～ 19.81.5 ～ 19.820100 ～ 60034 ～ 590

Loading...

  1. 1


Basic information

Material SKH51 P/W dimension tolerance (Reference tolerance) 0/-0.02 Surface treatment No
Head thickness 8mm(JIS) Rectangular treatment No Tip shape No
Character engraving type No Number of engraving characters No R-Chamfered rectangular position No
C-Chamfered position No With/without gas release shape No Shape type Normal
Trimming Normal Technical Standard JIS

Configure

Clear all

6Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • P (Tip)(mm)

     [5-19.8/0.01mm Unit(s)]

    Clear

  • W (Tip)(mm)

     [1-19.8/0.01mm Unit(s)]

    Clear

  • D (Shaft diameter)(mm)

    • 10
    • 12
    • 13
    • 15
    • 16
    • 20

    Clear

  • L (L dimension)(mm)

     [100-600/0.01mm Unit(s)]

    Clear

  • N(mm)

     [33-590/1mm Unit(s)]

    Clear

  • Type

    • ERJX

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes
