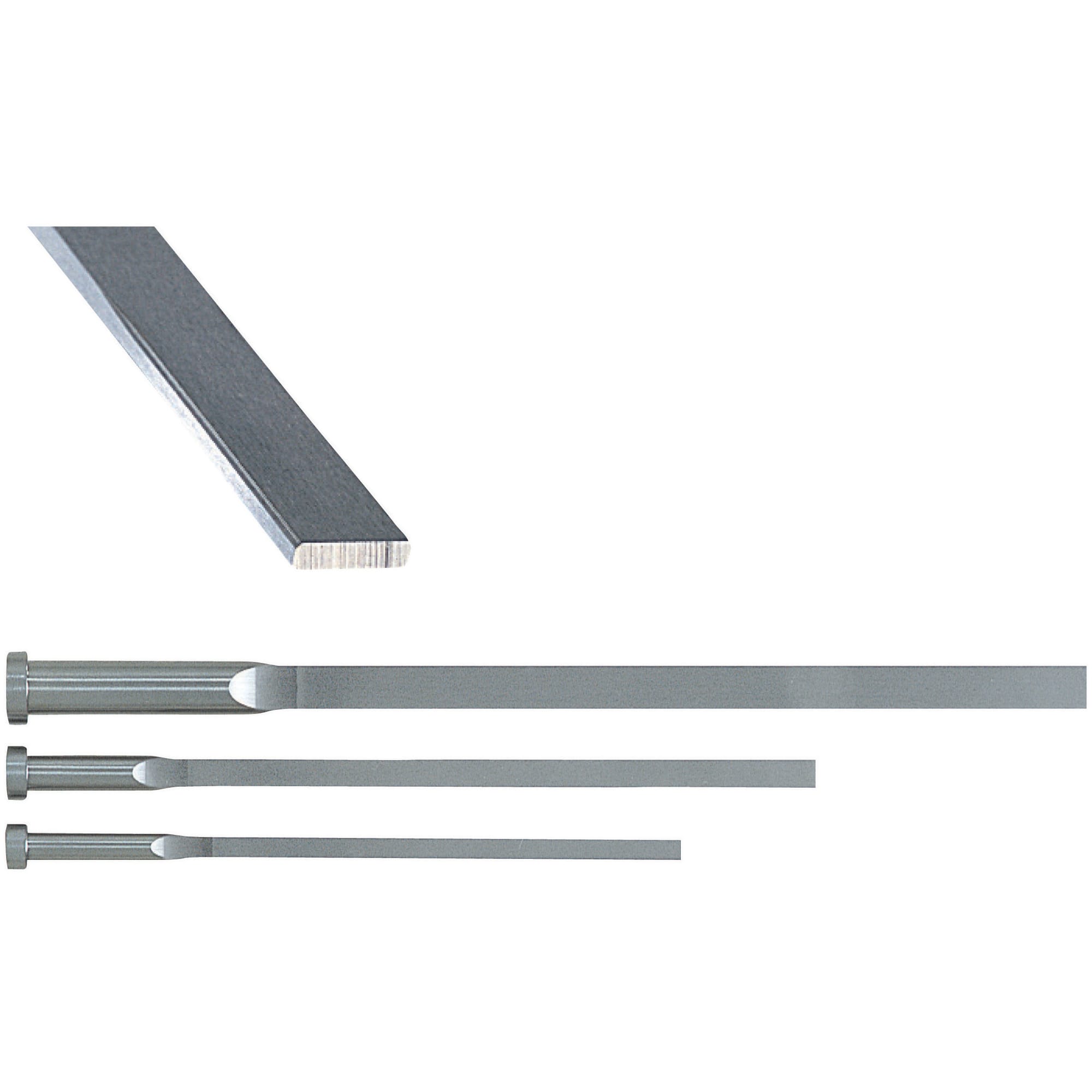

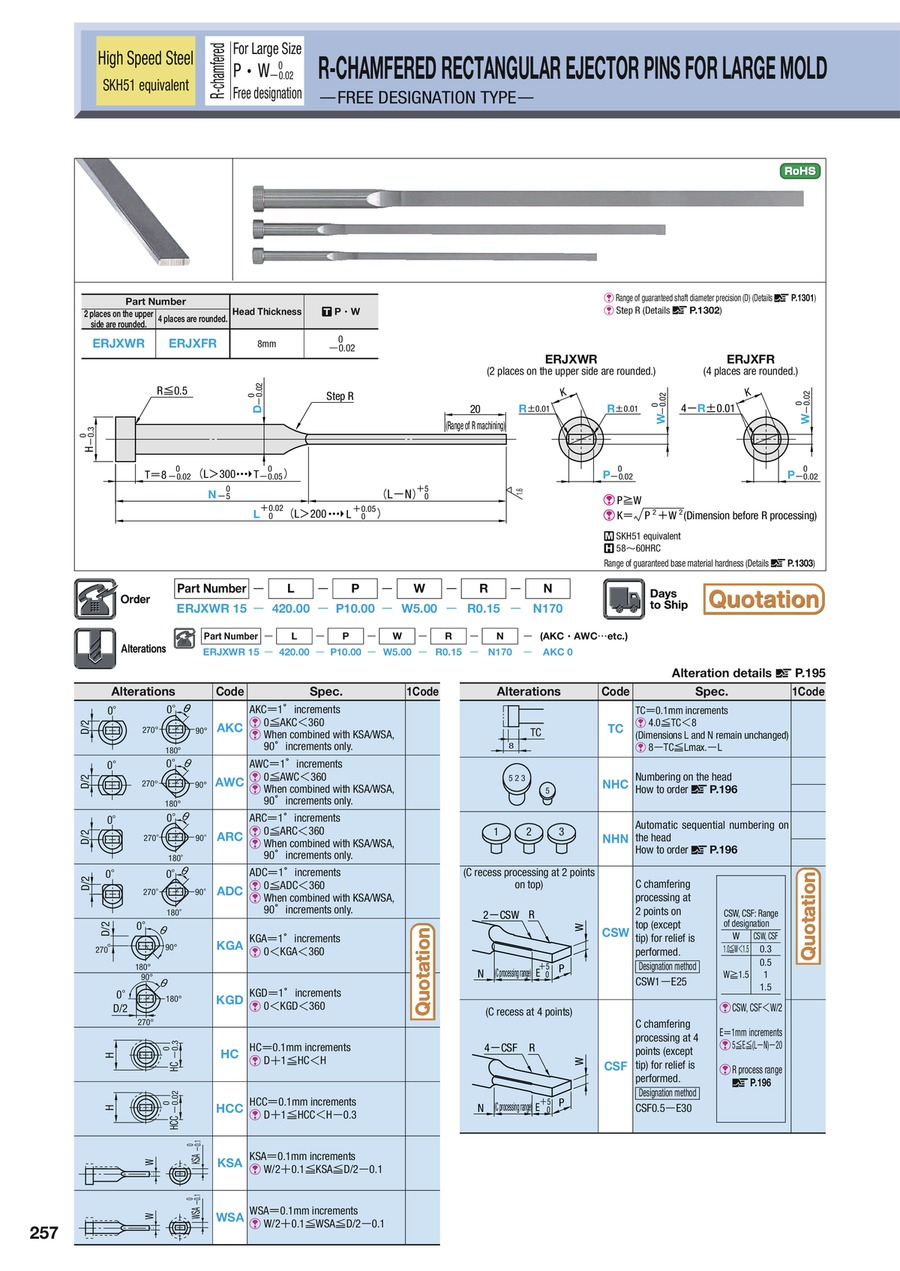

Flat ejector pins / head shape selectable / HSS / corners rounded / dimensions configurable / large version

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
ERJXFR10-[100-450/0.01]-P[5-9.8/0.01]-W[1-9.8/0.01]-R0.1-N[50-440/1]
ERJXFR12-[100-450/0.01]-P[6-11.8/0.01]-W[1-11.8/0.01]-R0.1-N[50-440/1]
ERJXFR13-[100-450/0.01]-P[6-12.8/0.01]-W[1-12.8/0.01]-R0.1-N[50-440/1]
ERJXFR15-[100-450/0.01]-P[8-14.8/0.01]-W[1.5-14.8/0.01]-R0.1-N[50-440/1]
ERJXFR16-[100-450/0.01]-P[8-15.8/0.01]-W[1.5-15.8/0.01]-R0.1-N[50-440/1]
ERJXFR20-[100-450/0.01]-P[10-19.8/0.01]-W[1.5-19.8/0.01]-R0.1-N[55-440/1]
ERJXWR10-[100-450/0.01]-P[5-9.8/0.01]-W[1-9.8/0.01]-R0.1-N[50-440/1]
ERJXWR12-[100-450/0.01]-P[6-11.8/0.01]-W[1-11.8/0.01]-R0.1-N[50-440/1]
ERJXWR13-[100-450/0.01]-P[6-12.8/0.01]-W[1-12.8/0.01]-R0.1-N[50-440/1]
ERJXWR15-[100-450/0.01]-P[8-14.8/0.01]-W[1.5-14.8/0.01]-R0.1-N[50-440/1]
ERJXWR16-[100-450/0.01]-P[8-15.8/0.01]-W[1.5-15.8/0.01]-R0.1-N[50-440/1]
ERJXWR20-[100-450/0.01]-P[10-19.8/0.01]-W[1.5-19.8/0.01]-R0.1-N[55-440/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSP (Tip)
(mm)
W (Tip)
(mm)
D (Shaft diameter)
(mm)
R-Chamfered rectangular position L (L dimension)
(mm)
N
(mm)
R (Corner R of the tip corner)
(mm)
1 Quote 105 ~ 9.81 ~ 9.810FR100 ~ 45050 ~ 4400.1
1 Quote 106 ~ 11.81 ~ 11.812FR100 ~ 45050 ~ 4400.1
1 Quote 106 ~ 12.81 ~ 12.813FR100 ~ 45050 ~ 4400.1
1 Quote 108 ~ 14.81.5 ~ 14.815FR100 ~ 45050 ~ 4400.1
1 Quote 108 ~ 15.81.5 ~ 15.816FR100 ~ 45050 ~ 4400.1
1 Quote 1010 ~ 19.81.5 ~ 19.820FR100 ~ 45055 ~ 4400.1
1 Quote 105 ~ 9.81 ~ 9.810WR100 ~ 45050 ~ 4400.1
1 Quote 106 ~ 11.81 ~ 11.812WR100 ~ 45050 ~ 4400.1
1 Quote 106 ~ 12.81 ~ 12.813WR100 ~ 45050 ~ 4400.1
1 Quote 108 ~ 14.81.5 ~ 14.815WR100 ~ 45050 ~ 4400.1
1 Quote 108 ~ 15.81.5 ~ 15.816WR100 ~ 45050 ~ 4400.1
1 Quote 1010 ~ 19.81.5 ~ 19.820WR100 ~ 45055 ~ 4400.1

Loading...

  1. 1

Basic information

Material SKH51 P/W dimension tolerance (Reference tolerance) 0/-0.02 Surface treatment No
Head thickness 8mm(JIS) Rectangular treatment R-Chamfered rectangular Tip shape No
Character engraving type No Number of engraving characters No C-Chamfered position No
With/without gas release shape No Shape type Normal Trimming Normal
Technical Standard JIS
