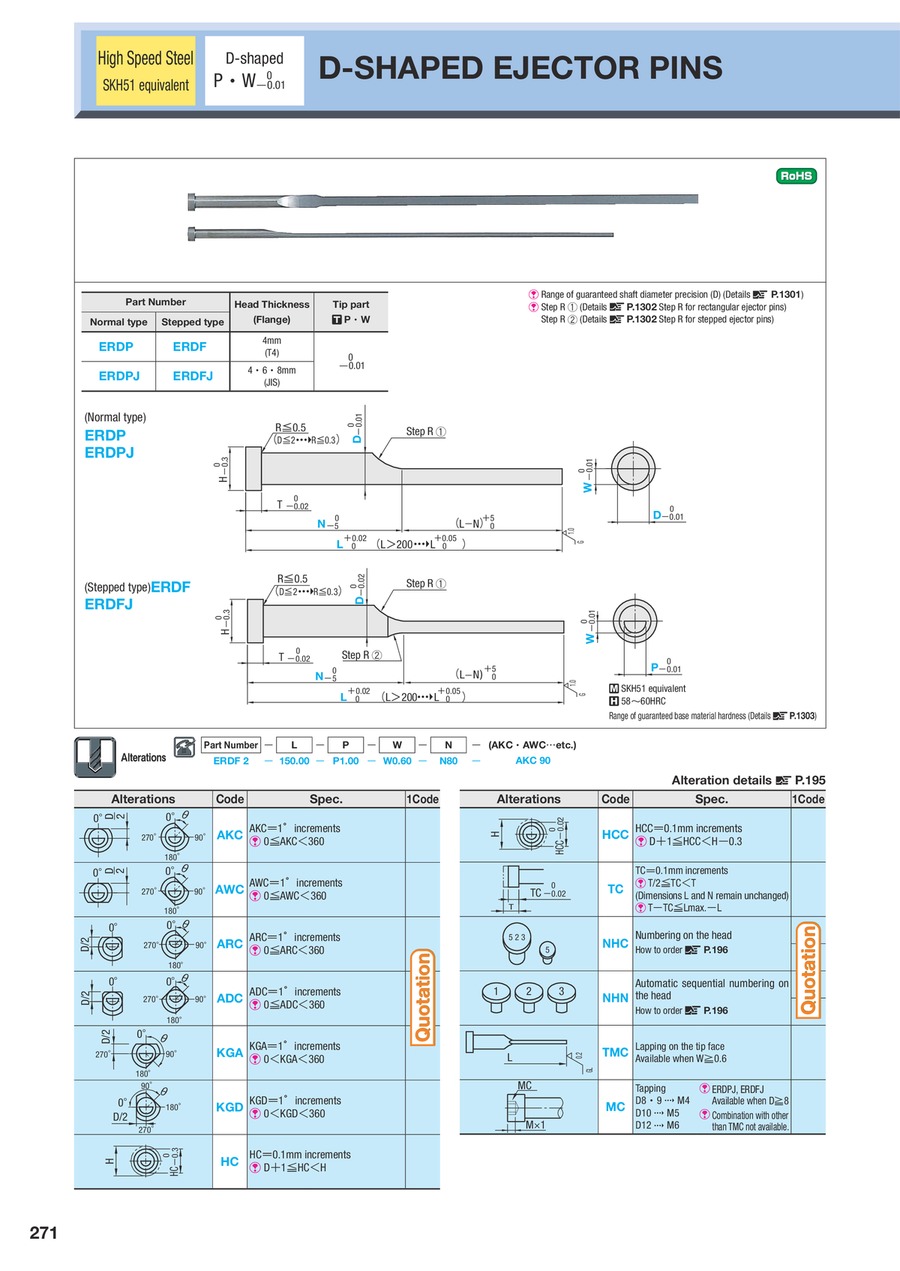

D-Shaped Ejector Pins -High Speed Steel SKH51 / 4mm Head / Normal Type_Stepped Type-

D-Shaped Ejector Pins -High Speed Steel SKH51 / 4mm Head / Normal Type_Stepped Type-

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
ERDF1.5-[50-200/0.01]-P[0.6-1.4/0.01]-W[0.3-1.3/0.01]-N[30-180/1]
ERDF2-[50-250/0.01]-P[0.8-1.9/0.01]-W[0.4-1.8/0.01]-N[30-230/1]
ERDF2.5-[50-250/0.01]-P[0.8-2.4/0.01]-W[0.4-2.3/0.01]-N[30-230/1]
ERDF3-[50-300/0.01]-P[1-2.9/0.01]-W[0.5-2.8/0.01]-N[30-280/1]
ERDF3.5-[50-300/0.01]-P[1.5-3.4/0.01]-W[0.75-3.3/0.01]-N[30-280/1]
ERDF4-[50-300/0.01]-P[2-3.9/0.01]-W[1-3.8/0.01]-N[30-280/1]
ERDF4.5-[50-300/0.01]-P[2.5-4.4/0.01]-W[1.25-4.3/0.01]-N[30-280/1]
ERDF5-[50-350/0.01]-P[3-4.9/0.01]-W[1.5-4.8/0.01]-N[30-340/1]
ERDF5.5-[50-350/0.01]-P[3.5-5.4/0.01]-W[1.75-5.3/0.01]-N[30-340/1]
ERDF6-[50-350/0.01]-P[4-5.9/0.01]-W[2-5.8/0.01]-N[30-340/1]
ERDF6.5-[50-350/0.01]-P[4.5-6.4/0.01]-W[2.25-6.3/0.01]-N[30-340/1]
ERDF7-[50-350/0.01]-P[5-6.9/0.01]-W[2.5-6.8/0.01]-N[30-340/1]
ERDF8-[50-350/0.01]-P[6-7.9/0.01]-W[3-7.8/0.01]-N[30-340/1]
ERDF9-[50-350/0.01]-P[6.9-8.9/0.01]-W[3.45-8.8/0.01]-N[30-330/1]
ERDF10-[50-350/0.01]-P[7.9-9.9/0.01]-W[3.95-9.8/0.01]-N[30-340/1]
ERDF12-[50-350/0.01]-P[8.9-11.9/0.01]-W[4.45-11.8/0.01]-N[30-330/1]
ERDFJ1.5-[50-200/0.01]-P[0.6-1.4/0.01]-W[0.3-1.3/0.01]-N[30-180/1]
ERDFJ2-[50-250/0.01]-P[0.8-1.9/0.01]-W[0.4-1.8/0.01]-N[30-180/1]
ERDFJ2.5-[50-250/0.01]-P[0.8-2.4/0.01]-W[0.4-2.3/0.01]-N[30-180/1]
ERDFJ3-[50-300/0.01]-P[1-2.9/0.01]-W[0.5-2.8/0.01]-N[30-180/1]
ERDFJ3.5-[50-300/0.01]-P[1.5-3.4/0.01]-W[0.75-3.3/0.01]-N[30-180/1]
ERDFJ4-[50-300/0.01]-P[2-3.9/0.01]-W[1-3.8/0.01]-N[30-180/1]
ERDFJ4.5-[50-300/0.01]-P[2.5-4.4/0.01]-W[1.25-4.3/0.01]-N[30-180/1]
ERDFJ5-[50-350/0.01]-P[3-4.9/0.01]-W[1.5-4.8/0.01]-N[30-180/1]
ERDFJ5.5-[50-350/0.01]-P[3.5-5.4/0.01]-W[1.75-5.3/0.01]-N[30-180/1]
ERDFJ6-[50-350/0.01]-P[4-5.9/0.01]-W[2-5.8/0.01]-N[30-180/1]
ERDFJ6.5-[50-350/0.01]-P[4.5-6.4/0.01]-W[2.25-6.3/0.01]-N[30-180/1]
ERDFJ7-[50-350/0.01]-P[5-6.9/0.01]-W[2.5-6.8/0.01]-N[30-180/1]
ERDFJ8-[50-350/0.01]-P[6-7.9/0.01]-W[3-7.8/0.01]-N[30-180/1]
ERDFJ9-[50-350/0.01]-P[6.9-8.9/0.01]-W[3.45-8.8/0.01]-N[30-220/1]
ERDFJ10-[50-350/0.01]-P[7.9-9.9/0.01]-W[3.95-9.8/0.01]-N[30-220/1]
ERDFJ12-[50-350/0.01]-P[8.9-11.9/0.01]-W[4.45-11.8/0.01]-N[30-220/1]
ERDP1.5-[50-200/0.01]-W[0.75-1.4/0.01]-N[30-180/1]
ERDP2-[50-250/0.01]-W[1-1.9/0.01]-N[30-230/1]
ERDP2.5-[50-250/0.01]-W[1.25-2.4/0.01]-N[30-230/1]
ERDP3-[50-300/0.01]-W[1.5-2.9/0.01]-N[30-280/1]
ERDP3.5-[50-300/0.01]-W[1.75-3.4/0.01]-N[30-280/1]
ERDP4-[50-300/0.01]-W[2-3.9/0.01]-N[30-280/1]
ERDP4.5-[50-300/0.01]-W[2.25-4.4/0.01]-N[30-280/1]
ERDP5-[50-350/0.01]-W[2.5-4.9/0.01]-N[30-330/1]
ERDP5.5-[50-350/0.01]-W[2.75-5.4/0.01]-N[30-330/1]
ERDP6-[50-350/0.01]-W[3-5.9/0.01]-N[30-330/1]
ERDP6.5-[50-350/0.01]-W[3.25-6.4/0.01]-N[30-330/1]
ERDP7-[50-350/0.01]-W[3.5-6.9/0.01]-N[30-330/1]
ERDP8-[50-350/0.01]-W[4-7.9/0.01]-N[30-330/1]
ERDP9-[50-350/0.01]-W[4.5-8.9/0.01]-N[30-330/1]
ERDP10-[50-350/0.01]-W[5-9.9/0.01]-N[30-330/1]
ERDP12-[50-350/0.01]-W[6-11.9/0.01]-N[30-330/1]
ERDPJ1.5-[50-200/0.01]-W[0.75-1.4/0.01]-N[30-180/1]
ERDPJ2-[50-250/0.01]-W[1-1.9/0.01]-N[30-230/1]
ERDPJ2.5-[50-250/0.01]-W[1.25-2.4/0.01]-N[30-230/1]
ERDPJ3-[50-300/0.01]-W[1.5-2.9/0.01]-N[30-280/1]
ERDPJ3.5-[50-300/0.01]-W[1.75-3.4/0.01]-N[30-280/1]
ERDPJ4-[50-300/0.01]-W[2-3.9/0.01]-N[30-280/1]
ERDPJ4.5-[50-300/0.01]-W[2.25-4.4/0.01]-N[30-280/1]
ERDPJ5-[50-350/0.01]-W[2.5-4.9/0.01]-N[30-330/1]
ERDPJ5.5-[50-350/0.01]-W[2.75-5.4/0.01]-N[30-330/1]
ERDPJ6-[50-350/0.01]-W[3-5.9/0.01]-N[30-330/1]
ERDPJ6.5-[50-350/0.01]-W[3.25-6.4/0.01]-N[30-330/1]
ERDPJ7-[50-350/0.01]-W[3.5-6.9/0.01]-N[30-330/1]
Part NumberVolume DiscountShipping Days?RoHSHead thickness P (Tip)
(mm)
W (Tip)
(mm)
D (Shaft diameter)
(mm)
Type L (L dimension)
(mm)
N
(mm)
Quote 104mm(T4)0.6 ~ 1.40.3 ~ 1.31.5Step50 ~ 20030 ~ 180
Quote 104mm(T4)0.8 ~ 1.90.4 ~ 1.82Step50 ~ 25030 ~ 230
Quote 104mm(T4)0.8 ~ 2.40.4 ~ 2.32.5Step50 ~ 25030 ~ 230
Quote 104mm(T4)1 ~ 2.90.5 ~ 2.83Step50 ~ 30030 ~ 280
Quote 104mm(T4)1.5 ~ 3.40.75 ~ 3.33.5Step50 ~ 30030 ~ 280
Quote 104mm(T4)2 ~ 3.91 ~ 3.84Step50 ~ 30030 ~ 280
Quote 104mm(T4)2.5 ~ 4.41.25 ~ 4.34.5Step50 ~ 30030 ~ 280
Quote 104mm(T4)3 ~ 4.91.5 ~ 4.85Step50 ~ 35030 ~ 340
Quote 104mm(T4)3.5 ~ 5.41.75 ~ 5.35.5Step50 ~ 35030 ~ 340
Quote 104mm(T4)4 ~ 5.92 ~ 5.86Step50 ~ 35030 ~ 340
Quote 104mm(T4)4.5 ~ 6.42.25 ~ 6.36.5Step50 ~ 35030 ~ 340
Quote 104mm(T4)5 ~ 6.92.5 ~ 6.87Step50 ~ 35030 ~ 340
Quote 104mm(T4)6 ~ 7.93 ~ 7.88Step50 ~ 35030 ~ 340
Quote 104mm(T4)6.9 ~ 8.93.45 ~ 8.89Step50 ~ 35030 ~ 330
Quote 104mm(T4)7.9 ~ 9.93.95 ~ 9.810Step50 ~ 35030 ~ 340
Quote 104mm(T4)8.9 ~ 11.94.45 ~ 11.812Step50 ~ 35030 ~ 330
Quote 104mm(JIS)0.6 ~ 1.40.3 ~ 1.31.5Step50 ~ 20030 ~ 180
Quote 104mm(JIS)0.8 ~ 1.90.4 ~ 1.82Step50 ~ 25030 ~ 180
Quote 104mm(JIS)0.8 ~ 2.40.4 ~ 2.32.5Step50 ~ 25030 ~ 180
Quote 104mm(JIS)1 ~ 2.90.5 ~ 2.83Step50 ~ 30030 ~ 180
Quote 104mm(JIS)1.5 ~ 3.40.75 ~ 3.33.5Step50 ~ 30030 ~ 180
Quote 106mm(JIS)2 ~ 3.91 ~ 3.84Step50 ~ 30030 ~ 180
Quote 106mm(JIS)2.5 ~ 4.41.25 ~ 4.34.5Step50 ~ 30030 ~ 180
Quote 106mm(JIS)3 ~ 4.91.5 ~ 4.85Step50 ~ 35030 ~ 180
Quote 106mm(JIS)3.5 ~ 5.41.75 ~ 5.35.5Step50 ~ 35030 ~ 180
Quote 106mm(JIS)4 ~ 5.92 ~ 5.86Step50 ~ 35030 ~ 180
Quote 106mm(JIS)4.5 ~ 6.42.25 ~ 6.36.5Step50 ~ 35030 ~ 180
Quote 106mm(JIS)5 ~ 6.92.5 ~ 6.87Step50 ~ 35030 ~ 180
Quote 108mm(JIS)6 ~ 7.93 ~ 7.88Step50 ~ 35030 ~ 180
Quote 108mm(JIS)6.9 ~ 8.93.45 ~ 8.89Step50 ~ 35030 ~ 220
Quote 108mm(JIS)7.9 ~ 9.93.95 ~ 9.810Step50 ~ 35030 ~ 220
Quote 108mm(JIS)8.9 ~ 11.94.45 ~ 11.812Step50 ~ 35030 ~ 220
Quote 104mm(T4)-0.75 ~ 1.41.5Normal50 ~ 20030 ~ 180
Quote 104mm(T4)-1 ~ 1.92Normal50 ~ 25030 ~ 230
Quote 104mm(T4)-1.25 ~ 2.42.5Normal50 ~ 25030 ~ 230
Quote 104mm(T4)-1.5 ~ 2.93Normal50 ~ 30030 ~ 280
Quote 104mm(T4)-1.75 ~ 3.43.5Normal50 ~ 30030 ~ 280
Quote 104mm(T4)-2 ~ 3.94Normal50 ~ 30030 ~ 280
Quote 104mm(T4)-2.25 ~ 4.44.5Normal50 ~ 30030 ~ 280
Quote 104mm(T4)-2.5 ~ 4.95Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-2.75 ~ 5.45.5Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-3 ~ 5.96Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-3.25 ~ 6.46.5Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-3.5 ~ 6.97Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-4 ~ 7.98Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-4.5 ~ 8.99Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-5 ~ 9.910Normal50 ~ 35030 ~ 330
Quote 104mm(T4)-6 ~ 11.912Normal50 ~ 35030 ~ 330
Quote 104mm(JIS)-0.75 ~ 1.41.5Normal50 ~ 20030 ~ 180
Quote 104mm(JIS)-1 ~ 1.92Normal50 ~ 25030 ~ 230
Quote 104mm(JIS)-1.25 ~ 2.42.5Normal50 ~ 25030 ~ 230
Quote 104mm(JIS)-1.5 ~ 2.93Normal50 ~ 30030 ~ 280
Quote 104mm(JIS)-1.75 ~ 3.43.5Normal50 ~ 30030 ~ 280
Quote 106mm(JIS)-2 ~ 3.94Normal50 ~ 30030 ~ 280
Quote 106mm(JIS)-2.25 ~ 4.44.5Normal50 ~ 30030 ~ 280
Quote 106mm(JIS)-2.5 ~ 4.95Normal50 ~ 35030 ~ 330
Quote 106mm(JIS)-2.75 ~ 5.45.5Normal50 ~ 35030 ~ 330
Quote 106mm(JIS)-3 ~ 5.96Normal50 ~ 35030 ~ 330
Quote 106mm(JIS)-3.25 ~ 6.46.5Normal50 ~ 35030 ~ 330
Quote 106mm(JIS)-3.5 ~ 6.97Normal50 ~ 35030 ~ 330

Loading...

Basic information

Material SKH51 P/W dimension tolerance (Reference tolerance) 0/-0.01 Surface treatment No
Rectangular treatment No Tip shape No Character engraving type No
Number of engraving characters No R-Chamfered rectangular position No C-Chamfered position No
With/without gas release shape No Shape type D-shaped Trimming Normal
