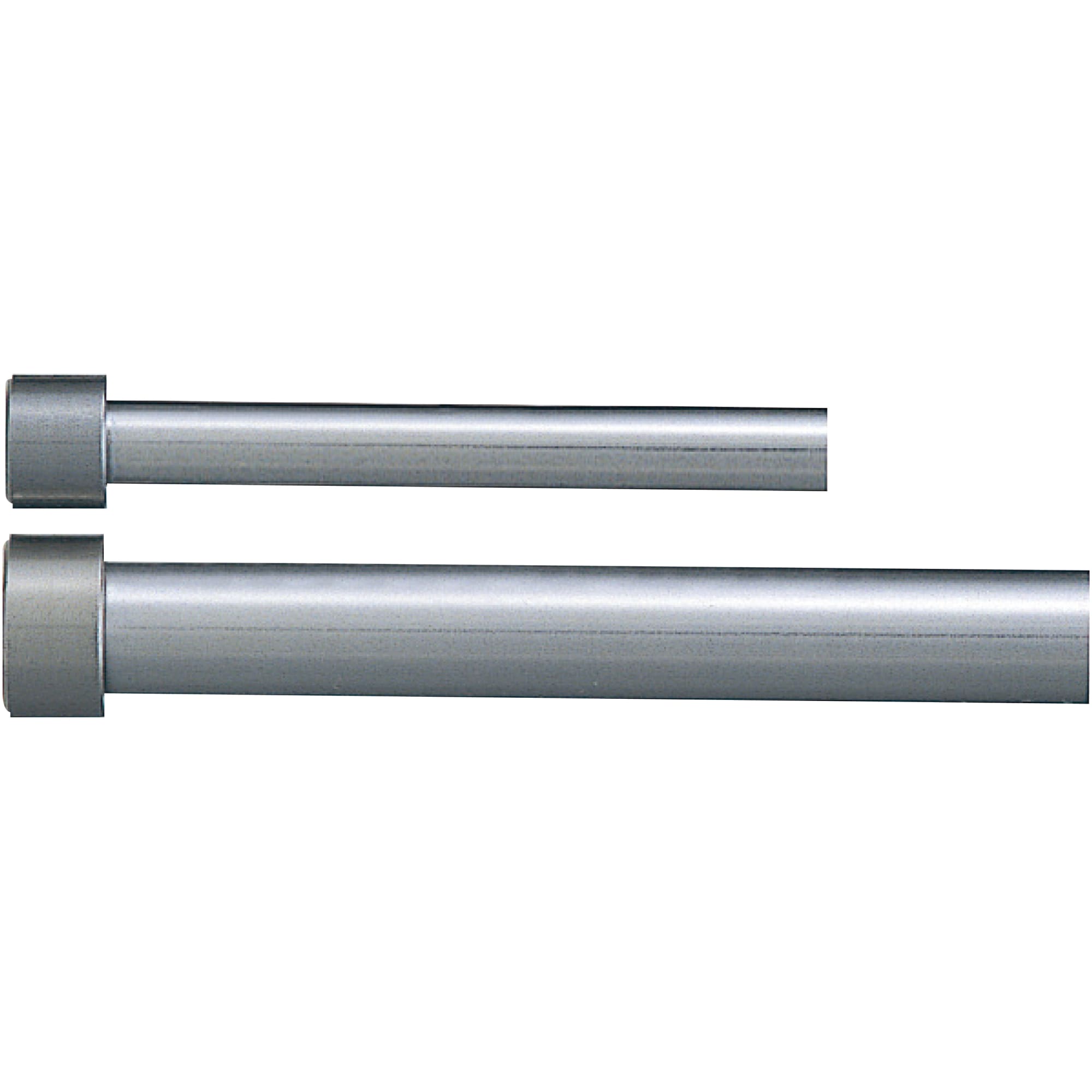

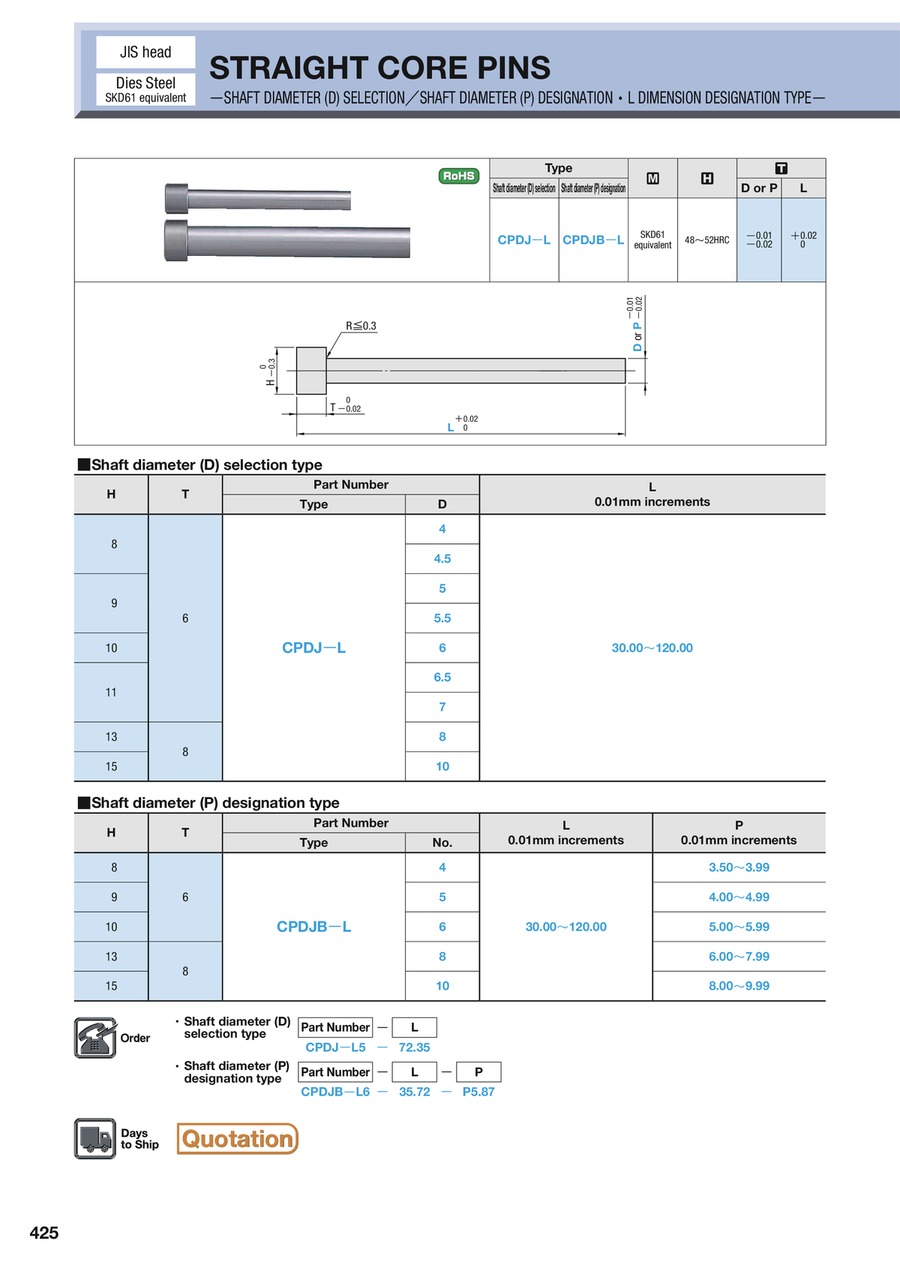

Straight Core Pins -JIS Head / -Shaft Diameter (D) Selection_Shaft Diameter (P) Designation / L Dimension Designation Type-

Straight Core Pins -JIS Head / -Shaft Diameter (D) Selection_Shaft Diameter (P) Designation / L Dimension Designation Type-

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
CPDJ-L4-[30-120/0.01]
CPDJ-L4.5-[30-120/0.01]
CPDJ-L5-[30-120/0.01]
CPDJ-L5.5-[30-120/0.01]
CPDJ-L6-[30-120/0.01]
CPDJ-L6.5-[30-120/0.01]
CPDJ-L7-[30-120/0.01]
CPDJ-L8-[30-120/0.01]
CPDJ-L10-[30-120/0.01]
CPDJB-L4-[30-120/0.01]-P[3.5-3.99/0.01]
CPDJB-L5-[30-120/0.01]-P[4-4.99/0.01]
CPDJB-L6-[30-120/0.01]-P[5-5.99/0.01]
CPDJB-L8-[30-120/0.01]-P[6-7.99/0.01]
CPDJB-L10-[30-120/0.01]-P[8-9.99/0.01]
Part NumberVolume DiscountShipping Days?RoHSHead thickness D/P (Shaft diameter)
(mm)
No. (Nominal diameter)
(mm)
L (L dimension)
(mm)
Quote 106mm(JIS)4-30 ~ 120
Quote 106mm(JIS)4.5-30 ~ 120
Quote 106mm(JIS)5-30 ~ 120
Quote 106mm(JIS)5.5-30 ~ 120
Quote 106mm(JIS)6-30 ~ 120
Quote 106mm(JIS)6.5-30 ~ 120
Quote 106mm(JIS)7-30 ~ 120
Quote 108mm(JIS)8-30 ~ 120
Quote 108mm(JIS)10-30 ~ 120
Quote 106mm(JIS)3.5 ~ 3.99430 ~ 120
Quote 106mm(JIS)4 ~ 4.99530 ~ 120
Quote 106mm(JIS)5 ~ 5.99630 ~ 120
Quote 108mm(JIS)6 ~ 7.99830 ~ 120
Quote 108mm(JIS)8 ~ 9.991030 ~ 120

Loading...

  1. 1

Basic information

Shape type No tip shape Material SKD61 Quenching Hardening steel
Shaft diameter tolerance -0.01/-0.02 L dimension tolerance +0.02/0 Tip shape No
Gas release shape No Character engraving type No Number of engraving characters No
