Pipe Stands / Round Flange / One Bracket(Part number list: 2 page)

Part number:

Still undefined. 154 possible part numbers found.
Quantity:

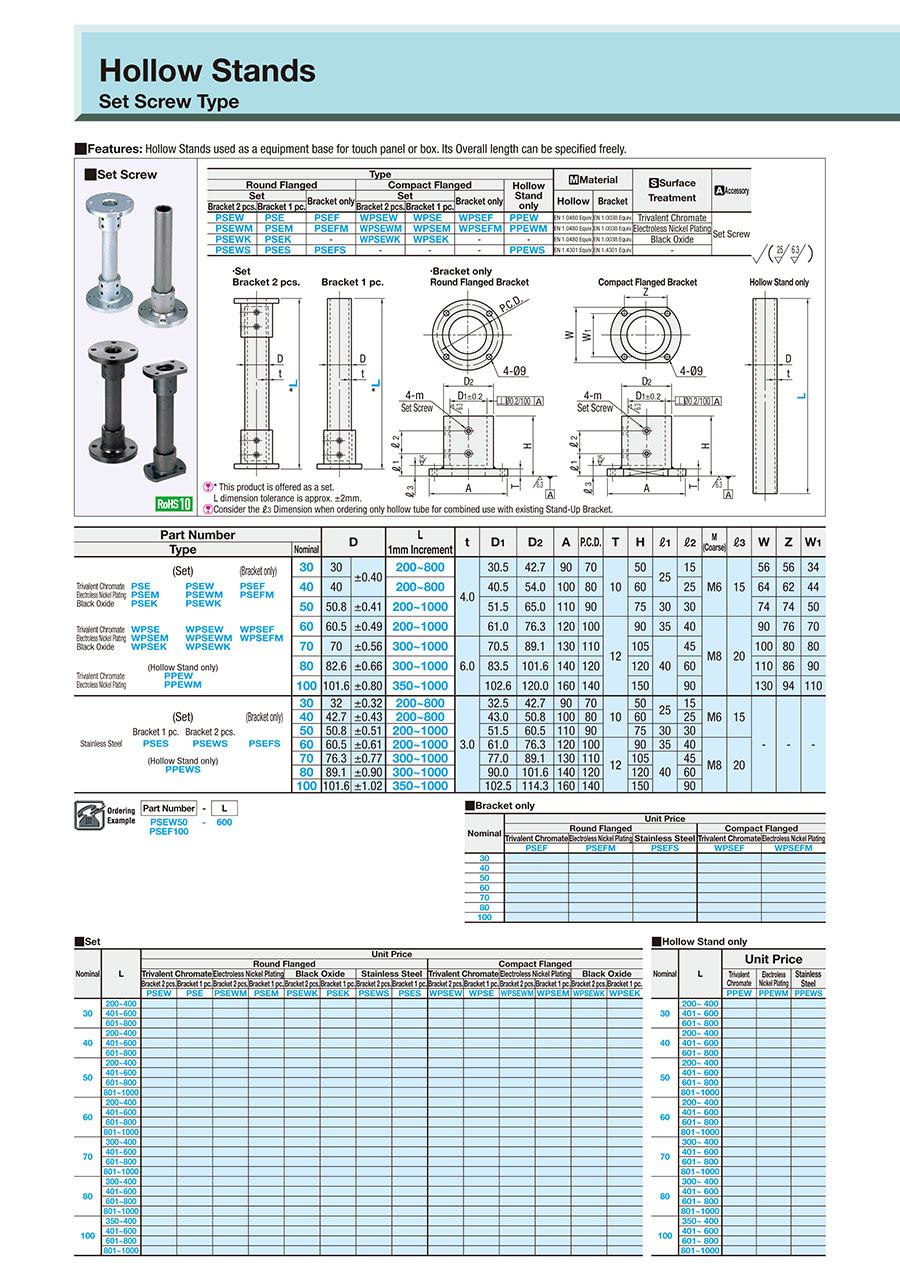

Outline drawing and specifications table

Pipe Stands/Round Flange/One Bracket:Related Image

TypeMaterialSurface TreatmentAccessory
Round FlangedCompact FlangedHollow Stand only
SetBracket onlySetBracket onlyHollowBracket
Bracket 2 pcs.Bracket 1 pc.Bracket 2 pcs.Bracket 1 pc.
PSEWPSEPSEFWPSEWWPSEWPSEFPPEWEN 1.0480 Equiv.EN 1.0038 Equiv.Trivalent ChromateSet Screw
PSEWMPSEMPSEFMWPSEWMWPSEMWPSEFMPPEWMEN 1.0480 Equiv.EN 1.0038 Equiv.Electroless Nickel Plating
PSEWKPSEK-WPSEWKWPSEK--EN 1.0480 Equiv.EN 1.0038 Equiv.Black Oxide
PSEWSPSESPSEFS---PPEWSEN 1.4301 Equiv.EN 1.4301 Equiv.-

Specifications

Part Number-L
PSEW50
PSEF100
-600
Part Number D L
1mm Increment
t D1 D2 A P.C.D. T H 1 2 M (Coarse) 3 W Z W1
Type Nominal
  (Set) (Bracket only)
Trivalent Chromate PSE PSEW PSEF
Electroless Nickel Plating PSEM PSEWM PSEFM
Black Oxide PSEK PSEWK

Trivalent Chromate WPSE WPSEW WPSEF
Electroless Nickel WPSEM WPSEWM WPSEFM
Black Oxide WPSEK WPSEWK
  (Hollow Stand only)
Trivalent Chromate PPEW
Electroless Nickel Plating PPEWM
30 30 ±0.40 200~800 4.0 30.5 42.7 90 70 10 50 25 15 M6 15 56 56 34
40 40 200~800 40.5 54.0 100 80 60 25 64 62 44
50 50.8 ±0.41 200~1000 51.5 65.0 110 90 75 30 30 74 74 50
60 60.5 ±0.49 200~1000 61.0 76.3 120 100 12 90 35 40 M8 20 90 76 70
70 70 ±0.56 300~1000 6.0 70.5 89.1 130 110 105 40 45 100 80 80
80 82.6 ±0.66 300~1000 83.5 101.6 140 120 120 60 110 86 90
100 101.6 ±0.80 350~1000 102.6 120.0 160 140 150 90 130 94 110
  (Set) (Bracket only)
  Bracket 1 pc. Bracket 2 pcs.
Stainless Steel PSES PSEWS PSEFS

  (Hollow Stand only)
  PPEWS
30 32 ±0.32 200~800 3.0 32.5 42.7 90 70 10 50 25 15 M6 15 - - -
40 42.7 ±0.43 200~800 43.0 50.8 100 80 60 25
50 50.8 ±0.51 200~1000 51.5 60.5 110 90 75 30 30
60 60.5 ±0.61 200~1000 61.0 76.3 120 100 12 90 35 40 M8 20
70 76.3 ±0.77 300~1000 77.0 89.1 130 110 105 40 45
80 89.1 ±0.90 300~1000 90.0 101.6 140 120 120 60
100 101.6 ±1.02 350~1000 102.5 114.3 160 140 150 90

Part number list

Number of items

Hollow Material

Bracket Material

Surface Treatment

Sale Type

Nominal (Pipe Dia. D)

Nominal (I.D. D1)

L

(mm)

RoHS?Minimum order quantity
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 1 Bracket
70(70)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 1 Bracket
80(82.6)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 1 Bracket
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
30(32)
-
200 ~ 800
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
40(42.7)
-
200 ~ 800
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
70(76.3)
-
300 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
80(89.1)
-
300 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 1 Bracket
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
30(30)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
40(40)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
70(70)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
80(82.6)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Round Flange, Set, 2 Brackets
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
30(30)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
40(40)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
70(70)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
80(82.6)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Round Flange, Set, 2 Brackets
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
30(30)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
40(40)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
70(70)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
80(82.6)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Electroless Nickel Plating
Round Flange, Set, 2 Brackets
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
30(32)
-
200 ~ 800
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
40(42.7)
-
200 ~ 800
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
70(76.3)
-
300 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
80(89.1)
-
300 ~ 1000
10
1 pieces
EN 1.4301 Equiv.
EN 1.4301 Equiv.
Not Provided
Round Flange, Set, 2 Brackets
100(101.6)
-
350 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
30(30)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
40(40)
-
200 ~ 800
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
50(50.8)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
60(60.5)
-
200 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
70(70)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
80(82.6)
-
300 ~ 1000
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Set, 1 Bracket
100(101.6)
-
350 ~ 1000
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
30(30.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
40(40.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
50(51.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
60(61.0)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
70(70.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
80(83.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Trivalent Chromate
Compact Flange, Bracket Only
-
100(102.6)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
30(30.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
40(40.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
50(51.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
60(61.0)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
70(70.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
80(83.5)
-
10
1 pieces
-
EN 1.0038 Equiv.
Electroless Nickel Plating
Compact Flange, Bracket Only
-
100(102.6)
-
10
1 pieces
EN 1.0480 Equiv.
EN 1.0038 Equiv.
Black Oxide
Compact Flange, Set, 1 Bracket
30(30)
-
200 ~ 800
10
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
27.57 €
( 32.81 € )
7 working days
32.00 €
( 38.08 € )
7 working days
36.82 €
( 43.82 € )
7 working days
44.40 €
( 52.84 € )
7 working days
56.95 €
( 67.77 € )
7 working days
66.44 €
( 79.06 € )
7 working days
84.90 €
( 101.03 € )
7 working days
32.38 €
( 38.53 € )
7 working days
37.33 €
( 44.42 € )
7 working days
42.52 €
( 50.60 € )
7 working days
51.00 €
( 60.69 € )
7 working days
67.05 €
( 79.79 € )
7 working days
83.63 €
( 99.52 € )
7 working days
111.71 €
( 132.93 € )
7 working days
-
( - )
7 working days

More Information
