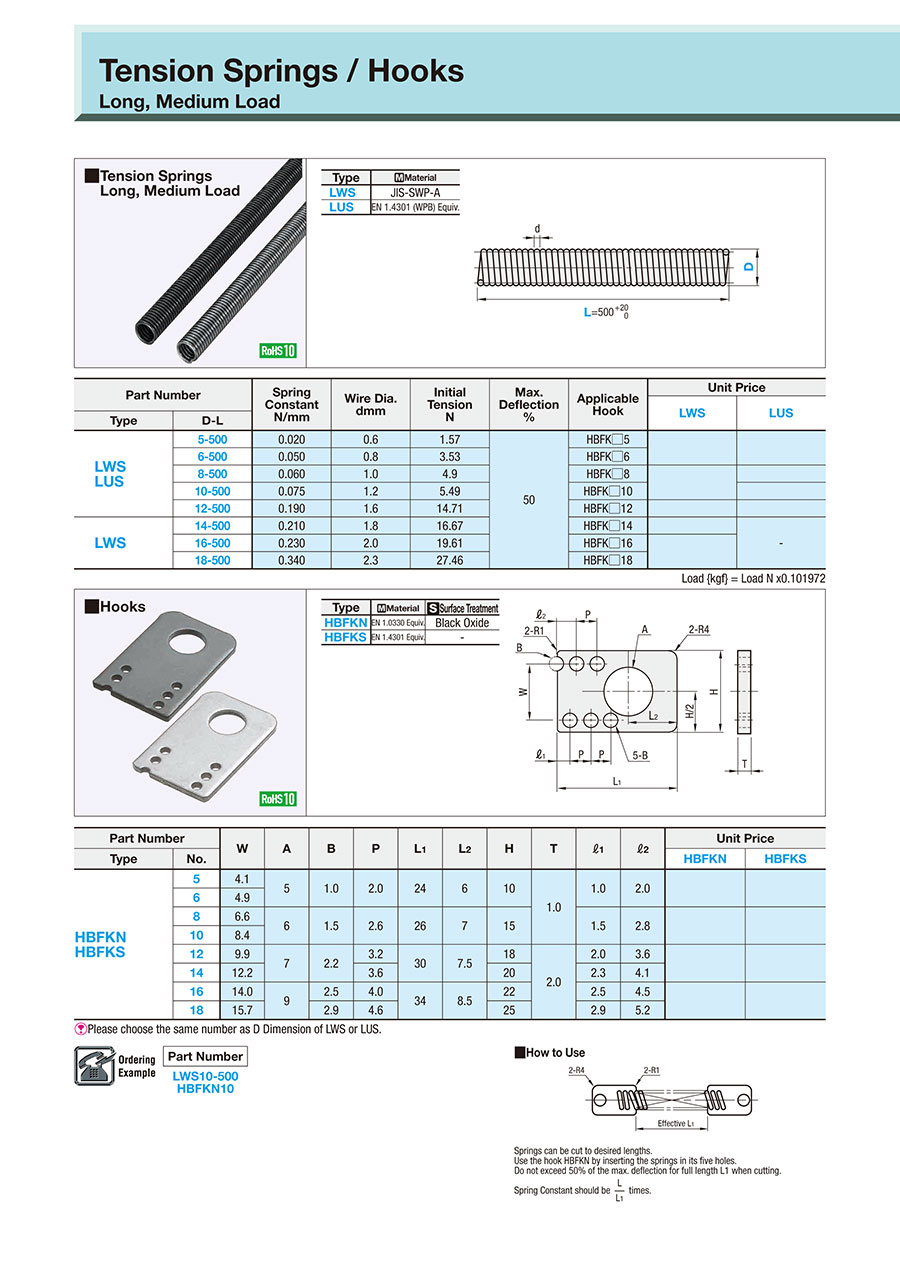

Hook Plate for Long Tension Springs
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material | Surface Treatment |
| HBFKN | EN 1.0330 Equiv. | Black Oxide |
| HBFKS | EN 1.4301 Equiv. | - |
Specifications
| Part Number |
| LWS10-500 HBFKN10 |
| Part Number | W | A | B | P | L1 | L2 | H | T | ℓ1 | ℓ2 | Unit Price | ||
| Type | No. | HBFKN | HBFKS | ||||||||||
| HBFKN HBFKS | 5 | 4.1 | 5 | 1.0 | 2.0 | 24 | 6 | 10 | 1.0 | 1.0 | 2.0 | ||
| 6 | 4.9 | ||||||||||||
| 8 | 6.6 | 6 | 1.5 | 2.6 | 26 | 7 | 15 | 1.5 | 2.8 | ||||
| 10 | 8.4 | ||||||||||||
| 12 | 9.9 | 7 | 2.2 | 3.2 | 30 | 7.5 | 18 | 2.0 | 2.0 | 3.6 | |||
| 14 | 12.2 | 3.6 | 20 | 2.3 | 4.1 | ||||||||
| 16 | 14.0 | 9 | 2.5 | 4.0 | 34 | 8.5 | 22 | 2.5 | 4.5 | ||||
| 18 | 15.7 | 2.9 | 4.6 | 25 | 2.9 | 5.2 | |||||||
