Low Pressure Fittings / Union

Low Pressure Fittings / Union

Click on this image to zoom in.

Click on this image to zoom in.

  • Low Pressure Fittings / Union
  • Low Pressure Fittings / Union
  • Volume Discount
[Type of connection] Thread to thread, same diameter / same type; Type of connection: Screw connection; Material/Surface treatment: EN-JM 1010 Equiv. with hot dip galvanising, or EN 1.4308 Equiv. without treatment.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

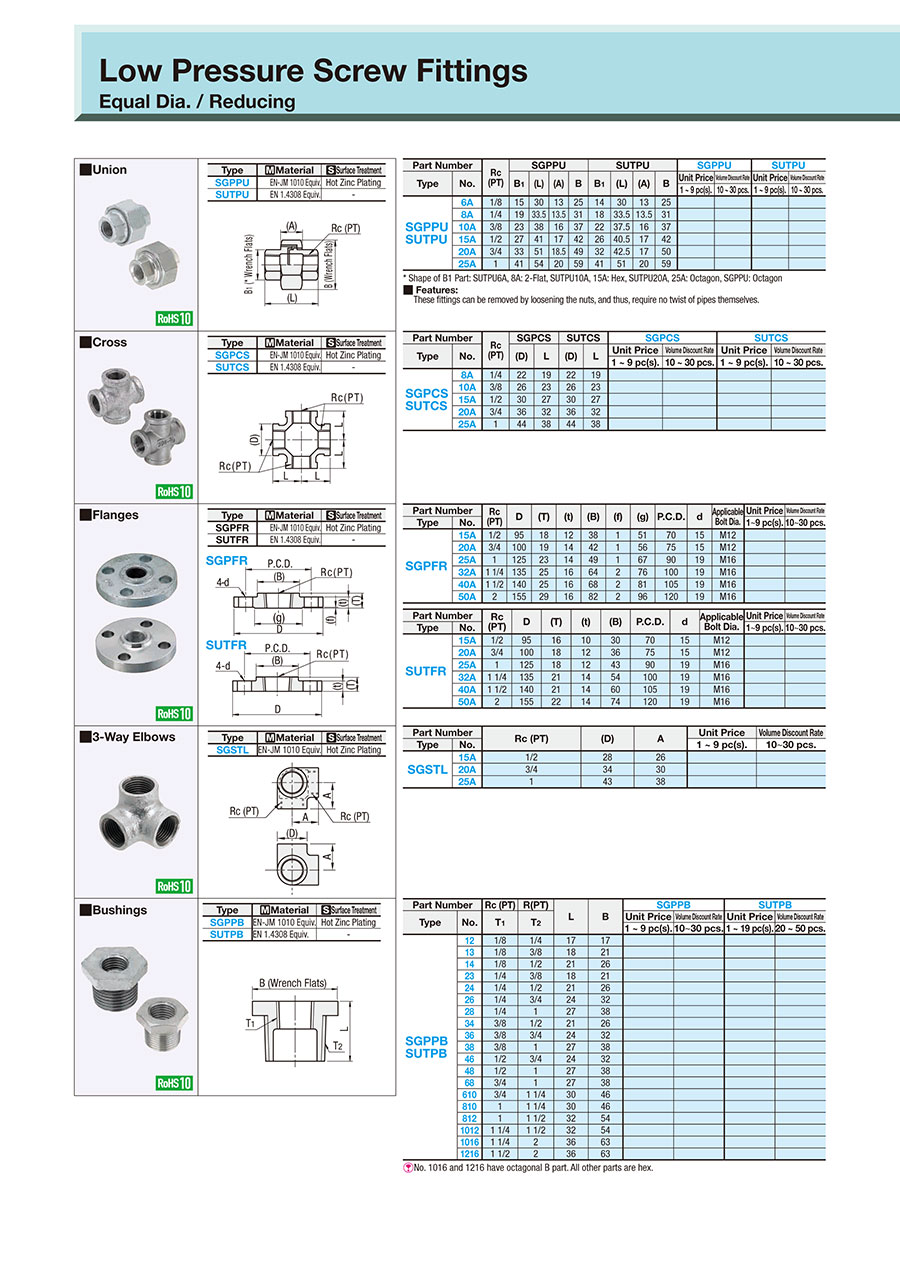

Low Pressure Fittings/Union:Related Image

Type Material Surface Treatment
SGPPUEN-JM 1010 Equiv.Hot Zinc Plating
SUTPUEN 1.4308 Equiv.-

Specifications

Part Number
SGPSD12
Part NumberRc (PT)SGPPUSUTPUSGPPUSUTPU
TypeNo.B1(L)(A)BB1(L)(A)BUnit PriceVolume Discount RateUnit PriceVolume Discount Rate
1 ~ 9 pc(s).10 ~ 30 pcs.1 ~ 9 pc(s).10 ~ 30 pcs.
SGPPU
SUTPU
6A1/81530132514301325
8A1/41933.513.5311833.513.531
10A3/8233816372237.51637
15A1/2274117422640.51742
20A3/4335118.5493242.51750
25A14154205941512059
* Shape of B1 Part: SUTPU6A, 8A: 2-Flat, SUTPU10A, 15A: Hex, SUTPU20A, 25A: Octagon, SGPPU: Octagon

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
SGPPU6A
SGPPU8A
SGPPU10A
SGPPU15A
SGPPU20A
SGPPU25A
SUTPU6A
SUTPU8A
SUTPU10A
SUTPU15A
SUTPU20A
SUTPU25A
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMaterial Screw Nominal T1 Applicable Fluid Surface Treatment

9.66 €

1 Available 5 Days -[Steel] EN-JM 1010 Equiv.1/8B(6A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

5.49 €

1 Available 5 Days -[Steel] EN-JM 1010 Equiv.1/4B(8A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

5.49 €

1 Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.3/8B(10A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

4.89 €

1 Available 5 Days -[Steel] EN-JM 1010 Equiv.1/2B(15A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

5.87 €

1 Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.3/4B(20A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

8.07 €

1 Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.1B(25A)Pulsating Water, Static Flow Water / Air / Steam / Gas / OilHot Zinc Plating

9.05 €

1 Available 6 Days 10[Stainless Steel] EN 1.4308 Equiv.1/8B(6A)-Not Provided

8.00 €

1 Available 6 Days 10[Stainless Steel] EN 1.4308 Equiv.1/4B(8A)-Not Provided

8.28 €

1 Available Same day

Stock

10[Stainless Steel] EN 1.4308 Equiv.3/8B(10A)-Not Provided

9.33 €

1 Available 6 Days 10[Stainless Steel] EN 1.4308 Equiv.1/2B(15A)-Not Provided

12.22 €

1 Available 6 Days 10[Stainless Steel] EN 1.4308 Equiv.3/4B(20A)-Not Provided

15.49 €

1 Available 6 Days 10[Stainless Steel] EN 1.4308 Equiv.1B(25A)-Not Provided

Loading...

  1. 1

More Information

 ■  Features:
These fittings can be removed by loosening the nuts, and thus, require no twist of pipes themselves.
Operating Conditions of Fittings
Fluid StateMax. Operating Pressure (Mpa)
Steam, Air, Gas, Oil: Up to 300°C1.0
Steam, Air, Oil, Pulsating Water: Up to 200°C1.4
Static Flow Water: Up to 120°C2.0
*Pulsating Water is a stream of water that is generated under steady operating conditions and variation of pressure and flow rate occurs in cycles. (Except for transitional change)
* Static Flow Water is a non-pulsating stream of water.
* As fittings are cast products, ( ) dimensions such as (D) and (T) are for reference, not guaranteed.

Basic information

Type Fitting Connection Type Thread-to-Thread, Equal Diameter / Same Type Connecting Shape Union
Connecting Thread Type (1) Rc Max. Operating Pressure(MPa) 2
