Switch Flags / Setscrew / One Ends Cone with Thru Hole

Switch Flags / Setscrew / One Ends Cone with Thru Hole

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

MISUMI

MISUMI

[Features] Position detection is possible when used together with a limit switch.

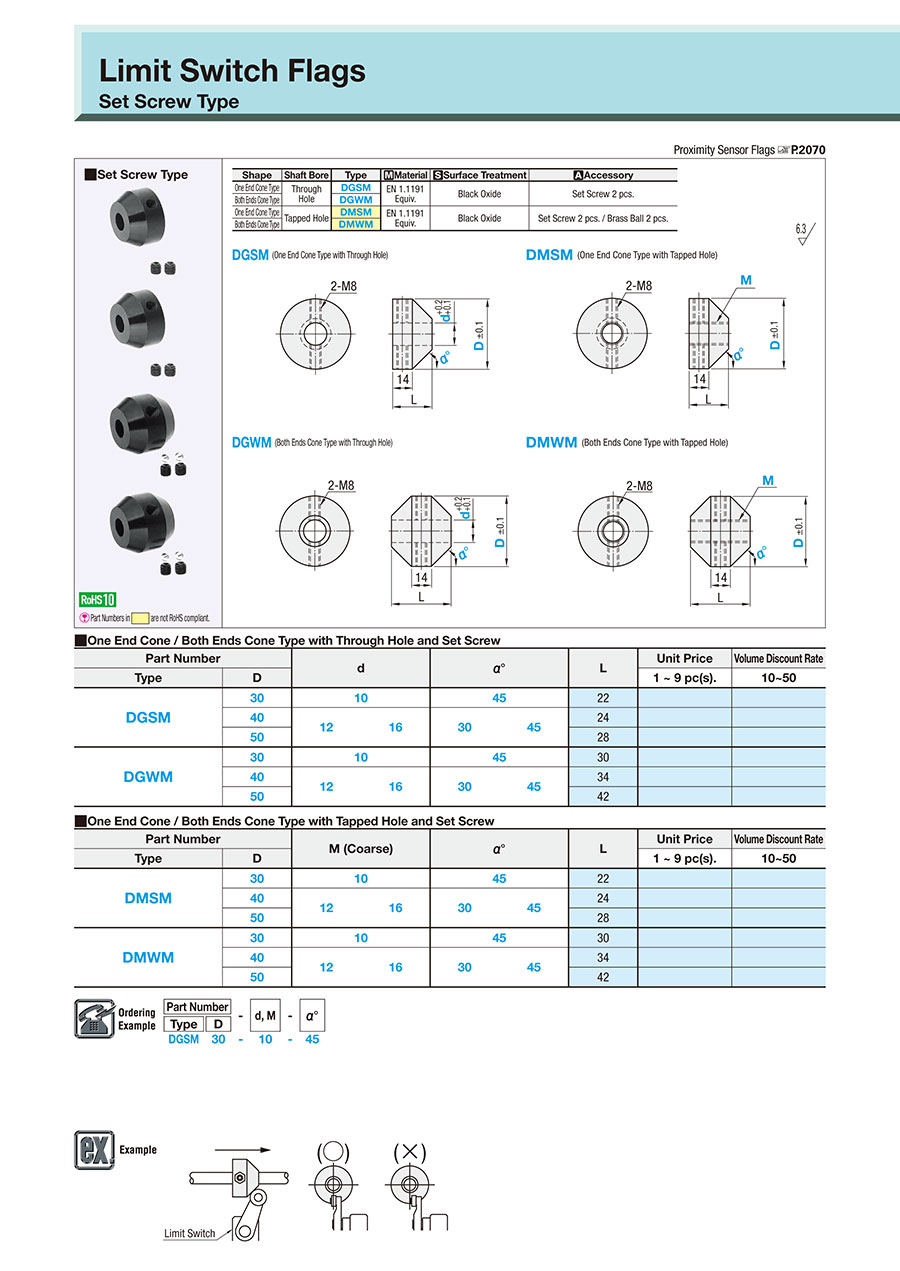

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Switch Flags/Setscrew/One Ends Cone with Thru Hole:Related Image

ShapeShaft BoreTypeMaterialSurface TreatmentAccessory
One End Cone TypeThrough HoleDGSMEN 1.1191 Equiv.Black OxideSet Screw 2 pcs.
Both Ends Cone TypeDGWM
One End Cone TypeTapped HoleDMSMEN 1.1191 Equiv.Black OxideSet Screw 2 pcs. / Brass Ball 2 pcs.
Both Ends Cone TypeDMWM

Specifications

Part Number-d, M-α°

Type D
DGSM 30-10-45
■One End Cone / Both Ends Cone Type with Through Hole and Set Screw
Part Numberdα°LUnit PriceVolume Discount Rate
TypeD1 ~ 9 pc(s).10~50
DGSM30104522
401216304524
5028
DGWM30104530
401216304534
5042

■One End Cone / Both Ends Cone Type with Tapped Hole and Set Screw
Part NumberM (Coarse)α°LUnit PriceVolume Discount Rate
TypeD1 ~ 9 pc(s).10~50
DMSM30104522
401216304524
5028
DMWM30104530
401216304534
5042

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
DGSM30-10-45
DGSM40-12-30
DGSM40-12-45
DGSM40-16-30
DGSM40-16-45
DGSM50-12-30
DGSM50-12-45
DGSM50-16-30
DGSM50-16-45
DGWM30-10-45
DGWM40-12-30
DGWM40-12-45
DGWM40-16-30
DGWM40-16-45
DGWM50-12-30
DGWM50-12-45
DGWM50-16-30
DGWM50-16-45
DMSM30-10-45
DMSM40-12-30
DMSM40-12-45
DMSM40-16-30
DMSM40-16-45
DMSM50-12-30
DMSM50-12-45
DMSM50-16-30
DMSM50-16-45
DMWM30-10-45
DMWM40-12-30
DMWM40-12-45
DMWM40-16-30
DMWM40-16-45
DMWM50-12-30
DMWM50-12-45
DMWM50-16-45
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSType O.D. D
(mm) 		M (Coarse) I.D. d
(mm) 		Angle α
(°)

5.65 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw30-1045

6.39 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw40-1230

6.39 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw40-1245

6.39 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw40-1630

6.26 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw40-1645

7.98 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw50-1230

7.98 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw50-1245

7.98 €

1 Available 5 Days 10One End Cone Type with Through Hole and Set Screw50-1630

7.98 €

1 Available Same day

Stock

10One End Cone Type with Through Hole and Set Screw50-1645

8.23 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw30-1045

9.09 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw40-1230

9.09 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw40-1245

9.09 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw40-1630

9.09 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw40-1645

10.56 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw50-1230

10.56 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw50-1245

10.56 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw50-1630

10.56 €

1 Available 5 Days 10Both Ends Cone Type with Through Hole and Set Screw50-1645

5.90 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw3010-45

6.76 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw4012-30

6.76 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw4012-45

6.76 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw4016-30

6.76 €

1 Available Same day

Stock

10One End Cone Type with Tapped Hole and Set Screw4016-45

8.23 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw5012-30

8.23 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw5012-45

8.23 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw5016-30

8.23 €

1 Available 5 Days 10One End Cone Type with Tapped Hole and Set Screw5016-45

8.36 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw3010-45

9.83 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw4012-30

9.83 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw4012-45

9.83 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw4016-30

9.83 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw4016-45

11.30 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw5012-30

11.30 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw5012-45

11.30 €

1 Available 5 Days 10Both Ends Cone Type with Tapped Hole and Set Screw5016-45
