Contact Probes/NP45S3SF/NP45S3 Series

Contact Probes/NP45S3SF/NP45S3 Series

Click on this image to zoom in.

Click on this image to zoom in.

  • Contact Probes/NP45S3SF/NP45S3 Series
  • Contact Probes/NP45S3SF/NP45S3 Series

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

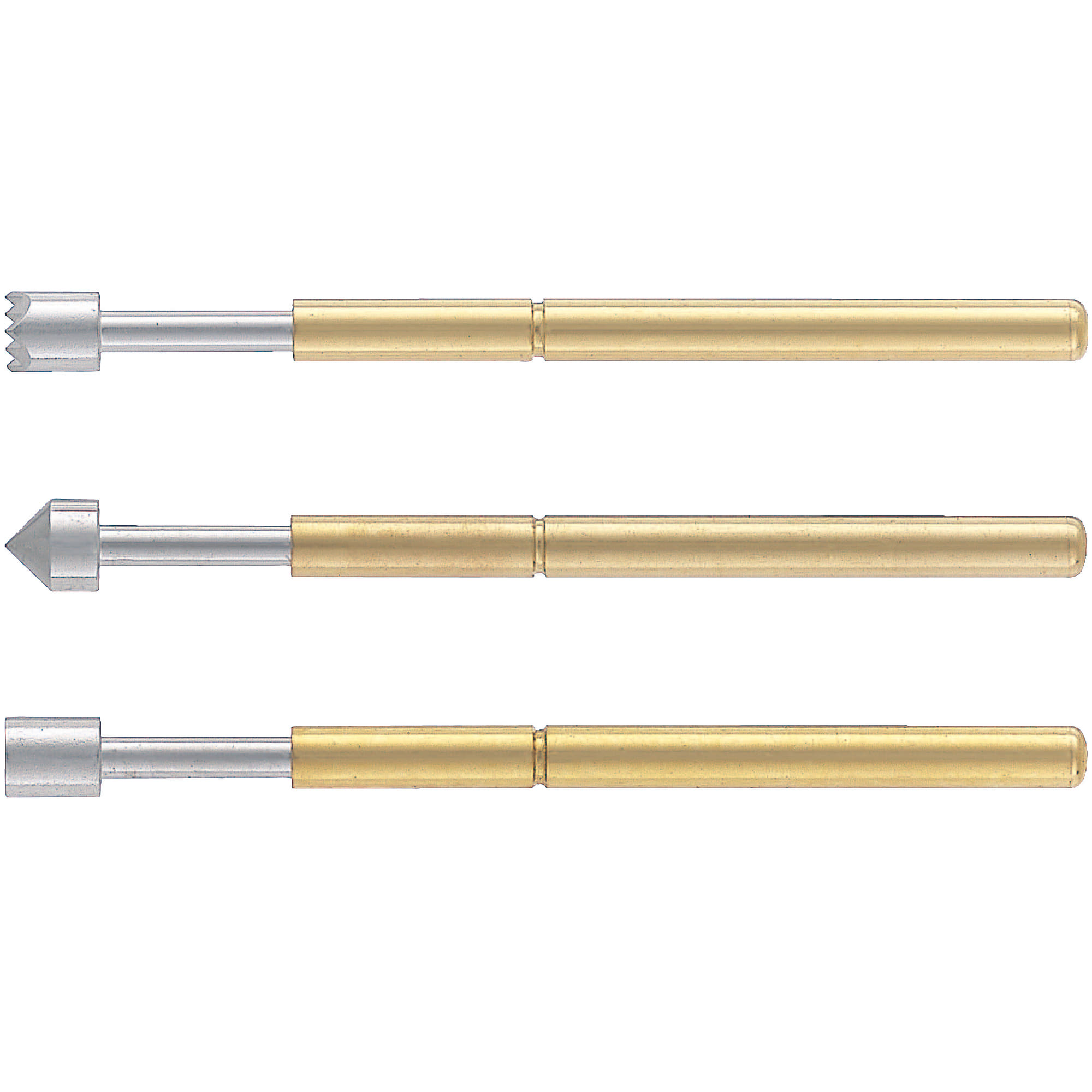

Contact Probes/NP45S3SF/NP45S3 Series:Related Image
Contact Probes/NP45S3SF/NP45S3 Series:Related Image

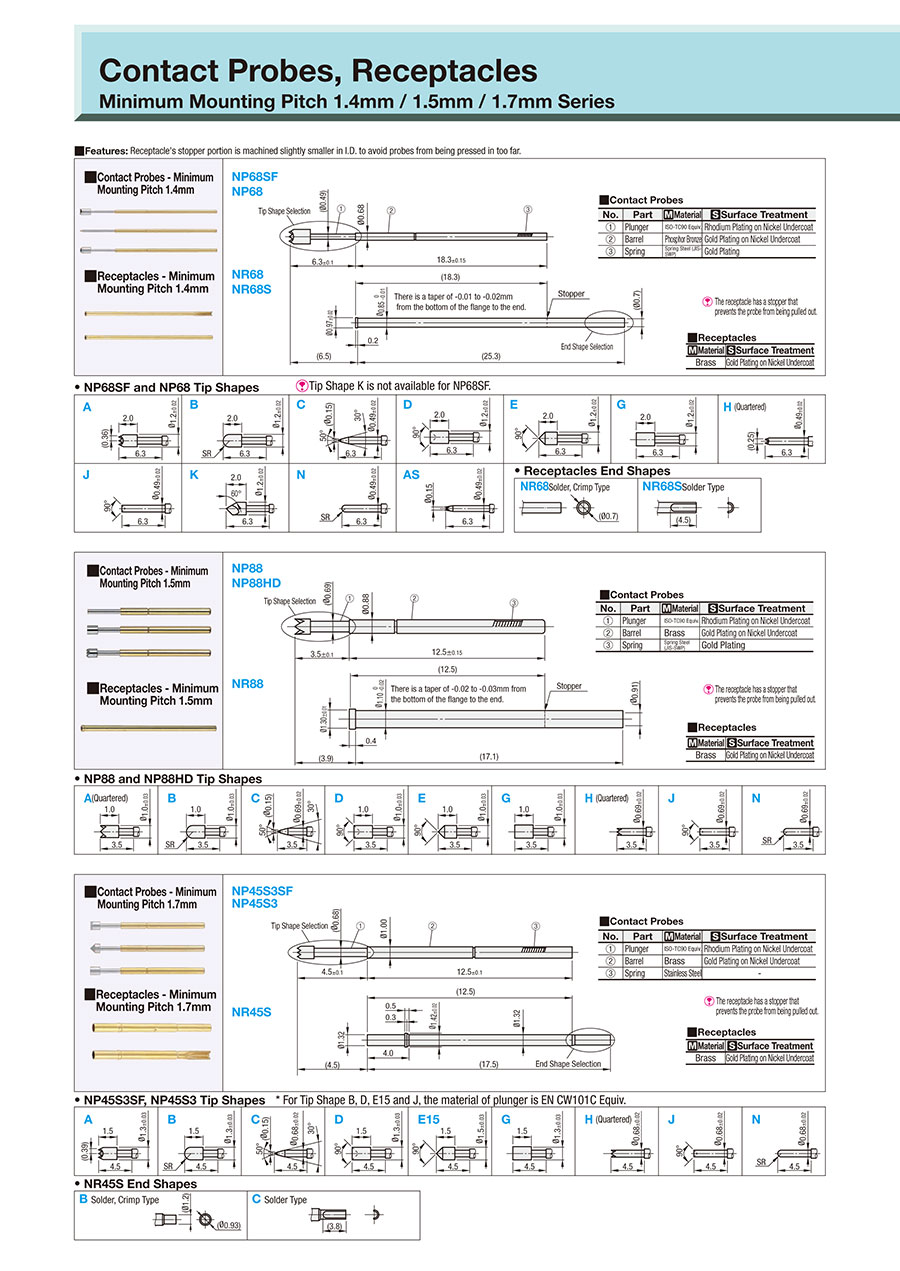

■Contact Probes
No.PartMaterialSurface Treatment
PlungerISO-TC90 Equiv.Rhodium Plating on Nickel Undercoat
BarrelBrassGold Plating on Nickel Undercoat
SpringStainless Steel-

■Receptacles
MaterialSurface Treatment
BrassGold Plating on Nickel Undercoat

Specifications

Part Number-Tip (End) Shape-Lead Wire Color-Lead Wire Length
NP68SF-A
NP88-C
NR88
NR45S-B
NRB68  -W-1000
NRSB45  -W-400
■Contact Probes
Part NumberMounting Pitch (min.)Full StrokeSpring PressureAllowable CurrentResistanceReplacement Cycle (Reference)Unit PriceVolume Discount Rate
Initial2/3 Stroke1 ~ 69 pc(s).70~99100~500
NP68SF1.4mm4.3mm25gf50gf1A80mΩ30,000 times
NP6830gf90gf
NP881.5mm2.5mm10gf50gf1.3A80mΩ250,000 times
NP88HD30gf100gf
NP45S3SF1.7mm3.0mm25gf50gf1.5A80mΩ300,000 times
NP45S330gf100gf
NP45SF1.7mm5.0mm10gf50gf1.5A80mΩ300,000 times
NP4530gf100gf
NP45HD40gf150gf
For orders larger than indicated quantity, please request a quotation.

■Receptacles
For NR68, NR68S, NR45S and NR45, please select the end shape.
Part NumberMatching Contact ProbeMounting Hole for Press-Fitting Dimension (Reference)Unit PriceVolume Discount Rate
1 ~ 69 pc(s).70~99100~500
NR68NP68SF
NP68
0.83~0.84mm
NR68S
NR88NP88
NP88HD
1.08~1.09mm
NR45SNP45S3SF
NP45S3
1.39~1.41mm
NR45NP45SF
NP45
NP45HD
1.39~1.41mm
NR45T1.47~1.49mm
For orders larger than indicated quantity, please request a quotation.

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
NP45S3-A
NP45S3-B
NP45S3-C
NP45S3-D
NP45S3-E15
NP45S3-G
NP45S3-H
NP45S3-J
NP45S3-N
NP45S3SF-A
NP45S3SF-B
NP45S3SF-C
NP45S3SF-D
NP45S3SF-E15
NP45S3SF-G
NP45S3SF-H
NP45S3SF-J
NP45S3SF-N
NR45S-B
NR45S-C
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSType Min. Mounting Pitch
(mm)
Plunger Tip Shape Full Stroke (Range)
(mm)
Full Stroke
(mm)
2/3 Stroke Spring Pressure (Range)
(gf)
End Shape Plunger Material Plunger O.D.
(Ø)
Plunger Surface Treatment Plunger Length L1 (Range)
(mm)
Receptacle O.D. D (Range)
(Ø)
Barrel, Receptacle O.D.
(Ø)
Barrel, Receptacle Length L2 (Range)
(mm)
Initial Spring Pressure (Range)
(gf)
Allowable Current
(A)
Resistance
(mΩ)
Plunger Length
(mm)
Receptacle Outermost Diameter
(Ø)
Barrel, Receptacle Length
(mm)
Initial Spring Pressure
(gf)
2/3 Stroke Spring Pressure
(gf)

1.50 €

Available 3 Days 10Contact Probes1.7[Waffle] Waffle A3-4.5350.1-100-[Carbon steel] ISO-TC90 Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Sphere Shape (SR)] Sphere(SR) B3-4.5350.1-100-[Copper Alloy] EN CW101C Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Needle] Needle C3-4.5350.1-100-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available Same day

Stock

10Contact Probes1.7[Cup] Cup D3-4.5350.1-100-[Copper Alloy] EN CW101C Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Needle] Needle E153-4.5350.1-100-[Copper Alloy] EN CW101C Equiv.1.5Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available Same day

Stock

10Contact Probes1.7[Flat] Flat G3-4.5350.1-100-[Carbon steel] ISO-TC90 Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Straight, Crowned] Straight Crown H3-4.5350.1-100-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Cup] Cup J3-4.5350.1-100-[Copper Alloy] EN CW101C Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available 3 Days 10Contact Probes1.7[Sphere Shape (SR)] Sphere(SR) N3-4.5350.1-100-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.530100

1.50 €

Available Same day

Stock

10Contact Probes1.7[Waffle] Waffle A3-4.5330.1-50-[Carbon steel] ISO-TC90 Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available Same day

Stock

10Contact Probes1.7[Sphere Shape (SR)] Sphere(SR) B3-4.5330.1-50-[Copper Alloy] EN CW101C Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available Same day

Stock

10Contact Probes1.7[Needle] Needle C3-4.5330.1-50-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available 3 Days 10Contact Probes1.7[Cup] Cup D3-4.5330.1-50-[Copper Alloy] EN CW101C Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available 3 Days 10Contact Probes1.7[Needle] Needle E153-4.5330.1-50-[Copper Alloy] EN CW101C Equiv.1.5Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available Same day

Stock

10Contact Probes1.7[Flat] Flat G3-4.5330.1-50-[Carbon steel] ISO-TC90 Equiv.1.3Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available 3 Days 10Contact Probes1.7[Straight, Crowned] Straight Crown H3-4.5330.1-50-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available 3 Days 10Contact Probes1.7[Cup] Cup J3-4.5330.1-50-[Copper Alloy] EN CW101C Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

1.50 €

Available 3 Days 10Contact Probes1.7[Sphere Shape (SR)] Sphere(SR) N3-4.5330.1-50-[Carbon steel] ISO-TC90 Equiv.0.68Nickel Plating Base, Rhodium Plating3.1-5-110.1-1520.1-301.5804.5-12.52550

0.60 €

Available Same day

Stock

10Receptacle-----[Cylindrical] B Solder and Crimp Type----1.01-1.51.3215.1-20----1.4217.5--

0.60 €

Available Same day

Stock

10Receptacle-----C Solder Type----1.01-1.51.3215.1-20----1.4217.5--
