Round belt track rollers / semicircular groove double / ball bearing / stainless steel, aluminium / anodised
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material | Surface Treatment | Accessory | |
| Bearing | Main Body | |||
| MBXAC | Stainless Steel | EN AW-5052 Equiv. | Clear Anodize | Retaining Ring (EN 1.4301 Equiv.) |
| MBXS | EN 1.4301 Equiv. | - | ||
Specifications
| Part Number | - | R |
| MBXS30 | - | 1.6 |

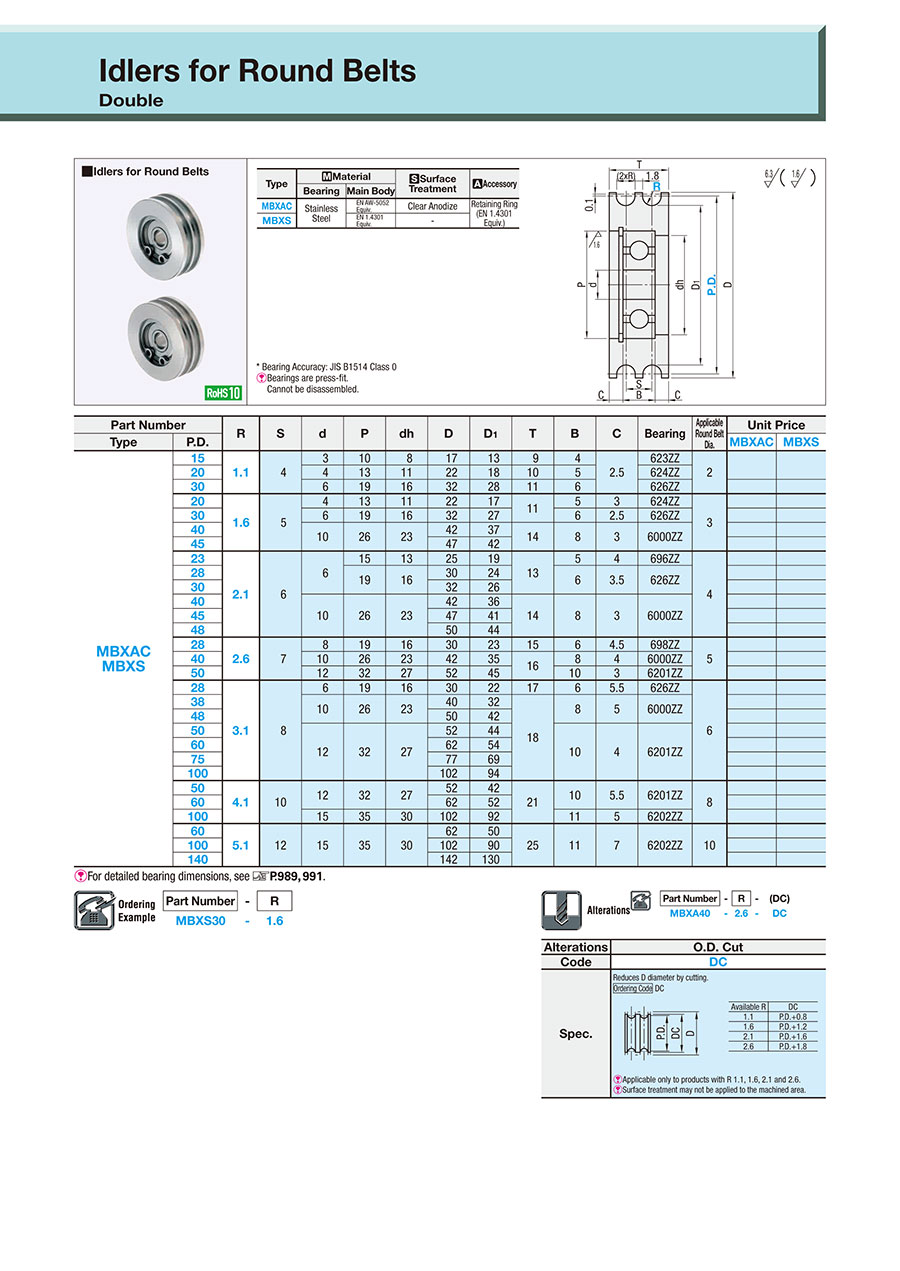

| Part Number | R | S | d | P | dh | D | D1 | T | B | C | Bearing | Applicable Round Belt Dia. | Unit Price | ||
| Type | P.D. | MBXAC | MBXS | ||||||||||||
| MBXAC MBXS | 15 | 1.1 | 4 | 3 | 10 | 8 | 17 | 13 | 9 | 4 | 2.5 | 623ZZ | 2 | ||
| 20 | 4 | 13 | 11 | 22 | 18 | 10 | 5 | 624ZZ | |||||||
| 30 | 6 | 19 | 16 | 32 | 28 | 11 | 6 | 626ZZ | |||||||
| 20 | 1.6 | 5 | 4 | 13 | 11 | 22 | 17 | 11 | 5 | 3 | 624ZZ | 3 | |||
| 30 | 6 | 19 | 16 | 32 | 27 | 6 | 2.5 | 626ZZ | |||||||
| 40 | 10 | 26 | 23 | 42 | 37 | 14 | 8 | 3 | 6000ZZ | ||||||
| 45 | 47 | 42 | |||||||||||||
| 23 | 2.1 | 6 | 6 | 15 | 13 | 25 | 19 | 13 | 5 | 4 | 696ZZ | 4 | |||
| 28 | 19 | 16 | 30 | 24 | 6 | 3.5 | 626ZZ | ||||||||
| 30 | 32 | 26 | |||||||||||||
| 40 | 10 | 26 | 23 | 42 | 36 | 14 | 8 | 3 | 6000ZZ | ||||||
| 45 | 47 | 41 | |||||||||||||
| 48 | 50 | 44 | |||||||||||||
| 28 | 2.6 | 7 | 8 | 19 | 16 | 30 | 23 | 15 | 6 | 4.5 | 698ZZ | 5 | |||
| 40 | 10 | 26 | 23 | 42 | 35 | 16 | 8 | 4 | 6000ZZ | ||||||
| 50 | 12 | 32 | 27 | 52 | 45 | 10 | 3 | 6201ZZ | |||||||
| 28 | 3.1 | 8 | 6 | 19 | 16 | 30 | 22 | 17 | 6 | 5.5 | 626ZZ | 6 | |||
| 38 | 10 | 26 | 23 | 40 | 32 | 18 | 8 | 5 | 6000ZZ | ||||||
| 48 | 50 | 42 | |||||||||||||
| 50 | 12 | 32 | 27 | 52 | 44 | 10 | 4 | 6201ZZ | |||||||
| 60 | 62 | 54 | |||||||||||||
| 75 | 77 | 69 | |||||||||||||
| 100 | 102 | 94 | |||||||||||||
| 50 | 4.1 | 10 | 12 | 32 | 27 | 52 | 42 | 21 | 10 | 5.5 | 6201ZZ | 8 | |||
| 60 | 62 | 52 | |||||||||||||
| 100 | 15 | 35 | 30 | 102 | 92 | 11 | 5 | 6202ZZ | |||||||
| 60 | 5.1 | 12 | 15 | 35 | 30 | 62 | 50 | 25 | 11 | 7 | 6202ZZ | 10 | |||
| 100 | 102 | 90 | |||||||||||||
| 140 | 142 | 130 | |||||||||||||
Alterations
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MBXA15-1.1 |
| MBXA20-1.1 |
| MBXA20-1.6 |
| MBXA23-2.1 |
| MBXA28-2.1 |
| MBXA28-2.6 |
| MBXA28-3.1 |
| MBXA30-1.1 |
| MBXA30-1.6 |
| MBXA30-2.1 |
| MBXA38-3.1 |
| MBXA40-1.6 |
| MBXA40-2.1 |
| MBXA40-2.6 |
| MBXA45-1.6 |
| MBXA45-2.1 |
| MBXA48-2.1 |
| MBXA48-3.1 |
| MBXA50-2.6 |
| MBXA50-3.1 |
| MBXA50-4.1 |
| MBXA60-3.1 |
| MBXA60-4.1 |
| MBXA60-5.1 |
| MBXA75-3.1 |
| MBXA100-3.1 |
| MBXA100-4.1 |
| MBXA100-5.1 |
| MBXA140-5.1 |
| MBXAC15-1.1 |
| MBXAC20-1.1 |
| MBXAC20-1.6 |
| MBXAC23-2.1 |
| MBXAC28-2.1 |
| MBXAC28-2.6 |
| MBXAC28-3.1 |
| MBXAC30-1.1 |
| MBXAC30-1.6 |
| MBXAC30-2.1 |
| MBXAC38-3.1 |
| MBXAC40-1.6 |
| MBXAC40-2.1 |
| MBXAC40-2.6 |
| MBXAC45-1.6 |
| MBXAC45-2.1 |
| MBXAC48-2.1 |
| MBXAC48-3.1 |
| MBXAC50-2.6 |
| MBXAC50-3.1 |
| MBXAC50-4.1 |
| MBXAC60-3.1 |
| MBXAC60-4.1 |
| MBXAC60-5.1 |
| MBXAC75-3.1 |
| MBXAC100-3.1 |
| MBXAC100-4.1 |
| MBXAC100-5.1 |
| MBXAC140-5.1 |
| MBXS15-1.1 |
| MBXS20-1.1 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Applicable Belt Dia. (Ø) | Pitch Circle Dia. P.D. (Ø) | Material | Surface Treatment | Shaft Dia. d (or P) (Ø) | R (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
12.08 € | 1 | Available | 19 Days | 10 | 2 | 15 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 3 | 1.1 | |
12.08 € | 1 | Available | 19 Days | 10 | 2 | 20 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 4 | 1.1 | |
12.08 € | 1 | Available | 5 Days | 10 | 3 | 20 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 4 | 1.6 | |
13.45 € | 1 | Available | 19 Days | 10 | 4 | 23 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 2.1 | |
13.83 € | 1 | Available | 19 Days | 10 | 4 | 28 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 2.1 | |
15.69 € | 1 | Available | 19 Days | 10 | 5 | 28 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 8 | 2.6 | |
15.94 € | 1 | Available | 19 Days | 10 | 6 | 28 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 3.1 | |
13.83 € | 1 | Available | 19 Days | 10 | 2 | 30 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 1.1 | |
13.83 € | 1 | Available | 19 Days | 10 | 3 | 30 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 1.6 | |
13.83 € | 1 | Available | 19 Days | 10 | 4 | 30 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 6 | 2.1 | |
17.06 € | 1 | Available | 19 Days | 10 | 6 | 38 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 3.1 | |
14.95 € | 1 | Available | 19 Days | 10 | 3 | 40 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 1.6 | |
14.95 € | 1 | Available | 19 Days | 10 | 4 | 40 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 2.1 | |
16.44 € | 1 | Available | 19 Days | 10 | 5 | 40 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 2.6 | |
16.57 € | 1 | Available | 19 Days | 10 | 3 | 45 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 1.6 | |
16.33 € | 1 | Available | 19 Days | 10 | 4 | 45 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 2.1 | |
18.69 € | 1 | Available | 19 Days | 10 | 4 | 48 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 2.1 | |
22.41 € | 1 | Available | 19 Days | 10 | 6 | 48 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 10 | 3.1 | |
22.16 € | 1 | Available | 19 Days | 10 | 5 | 50 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 2.6 | |
24.16 € | 1 | Available | 19 Days | 10 | 6 | 50 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 3.1 | |
26.65 € | 1 | Available | 19 Days | 10 | 8 | 50 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 4.1 | |
26.65 € | 1 | Available | 19 Days | 10 | 6 | 60 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 3.1 | |
29.51 € | 1 | Available | 19 Days | 10 | 8 | 60 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 4.1 | |
32.26 € | 1 | Available | 19 Days | 10 | 10 | 60 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 15 | 5.1 | |
30.13 € | 1 | Available | 19 Days | 10 | 6 | 75 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 3.1 | |
36.86 € | 1 | Available | 19 Days | 10 | 6 | 100 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 12 | 3.1 | |
39.98 € | 1 | Available | 19 Days | 10 | 8 | 100 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 15 | 4.1 | |
44.96 € | 1 | Available | 19 Days | 10 | 10 | 100 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 15 | 5.1 | |
64.40 € | 1 | Available | 19 Days | 10 | 10 | 140 | [Aluminum] EN AW-5052 Equiv. | Electroless Nickel Plating | 15 | 5.1 | |
12.08 € | 1 | Available | 8 Days | 10 | 2 | 15 | - | Clear Anodized Aluminum | 3 | 1.1 | |
12.08 € | 1 | Available | 8 Days | 10 | 2 | 20 | - | Clear Anodized Aluminum | 4 | 1.1 | |
12.08 € | 1 | Available | 8 Days | 10 | 3 | 20 | - | Clear Anodized Aluminum | 4 | 1.6 | |
13.45 € | 1 | Available | 8 Days | 10 | 4 | 23 | - | Clear Anodized Aluminum | 6 | 2.1 | |
13.83 € | 1 | Available | 8 Days | 10 | 4 | 28 | - | Clear Anodized Aluminum | 6 | 2.1 | |
15.69 € | 1 | Available | 8 Days | 10 | 5 | 28 | - | Clear Anodized Aluminum | 8 | 2.6 | |
15.94 € | 1 | Available | 8 Days | 10 | 6 | 28 | - | Clear Anodized Aluminum | 6 | 3.1 | |
13.83 € | 1 | Available | 8 Days | 10 | 2 | 30 | - | Clear Anodized Aluminum | 6 | 1.1 | |
13.83 € | 1 | Available | 8 Days | 10 | 3 | 30 | - | Clear Anodized Aluminum | 6 | 1.6 | |
13.83 € | 1 | Available | 8 Days | 10 | 4 | 30 | - | Clear Anodized Aluminum | 6 | 2.1 | |
17.06 € | 1 | Available | 8 Days | 10 | 6 | 38 | - | Clear Anodized Aluminum | 10 | 3.1 | |
14.95 € | 1 | Available | 8 Days | 10 | 3 | 40 | - | Clear Anodized Aluminum | 10 | 1.6 | |
14.95 € | 1 | Available | 8 Days | 10 | 4 | 40 | - | Clear Anodized Aluminum | 10 | 2.1 | |
16.44 € | 1 | Available | 8 Days | 10 | 5 | 40 | - | Clear Anodized Aluminum | 10 | 2.6 | |
16.57 € | 1 | Available | 8 Days | 10 | 3 | 45 | - | Clear Anodized Aluminum | 10 | 1.6 | |
16.33 € | 1 | Available | 8 Days | 10 | 4 | 45 | - | Clear Anodized Aluminum | 10 | 2.1 | |
18.69 € | 1 | Available | 8 Days | 10 | 4 | 48 | - | Clear Anodized Aluminum | 10 | 2.1 | |
22.41 € | 1 | Available | 8 Days | 10 | 6 | 48 | - | Clear Anodized Aluminum | 10 | 3.1 | |
22.16 € | 1 | Available | 8 Days | 10 | 5 | 50 | - | Clear Anodized Aluminum | 12 | 2.6 | |
24.16 € | 1 | Available | 8 Days | 10 | 6 | 50 | - | Clear Anodized Aluminum | 12 | 3.1 | |
26.65 € | 1 | Available | 8 Days | 10 | 8 | 50 | - | Clear Anodized Aluminum | 12 | 4.1 | |
26.65 € | 1 | Available | 8 Days | 10 | 6 | 60 | - | Clear Anodized Aluminum | 12 | 3.1 | |
29.51 € | 1 | Available | 8 Days | 10 | 8 | 60 | - | Clear Anodized Aluminum | 12 | 4.1 | |
32.26 € | 1 | Available | 8 Days | 10 | 10 | 60 | - | Clear Anodized Aluminum | 15 | 5.1 | |
30.13 € | 1 | Available | 8 Days | 10 | 6 | 75 | - | Clear Anodized Aluminum | 12 | 3.1 | |
36.86 € | 1 | Available | 8 Days | 10 | 6 | 100 | - | Clear Anodized Aluminum | 12 | 3.1 | |
39.98 € | 1 | Available | 8 Days | 10 | 8 | 100 | - | Clear Anodized Aluminum | 15 | 4.1 | |
44.96 € | 1 | Available | 8 Days | 10 | 10 | 100 | - | Clear Anodized Aluminum | 15 | 5.1 | |
64.40 € | 1 | Available | 8 Days | 10 | 10 | 140 | - | Clear Anodized Aluminum | 15 | 5.1 | |
17.94 € | 1 | Available | 8 Days | 10 | 2 | 15 | EN 1.4301 Equiv. | Not Provided | 3 | 1.1 | |
17.94 € | 1 | Available | 8 Days | 10 | 2 | 20 | EN 1.4301 Equiv. | Not Provided | 4 | 1.1 |
