Castor fixing unit for aluminium extrusions. 2 types are available for panels, square and rectangular, and for materials, steel and stainless steel.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Specifications

Part Number
HAJCHP6060

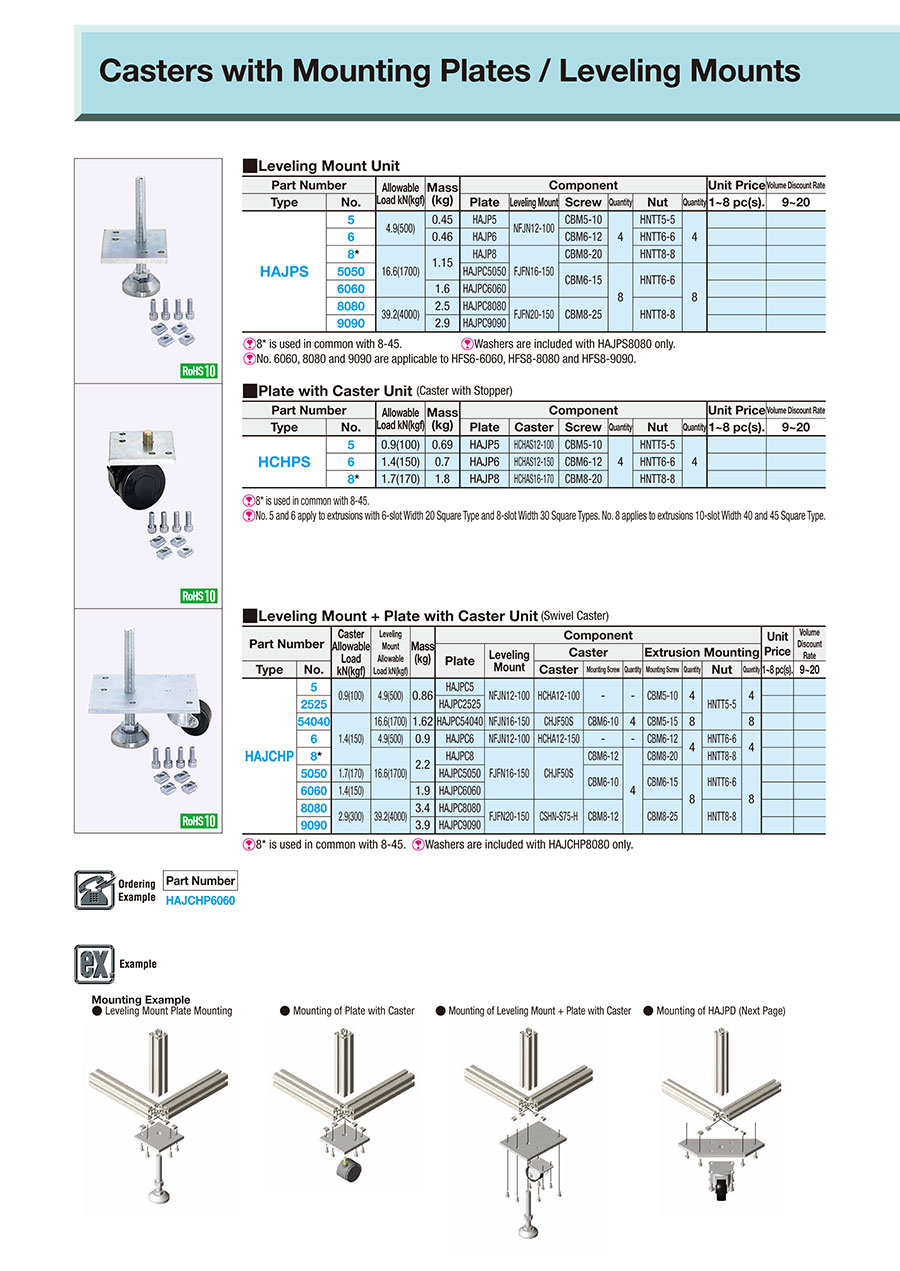

 ■ Plate with Caster Unit (Caster with Stopper)
Part NumberAllowable Load kN(kgf)Mass (kg)ComponentUnit PriceVolume Discount Rate
TypeNo.PlateCasterScrewQuantityNutQuantity1~8 pc(s).9~20
HCHPS50.9(100)0.69HAJP5HCHAS12-100CBM5-104HNTT5-54
61.4(150)0.7HAJP6HCHAS12-150CBM6-12HNTT6-6
8*1.7(170)1.8HAJP8HCHAS16-170CBM8-20HNTT8-8
8* is used in common with 8-45.
No. 5 and 6 apply to extrusions with 6-slot Width 20 Square Type and 8-slot Width 30 Square Types. No. 8 applies to extrusions 10-slot Width 40 and 45 Square Type.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
HCHPS5
HCHPS6
HCHPS8
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSApplicable Frame Size Accessories Plates

12.78 €

1 Available 5 Days 105-2020HAJP5

12.96 €

1 Available 5 Days 106-3030HAJP6

36.44 €

1 Available 5 Days 108-4040, 8-4545HAJP8

Loading...

  1. 1

Example of Use

Plates with Caster:Related Image

Basic information

Type Screw Mounted Casters Specifications Caster Plate Units
