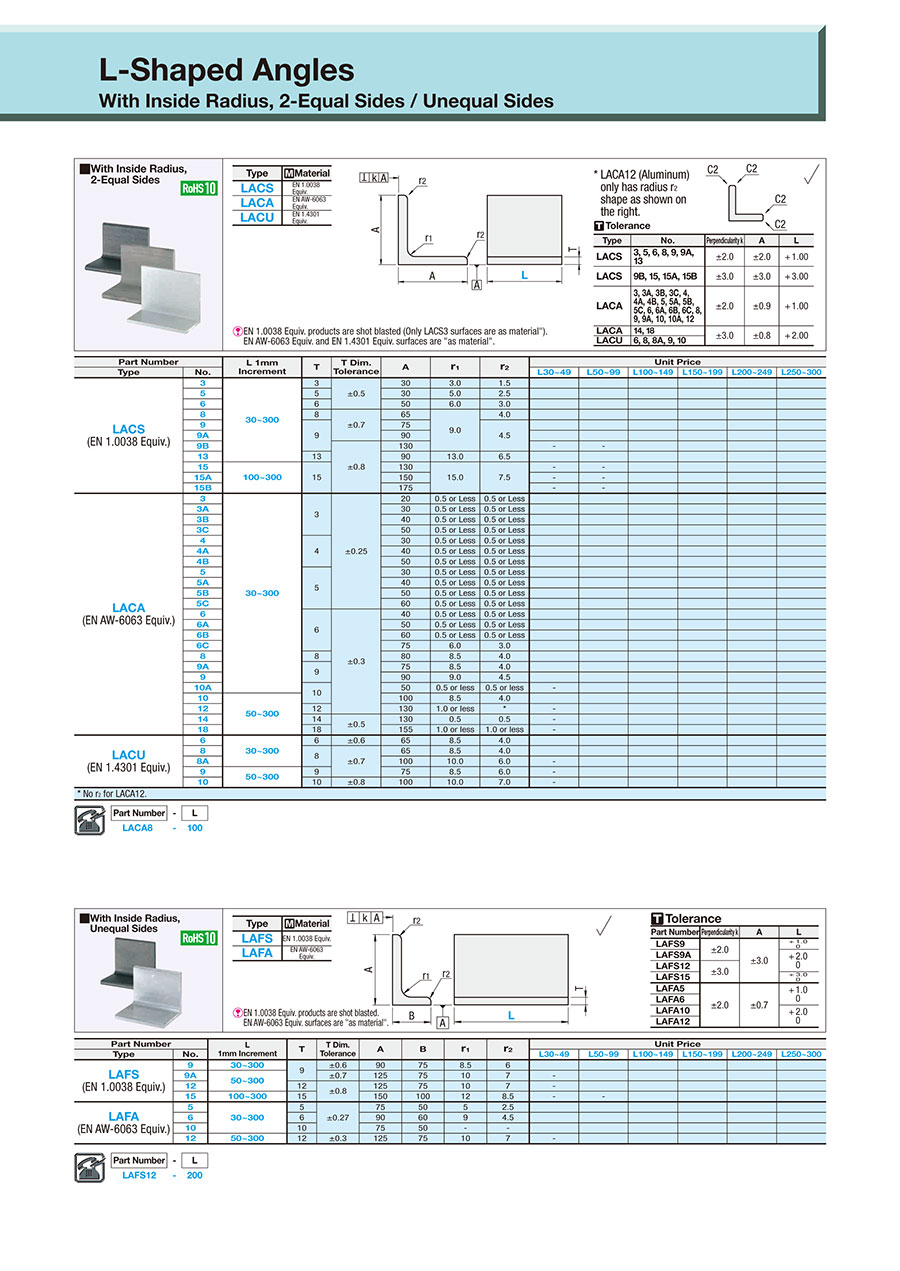

Angles / Radiused Corners / Two Sides Equilateral
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
|  | ||||||||||||||||||||||||||||
Tolerance
| |||||||||||||||||||||||||||||
Specifications
| Part Number | - | L |
| LACA8 | - | 100 |
| Part Number | L 1mm Increment | T | T Dim. Tolerance | A | r1 | r2 | Unit Price | ||||||
| Type | No. | L30~49 | L50~99 | L100~149 | L150~199 | L200~249 | L250~300 | ||||||
| LACS (EN 1.0038 Equiv.) | 3 | 30~300 | 3 | ±0.5 | 30 | 3.0 | 1.5 | ||||||
| 5 | 5 | 30 | 5.0 | 2.5 | |||||||||
| 6 | 6 | 50 | 6.0 | 3.0 | |||||||||
| 8 | 8 | ±0.7 | 65 | 9.0 | 4.0 | ||||||||
| 9 | 9 | 75 | 4.5 | ||||||||||
| 9A | 90 | ||||||||||||
| 9B | ±0.8 | 130 | - | - | |||||||||
| 13 | 13 | 90 | 13.0 | 6.5 | |||||||||
| 15 | 100~300 | 15 | 130 | 15.0 | 7.5 | - | - | ||||||
| 15A | 150 | - | - | ||||||||||
| 15B | 175 | - | - | ||||||||||
| LACA (EN AW-6063 Equiv.) | 3 | 30~300 | 3 | ±0.25 | 20 | 0.5 or Less | 0.5 or Less | ||||||
| 3A | 30 | 0.5 or Less | 0.5 or Less | ||||||||||
| 3B | 40 | 0.5 or Less | 0.5 or Less | ||||||||||
| 3C | 50 | 0.5 or Less | 0.5 or Less | ||||||||||
| 4 | 4 | 30 | 0.5 or Less | 0.5 or Less | |||||||||
| 4A | 40 | 0.5 or Less | 0.5 or Less | ||||||||||
| 4B | 50 | 0.5 or Less | 0.5 or Less | ||||||||||
| 5 | 5 | 30 | 0.5 or Less | 0.5 or Less | |||||||||
| 5A | 40 | 0.5 or Less | 0.5 or Less | ||||||||||
| 5B | 50 | 0.5 or Less | 0.5 or Less | ||||||||||
| 5C | 60 | 0.5 or Less | 0.5 or Less | ||||||||||
| 6 | 6 | ±0.3 | 40 | 0.5 or Less | 0.5 or Less | ||||||||
| 6A | 50 | 0.5 or Less | 0.5 or Less | ||||||||||
| 6B | 60 | 0.5 or Less | 0.5 or Less | ||||||||||
| 6C | 75 | 6.0 | 3.0 | ||||||||||
| 8 | 8 | 80 | 8.5 | 4.0 | |||||||||
| 9A | 9 | 75 | 8.5 | 4.0 | |||||||||
| 9 | 90 | 9.0 | 4.5 | ||||||||||
| 10A | 10 | 50 | 0.5 or Less | 0.5 or Less | - | ||||||||
| 10 | 50~300 | 100 | 8.5 | 4.0 | |||||||||
| 12 | 12 | 130 | 1.0 or Less | * | - | ||||||||
| 14 | 14 | ±0.5 | 130 | 0.5 | 0.5 | - | |||||||
| 18 | 18 | 155 | 1.0 or Less | 1.0 or Less | - | ||||||||
| LACU (EN 1.4301 Equiv.) | 6 | 30~300 | 6 | ±0.6 | 65 | 8.5 | 4.0 | ||||||
| 8 | 8 | ±0.7 | 65 | 8.5 | 4.0 | ||||||||
| 8A | 100 | 10.0 | 6.0 | - | |||||||||
| 9 | 50~300 | 9 | 75 | 8.5 | 6.0 | - | |||||||
| 10 | 10 | ±0.8 | 100 | 10.0 | 7.0 | - | |||||||
| * No r2 for LACA12. | |||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| LACA3-[30-300/1] |
| LACA3A-[30-300/1] |
| LACA3B-[30-300/1] |
| LACA3C-[30-300/1] |
| LACA4-[30-300/1] |
| LACA4A-[30-300/1] |
| LACA4B-[30-300/1] |
| LACA5-[30-300/1] |
| LACA5A-[30-300/1] |
| LACA5B-[30-300/1] |
| LACA5C-[30-300/1] |
| LACA6-[30-300/1] |
| LACA6A-[30-300/1] |
| LACA6B-[30-300/1] |
| LACA6C-[30-300/1] |
| LACA8-[30-300/1] |
| LACA9-[30-300/1] |
| LACA9A-[30-300/1] |
| LACA10-[50-300/1] |
| LACA10A-[30-300/1] |
| LACA12-[50-300/1] |
| LACA14-[50-300/1] |
| LACA18-[50-300/1] |
| LACS3-[30-300/1] |
| LACS5-[30-300/1] |
| LACS6-[30-300/1] |
| LACS8-[30-300/1] |
| LACS9-[30-300/1] |
| LACS9A-[30-300/1] |
| LACS9B-[100-300/1] |
| LACS13-[30-300/1] |
| LACS15-[100-300/1] |
| LACS15A-[100-300/1] |
| LACS15B-[100-300/1] |
| LACU6-[30-300/1] |
| LACU8-[30-300/1] |
| LACU8A-[50-300/1] |
| LACU9-[50-300/1] |
| LACU10-[50-300/1] |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Material | T (Plate Thickness) (mm) | A (Height) (mm) | L (mm) | |
|---|---|---|---|---|---|---|---|---|---|
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 3 | 20 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 3 | 30 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 3 | 40 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 3 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 4 | 30 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 4 | 40 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 4 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 5 | 30 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 5 | 40 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 5 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 5 | 60 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 6 | 40 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 6 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 6 | 60 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 6 | 75 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 8 | 80 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 9 | 90 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 9 | 75 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 10 | 100 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 10 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 12 | 130 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 14 | 130 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | [Aluminum] EN AW-6063 Equiv. | 18 | 155 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 3 | 30 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 5 | 30 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 6 | 50 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 8 | 65 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 9 | 75 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 9 | 90 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 9 | 130 | 100 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 13 | 90 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 15 | 130 | 100 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 15 | 150 | 100 ～ 300 | ||
- | 1 | 7 Days | 10 | [Carbon steel] EN 1.0038 Equiv. | 15 | 175 | 100 ～ 300 | ||
- | 1 | 7 Days | 10 | EN 1.4301 Equiv. | 6 | 65 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | EN 1.4301 Equiv. | 8 | 65 | 30 ～ 300 | ||
- | 1 | 7 Days | 10 | EN 1.4301 Equiv. | 8 | 100 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | EN 1.4301 Equiv. | 9 | 75 | 50 ～ 300 | ||
- | 1 | 7 Days | 10 | EN 1.4301 Equiv. | 10 | 100 | 50 ～ 300 |
Loading...
Basic information
| Surface Treatment | Not Provided | Finish Method | With Cutoff Radius |
|---|
Configure
Basic Attributes
-
Material
- Carbon steel
- EN 1.4301 Equiv.
- Aluminum
- Carbon steel
-
T (Plate Thickness)(mm)
-
A (Height)(mm)
-
L(mm)
-
Type
- LACA
- LACS
- LACU
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
