Vacuum Fittings / Standard / Deep / Spring Type Long Stroke / R-Shape

Vacuum Fittings / Standard / Deep / Spring Type Long Stroke / R-Shape

Click on this image to zoom in.

Click on this image to zoom in.

  • Vacuum Fittings / Standard / Deep / Spring Type Long Stroke / R-Shape
  • Vacuum Fittings / Standard / Deep / Spring Type Long Stroke / R-Shape

MISUMI

MISUMI

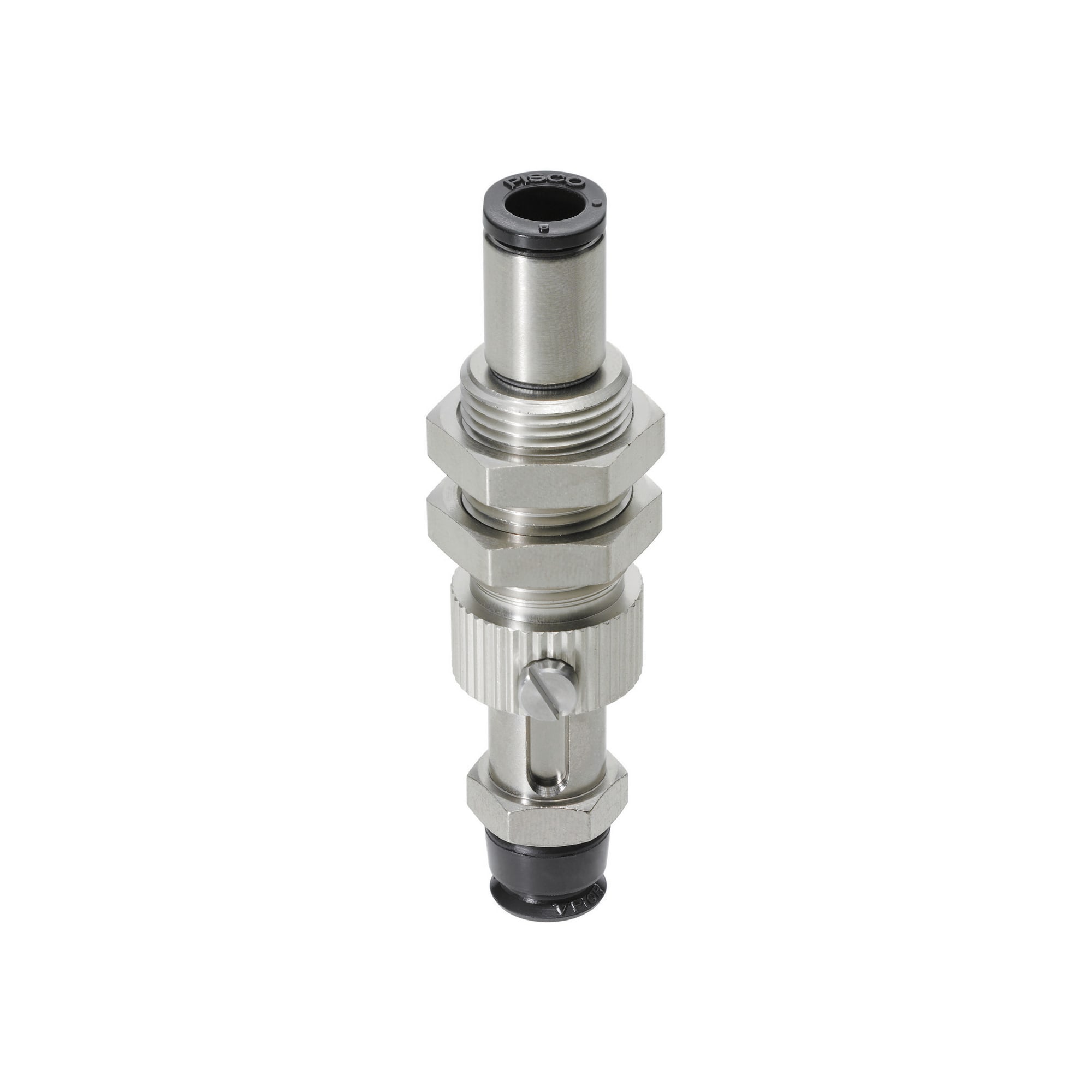

[Features] One absorption holder, spring-loaded, long stroke (R-shape).

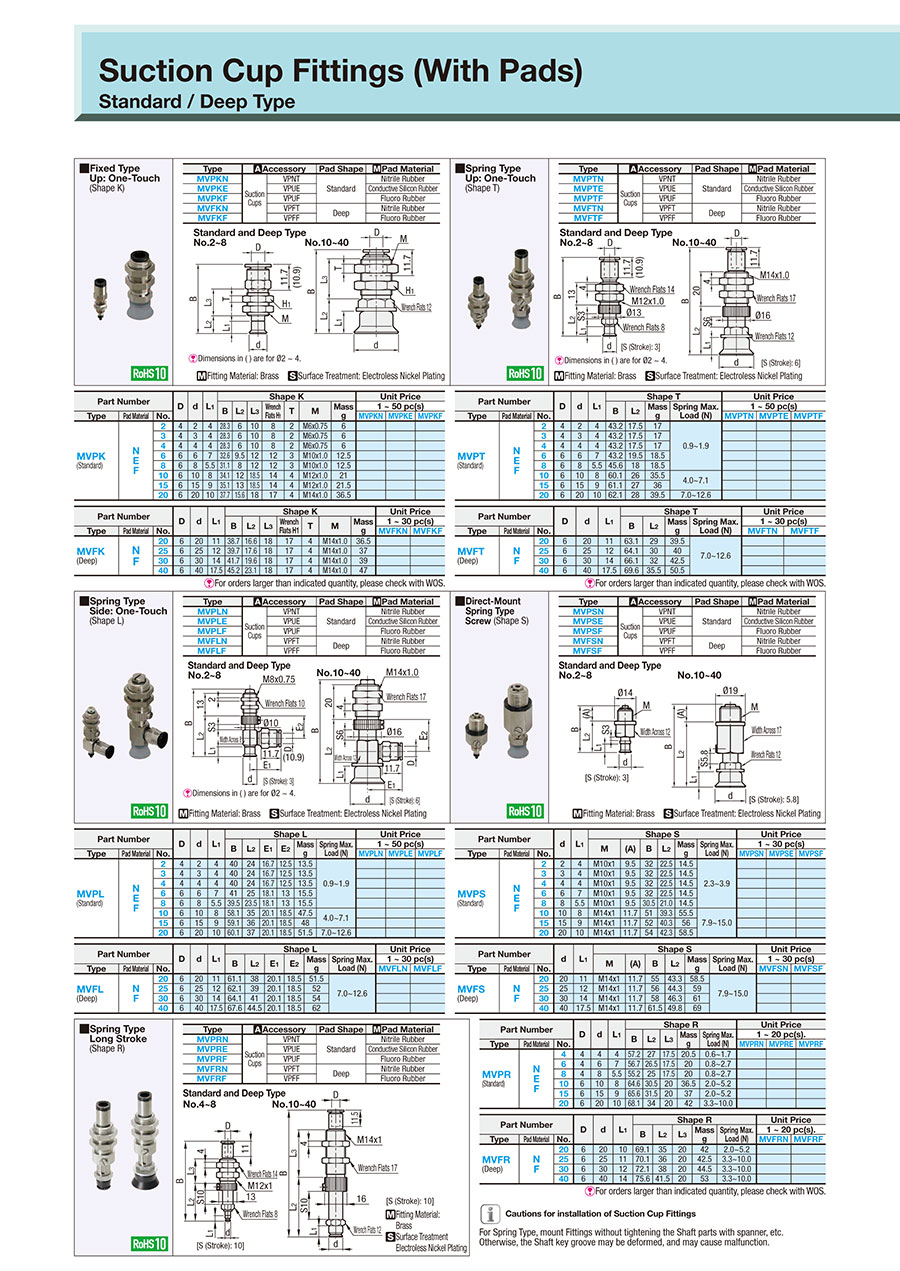

Data sheet

Unit еxample related to this product
Centering mechanism utilizing floating joint
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Vacuum Fittings/Standard/Deep/Spring Type Long Stroke/R-Shape:Related Image

TypeAccessoryPad ShapePad Material
MVPRNSuction CupsVPNTStandardNitrile Rubber
MVPREVPUEConductive Silicon Rubber
MVPRFVPUFFluoro Rubber
MVFRNVPFTDeepNitrile Rubber
MVFRFVPFFFluoro Rubber
Fitting Material:Brass
Surface Treatment:Electroless Nickel Plating

Specifications

Part Number
MVPKN4
VPFF30
Part NumberDdL1Shape RUnit Price
BL2L3Mass gSpring Max. Load (N)1 ~ 20 pc(s).
TypePad MaterialNo.MVPRNMVPREMVPRF
MVPR
(Standard)		N
E
F		444457.22717.520.50.6~1.7
646756.726.517.5200.8~2.7
8485.555.22517.5200.8~2.7
10610864.630.52036.52.0~5.2
15615965.631.520372.0~5.2
206201068.13420423.3~10.0

Part NumberDdL1Shape RUnit Price
BL2L3Mass gSpring Max. Load (N)1 ~ 20 pc(s).
TypePad MaterialNo.MVFRNMVFRF
MVFR
(Deep)		N
F		206201069.13520422.0~5.2
256251170.1362042.53.3~10.0
306301272.1382044.53.3~10.0
406401475.641.520533.3~10.0
For orders larger than indicated quantity, please check with WOS.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
MVFRF20
MVFRF25
MVFRF30
MVFRF40
MVFRN20
MVFRN25
MVFRN30
MVFRN40
MVPRE4
MVPRE6
MVPRE8
MVPRE10
MVPRE15
MVPRE20
MVPRF4
MVPRF6
MVPRF8
MVPRF10
MVPRF15
MVPRF20
MVPRN4
MVPRN6
MVPRN8
MVPRN10
MVPRN15
MVPRN20
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSPad Type Mounting Type Rubber Group Material Usage Environment Color Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature
(°C) 		O.D. (d)
(Ø)

39.74 €

1 5 Days 10Deep[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23020

39.74 €

1 5 Days 10Deep[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23025

39.74 €

1 5 Days 10Deep[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23030

48.42 €

1 5 Days 10Deep[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23040

30.69 €

1 5 Days 10Deep[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11020

30.69 €

1 5 Days 10Deep[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11025

31.06 €

1 5 Days 10Deep[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11030

37.66 €

1 5 Days 10Deep[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11040

27.39 €

1 5 Days 10StandardInsertion Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～1804

23.61 €

1 5 Days 10StandardRecessed Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～1806

23.61 €

1 5 Days 10StandardRecessed Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～1808

33.99 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～18010

34.36 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～18015

32.27 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Silicone Rubber] Conductive Silicon RubberStandard / Oil Resistance / Heat Resistance / Weather ResistanceBlack-40～18020

33.14 €

1 5 Days 10StandardInsertion TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～2304

29.47 €

1 5 Days 10StandardRecessed TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～2306

30.08 €

1 5 Days 10StandardRecessed TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～2308

40.47 €

1 5 Days 10Standard[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23010

42.30 €

1 5 Days 10Standard[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23015

39.74 €

1 5 Days 10Standard[Attachment Type] Attachment TypeFluororubberStandard / Oil Resistance / Heat Resistance / Chemical Resistance / Weather ResistanceGray-10～23020

26.17 €

1 5 Days 10StandardInsertion Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～1104

22.37 €

1 5 Days 10StandardRecessed Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～1106

22.37 €

1 5 Days 10StandardRecessed Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～1108

32.77 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11010

33.14 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11015

30.69 €

1 5 Days 10Standard[Attachment Type] Attachment Type[Nitrile Rubber] Nitrile RubberStandard / Oil ResistanceBlack-30～11020

Loading...

  1. 1

More Information

Cautions for installation of Suction Cup Fittings
For Spring Type, mount Fittings without tightening the Shaft parts with spanner, etc.
Otherwise, the Shaft key groove may be deformed, and may cause malfunction.
