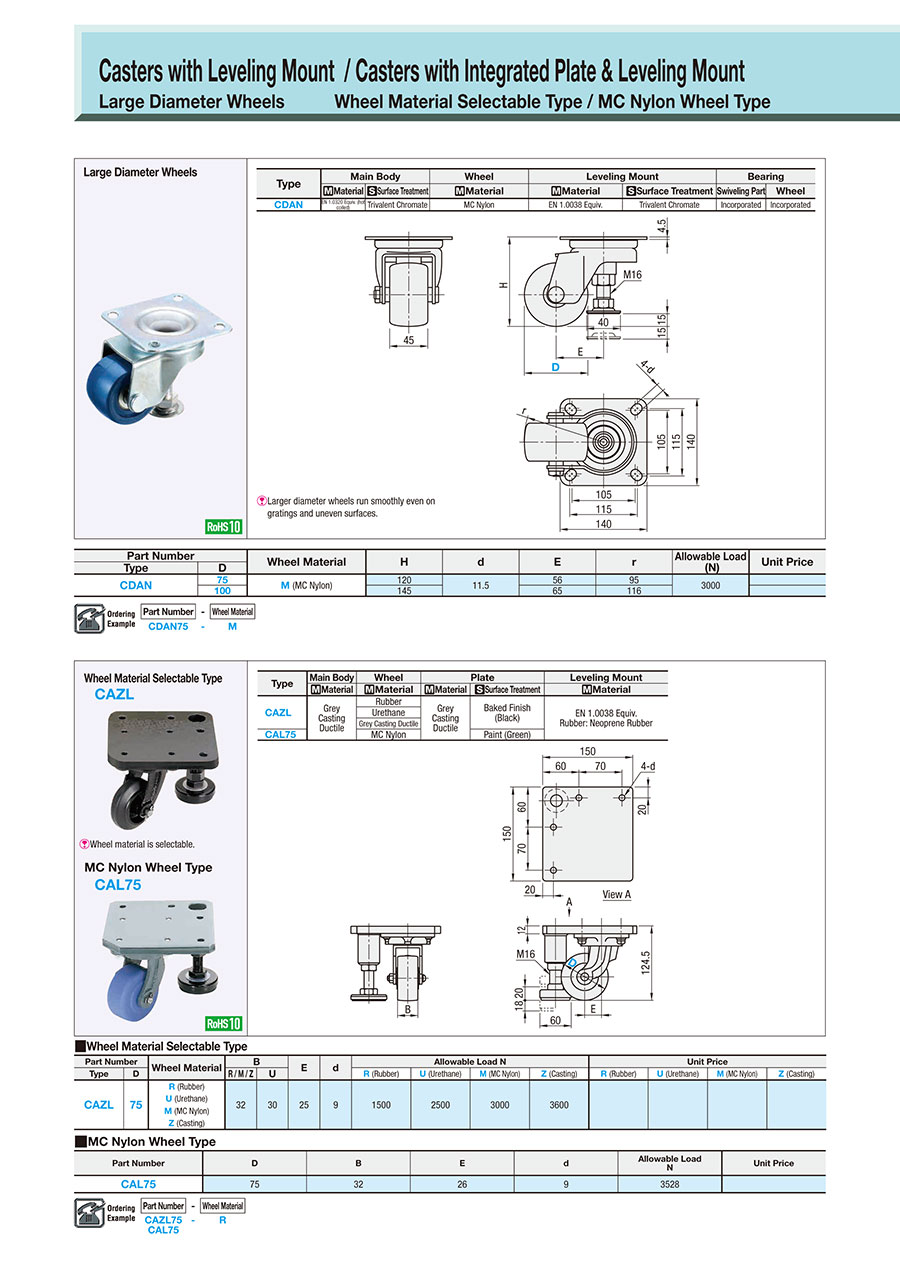

Castors with Adjustment Pads / Large Diameter Wheel
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
[Features] A large diameter wheel for smooth running in grid grooves.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Main Body | Wheel | Leveling Mount | Bearing | |||
| Material | Surface Treatment | Material | Material | Surface Treatment | Swiveling Part | Wheel | |
| CDAN | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | MC Nylon | EN 1.0038 Equiv. | Trivalent Chromate | Incorporated | Incorporated |
Specifications
| Part Number | - | Wheel Material |
| CDAN75 | - | M |
| Part Number | Wheel Material | H | d | E | r | Allowable Load (N) | Unit Price | |
| Type | D | |||||||
| CDAN | 75 | M (MC Nylon) | 120 | 11.5 | 56 | 95 | 3000 | |
| 100 | 145 | 65 | 116 | |||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
Basic information
| Caster Type | With Leveling Mounts | Load Range(daN) | 220.01 to 320.00 | Stopper | Not Provided |
|---|---|---|---|---|---|
| Allowable Load(daN) | 300 | Wheel Material | MC Nylon | Wheel Characteristics | Not Provided |
| Fitting Material | Steel | Mounting Hole Pitch, Long Length Direction(mm) | 105 | Mounting Hole Pitch, Short Length Direction(mm) | 115 |
| Plate Length(mm) | 140 | Plate Width(mm) | 140 | Wheel Width B(mm) | 45 |
| Load Category | Medium Load | Bearing in Wheel | Provided |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
