Low Pressure Fittings/With Seal Coating/Hexagon Nipple

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

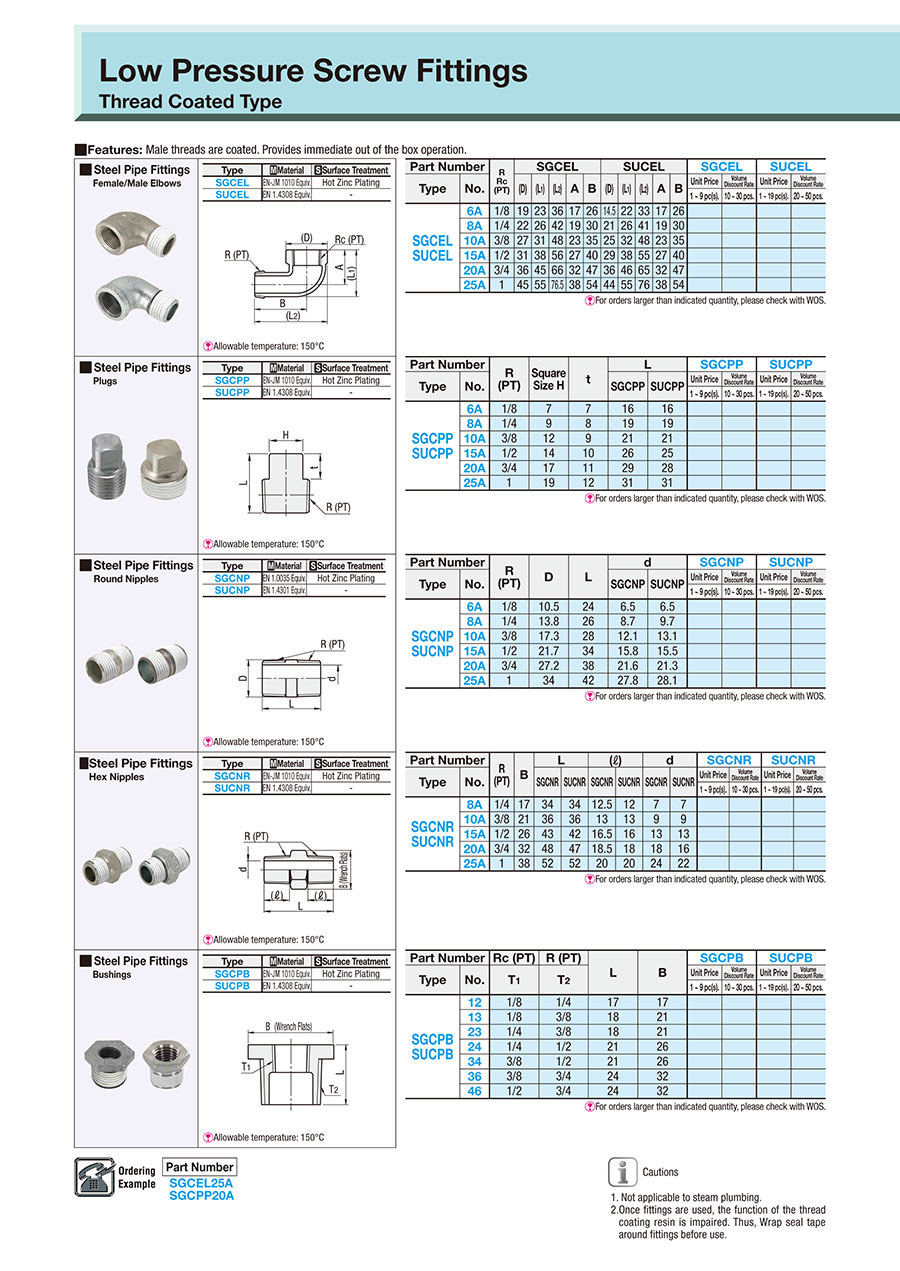

Low Pressure Fittings/With Seal Coating/Hexagon Nipple:Related Image

Type Material Surface Treatment
SGCNREN-JM 1010 Equiv.Hot Zinc Plating
SUCNREN 1.4308 Equiv.-

Specifications

Part Number
SGCEL25A
SGCPP20A
Part NumberR (PT)BL( ℓ )dSGCNRSUCNR
TypeNo.SGCNRSUCNRUnit PriceVolume Discount RateUnit PriceVolume Discount Rate
1 ~ 9 pc(s).10 ~ 30 pcs.1 ~ 19 pc(s).20 ~ 50 pcs.
SGCNR
SUCNR
8A1/417341277
10A3/821361399
15A1/22642161313
20A3/43247181816
25A13852202422
For orders larger than indicated quantity, please check with WOS.

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
SGCNR8A
SGCNR10A
SGCNR15A
SGCNR20A
SGCNR25A
SUCNR8A
SUCNR10A
SUCNR15A
SUCNR20A
SUCNR25A
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSMaterial Screw Nominal T1 Applicable Fluid Surface Treatment

2.50 €

Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.1/4B(8A)Pulsating Water, Static Flow Water / Air / Gas / OilHot Zinc Plating

2.50 €

Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.3/8B(10A)Pulsating Water, Static Flow Water / Air / Gas / OilHot Zinc Plating

2.70 €

Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.1/2B(15A)Pulsating Water, Static Flow Water / Air / Gas / OilHot Zinc Plating

3.00 €

Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.3/4B(20A)Pulsating Water, Static Flow Water / Air / Gas / OilHot Zinc Plating

3.90 €

Available Same day

Stock

-[Steel] EN-JM 1010 Equiv.1B(25A)Pulsating Water, Static Flow Water / Air / Gas / OilHot Zinc Plating

3.40 €

Available Same day

Stock

-[Stainless Steel] EN 1.4308 Equiv.1/4B(8A)-Not Provided

3.40 €

Available 3 Days 10[Stainless Steel] EN 1.4308 Equiv.3/8B(10A)-Not Provided

4.00 €

Available Same day

Stock

-[Stainless Steel] EN 1.4308 Equiv.1/2B(15A)-Not Provided

5.90 €

Available Same day

Stock

-[Stainless Steel] EN 1.4308 Equiv.3/4B(20A)-Not Provided

6.60 €

Available 3 Days -[Stainless Steel] EN 1.4308 Equiv.1B(25A)-Not Provided

Loading...

  1. 1

More Information

Cautions
1. Not applicable to steam plumbing.
2.Once fittings are used, the function of the thread coating resin is impaired. Thus, Wrap seal tape around fittings before use.

Basic information

Type Fitting Connection Type Thread <-> Thread, Equal Dia. Same Type Connecting Shape Hex Nipples
Connecting Thread Type (1) R Max. Operating Pressure(MPa) 2
