Long Sleeve Plungers

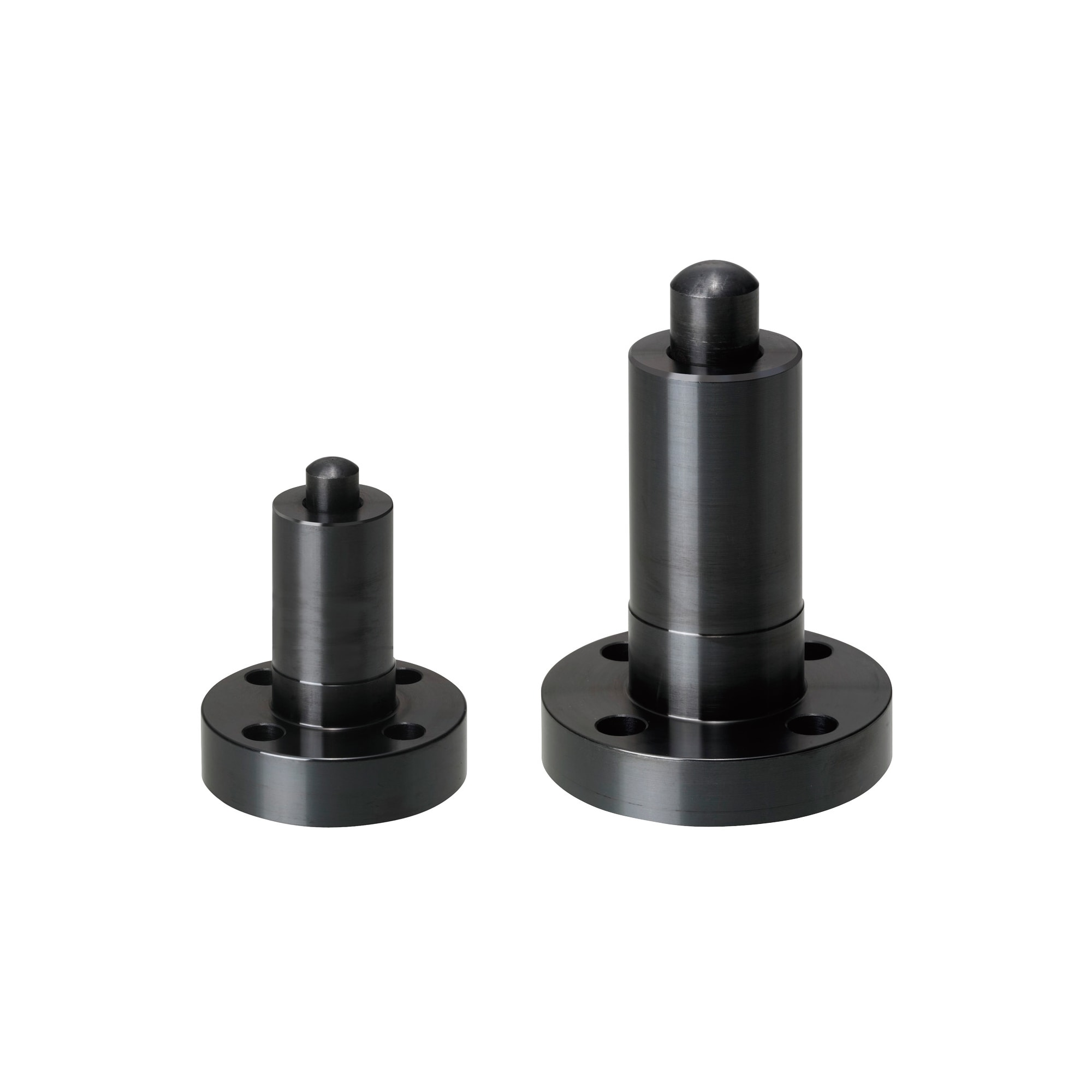

Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Pin | Main Body | Bushing | Spring | |||
| Material | Hardness | Surface Treatment | Material | Surface Treatment | Material | Material | |
| GLPN | EN 1.1191 Equiv. | HRC50~55 | Black Oxide | EN 1.1191 Equiv. | Black Oxide | High-Tensile Brass Alloy Solid Lubricant Embedded | SUS304WPB |
Specifications
| Part Number | - | S |
| GLPN8 GLPN16 | - - | 10 25 |
| Part Number | Stroke | R | D | L | H | T | ℓ | C | d1 | P.C.D | Load (N) | Unit Price | ||
| Type | d | S | min. | max. | 1~10 pc(s). | |||||||||
| GLPN | 6 | 5 | 4 | 14 | 32 | 30 | 8 | 5 | 1 | 4.5 | 22 | 18 | 29 | |
| 10 | 38 | 8 | 29 | |||||||||||
| 8 | 5 | 5 | 16 | 38 | 32 | 24 | 22 | 30 | ||||||
| 10 | 42 | 14 | 30 | |||||||||||
| 10 | 10 | 6 | 20 | 48 | 40 | 8 | 1.5 | 5.5 | 30 | 26 | 47 | |||
| 15 | 52 | 15 | 47 | |||||||||||
| 12 | 15 | 8 | 22 | 52 | 42 | 32 | 27 | 48 | ||||||
| 20 | 58 | 20 | 48 | |||||||||||
| 16 | 15 | 10 | 28 | 60 | 52 | 10 | 10 | 2 | 6.5 | 40 | 42 | 73 | ||
| 25 | 70 | 22 | 73 | |||||||||||
| 20 | 20 | 12 | 32 | 70 | 56 | 44 | 48 | 86 | ||||||
| 30 | 80 | 30 | 86 | |||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| GLPN6-5 |
| GLPN6-10 |
| GLPN8-5 |
| GLPN8-10 |
| GLPN10-10 |
| GLPN10-15 |
| GLPN12-15 |
| GLPN12-20 |
| GLPN16-15 |
| GLPN16-25 |
| GLPN20-20 |
| GLPN20-30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stroke (S) (mm) | Pin Dia. d (mm) | |
|---|---|---|---|---|---|---|---|
42.55 € | 1 | 7 Days | 10 | 5 | 6 | ||
44.75 € | 1 | 7 Days | 10 | 10 | 6 | ||
48.67 € | 1 | 7 Days | 10 | 5 | 8 | ||
50.39 € | 1 |
Same day
Stock | 10 | 10 | 8 | ||
54.77 € | 1 | 7 Days | 10 | 10 | 10 | ||
57.71 € | 1 | 7 Days | 10 | 15 | 10 | ||
66.52 € | 1 | 7 Days | 10 | 15 | 12 | ||
67.37 € | 1 | 7 Days | 10 | 20 | 12 | ||
84.98 € | 1 | 7 Days | 10 | 15 | 16 | ||
89.02 € | 1 | 7 Days | 10 | 25 | 16 | ||
101.24 € | 1 |
Same day
Stock | 10 | 20 | 20 | ||
106.62 € | 1 | 7 Days | 10 | 30 | 20 |
Loading...
Example of Use
Basic information
| Type | Guide Plungers |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
stopper bolts / hexagon socket at head / regular thread / MC-Nylon locking head / steel / chromated
MISUMI Standard Price : 7.56 € Shipping Days: Same day
