[Simplified Adjustments] Z-Axis/Feed Screw/Heavy Load

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

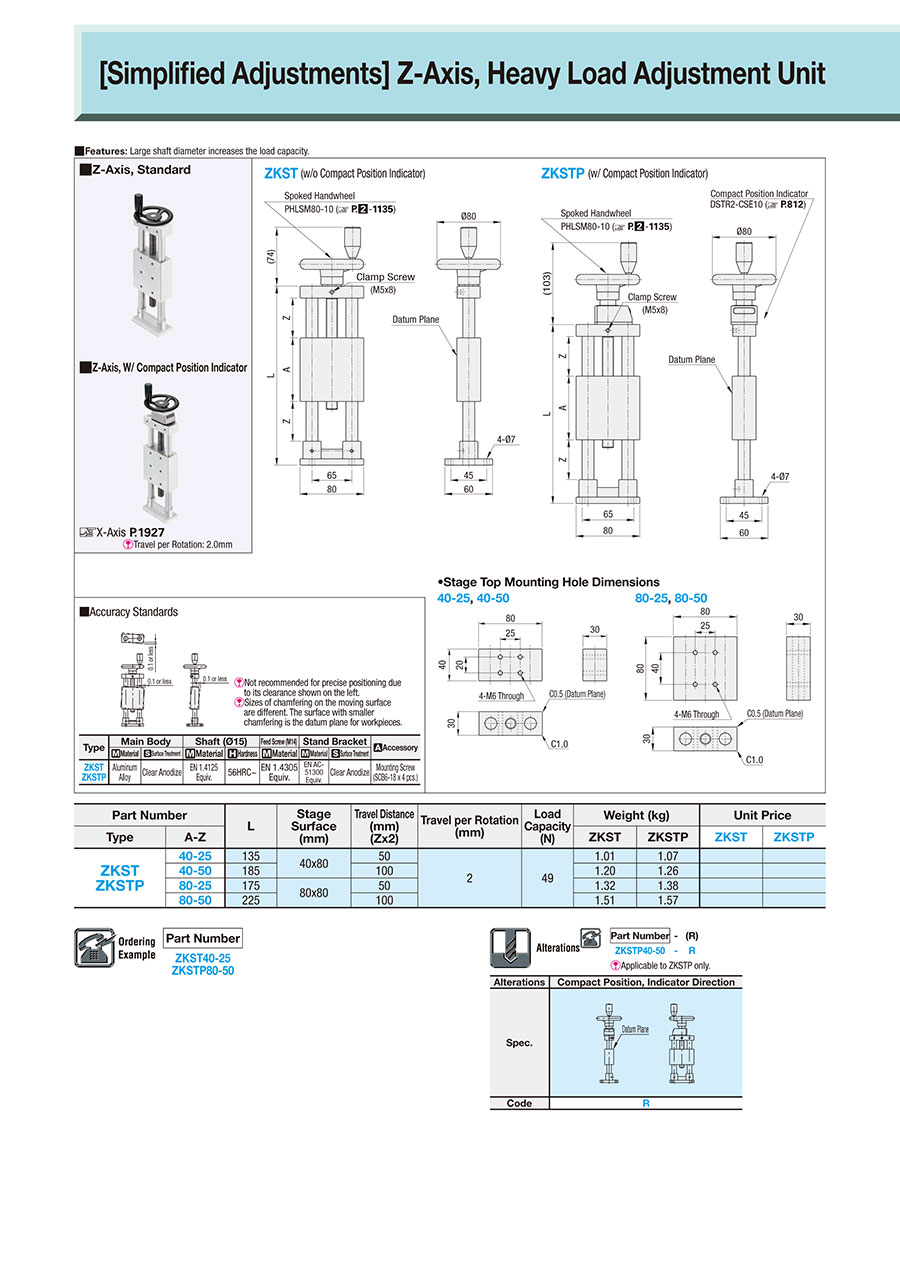

[Simplified Adjustments] Z-Axis/Feed Screw/Heavy Load:Related Image

TypeMain BodyShaft (Ø15)Feed Screw (M14)Stand BracketAccessory
MaterialSurface TreatmentMaterialHardnessMaterialMaterialSurface Treatment
ZKST
ZKSTP
Aluminum AlloyClear AnodizeEN 1.4125 Equiv.56HRC~EN 1.4305 Equiv.EN AC-51300 Equiv.Clear AnodizeMounting Screw (SCB6-18 x 4 pcs.)

Specifications

Part Number
ZKST40-25
ZKSTP80-50
Part NumberLStage Surface (mm)Travel Distance
(mm)
(Zx2)
Travel per Rotation (mm)Load Capacity (N)Weight (kg)Unit Price
TypeA-ZZKSTZKSTPZKSTZKSTP
ZKST
ZKSTP
40-2513540x80502491.011.07
40-501851001.201.26
80-2517580x80501.321.38
80-502251001.511.57

Alterations

[Simplified Adjustments] Z-Axis/Feed Screw/Heavy Load:Related Image

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
ZKST40-25
ZKST40-50
ZKST80-25
ZKST80-50
ZKSTP40-25
ZKSTP40-50
ZKSTP80-25
ZKSTP80-50
Part NumberStandard Unit PriceVolume DiscountShipping Days?Table Size (Length) L
(mm)
Stroke (Z Distance)
(mm)
L
(mm)
Indicators

176.00 €

Available Same day

Stock

40±25135Not Provided

181.00 €

Available Same day

Stock

40±50185Not Provided

218.00 €

Available 7 Days 80±25175Not Provided

223.00 €

Available Same day

Stock

80±50225Not Provided

226.00 €

Available Same day

Stock

40±25135Provided

231.00 €

Available Same day

Stock

40±50185Provided

268.00 €

Available 7 Days 80±25175Provided

273.00 €

Available Same day

Stock

80±50225Provided

Loading...

  1. 1

More Information

[Simplified Adjustments] Z-Axis/Feed Screw/Heavy Load:Related Image

Basic information

Load Capacity (Range)(N) 30.1-50 Feeding Method Feed Screw Table Size (Width) W(mm) 80
Table Material Aluminum Alloy Table Surface Treatment Clear Anodized Aluminum Guiding Mechanism Shaft Slide
Table Size (Thickness) H(mm) 30 Feeding Method (Feed Screw Type) Handle Operation Feeding Method (Feeding Pitch)(mm) 2.0
Ball Screw Dia.(Ø) 1
