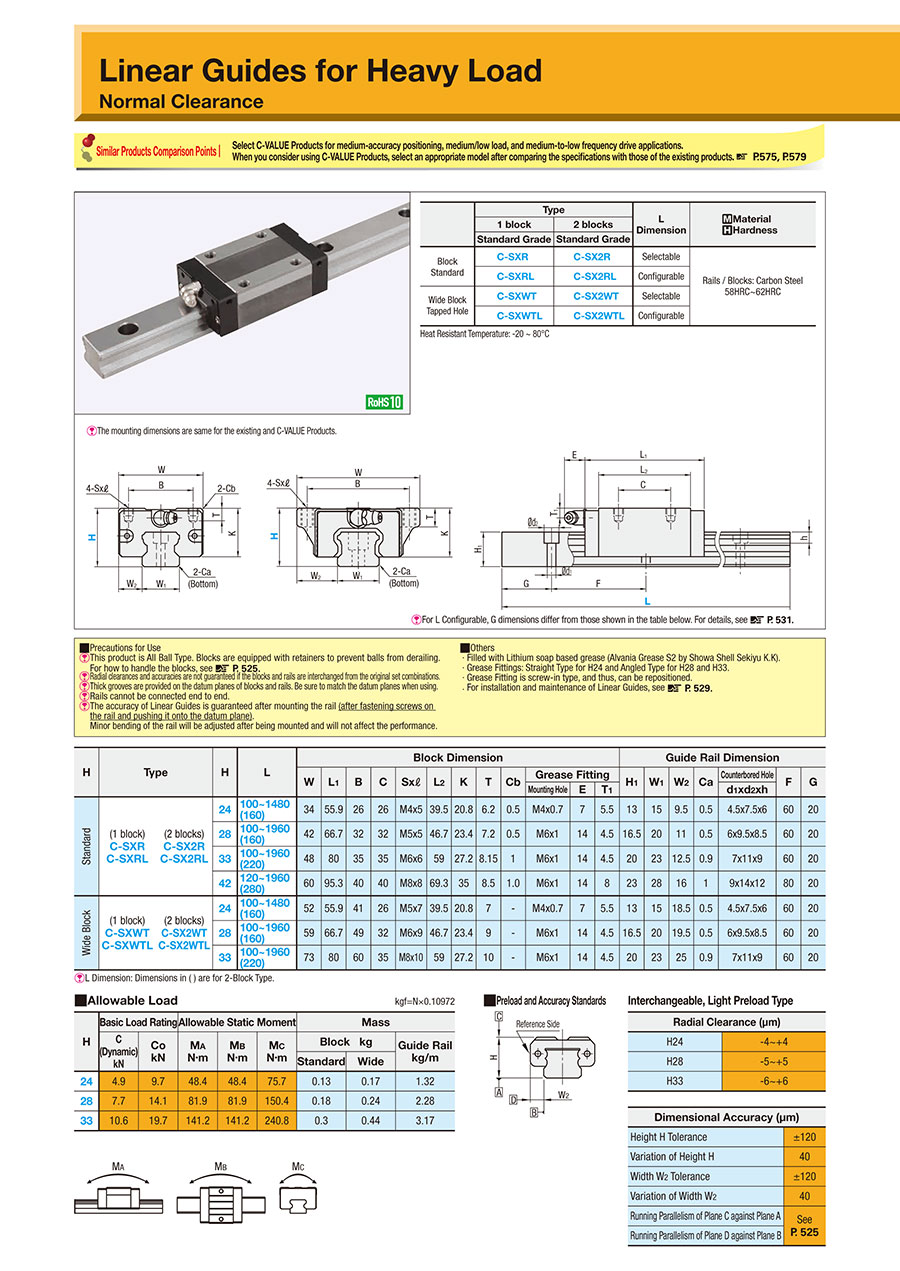

Linear Guides for Heavy Load/Normal Clearance/Cost Efficient Product

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Linear Guides for Heavy Load/Normal Clearance/Cost Efficient Product:Related Image

 TypeL DimensionMaterial
Hardness
1 block2 blocks
Standard GradeStandard Grade
Block
Standard
C-SXRC-SX2RSelectableRails / Blocks: Carbon Steel
58HRC~62HRC
C-SXRLC-SX2RLConfigurable
Wide Block
Tapped Hole
C-SXWTC-SX2WTSelectable
C-SXWTLC-SX2WTLConfigurable
Heat Resistant Temperature: -20 ~ 80°C

Specifications

Part Number-L
C-SXR28-880
C-SXWT28-880
HTypeHLBlock DimensionGuide Rail Dimension
WL1BCSxℓL2KTCbGrease FittingH1W1W2CaCounterbored HoleFG
Mounting HoleET1d1xd2xh
Standard(1 block)
C-SXR
C-SXRL
(2 blocks)
C-SX2R
C-SX2RL
24100~1480  (160)3455.92626M4x539.520.86.20.5M4x0.775.513159.50.54.5x7.5x66020
28160~1960  (220)4266.73232M5x546.​​723.47.20.5M6x1144.516.520110.56x9.5x8.56020
33160~1960  (220)48803535M6x65927.28.151M6x1144.5202312.50.97x11x96020
Wide Block(1 block)
C-SXWT
C-SXWTL
(2 blocks)
C-SX2WT
C-SX2WTL
24100~1480  (160)5255.94126M5x739.520.87-M4x0.775.5131518.50.54.5x7.5x66020
28160~1960  (220)5966.74932M6x946.723.49-M6x1144.516.52019.50.56x9.5x8.56020
33160~1960  (220)73806035M8x105927.210-M6x1144.52023250.97x11x96020
L Dimension: Dimensions in ( ) are for 2-Block Type.
HLUnit Price
1 block2 blocks
C-SXRC-SXWTC-SX2RC-SX2WT
24100  --
160
220
280
340
400
460
520
580
640
700
760
820
880
940
1000
1060
1120
1180
1240
1300
1360
1420
1480
28160  --
220
280
340
400
460
520
580
640
700
760
820
880
940
1000
1060
1120
1180
1240
1300
1360
1420
1480
1540
1600
1660
1720
1780
1840
1900
1960
33160  --
220
280
340
400
460
520
580
640
700
760
820
880
940
1000
1060
1120
1180
1240
1300
1360
1420
1480
1540
1600
1660
1720
1780
1840
1900
1960

■L Dimension Configurable Type (10mm Increment)
HUnit Price
1 block2 blocks
C-SXRLC-SXWTLC-SX2RLC-SX2WTL
24
28
33
For calculation of L Dimension Configurable Type (10mm Increment), add the above amount to the unit price of the Selectable Type longer than, and closest to this L Dimension Configurable Type.

Alterations

Linear Guides for Heavy Load/Normal Clearance/Cost Efficient Product:Related Image

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
C-SX2R24-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480]
C-SX2R28-[220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SX2R33-[220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SX2RL24-[170-1470/10]
C-SX2RL28-[230-1950/10]
C-SX2RL33-[230-1950/10]
C-SX2WT24-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480]
C-SX2WT28-[220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SX2WT33-[220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SX2WTL24-[170-1470/10]
C-SX2WTL28-[230-1950/10]
C-SX2WTL33-[230-1950/10]
C-SXR24-[100,​160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480]
C-SXR28-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SXR33-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SXRL24-[110-1470/10]
C-SXRL28-[170-1950/10]
C-SXRL33-[170-1950/10]
C-SXWT24-[100,​160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480]
C-SXWT28-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SXWT33-[160,​220,​280,​340,​400,​460,​520,​580,​640,​700,​760,​820,​880,​940,​1000,​1060,​1120,​1180,​1240,​1300,​1360,​1420,​1480,​1540,​1600,​1660,​1720,​1780,​1840,​1900,​1960]
C-SXWTL24-[110-1470/10]
C-SXWTL28-[170-1950/10]
C-SXWTL33-[170-1950/10]
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSBlock Shape Rail Width W1
(mm)
Assembly Height H
(mm)
The number of blocks Nominal Model Number Rolling Element Basic Load Rating Dynamic Rating
(N)
Basic Load Rating Static Rating
(N)
Allowable static moment MA
(N▪m)
Allowable static moment MB
(N▪m)
Allowable static moment MC
(N▪m)
L Dimension Type Rail Length
(mm)

-

7 Days Fully Compliant[Standard] Standard Block1524215Balls4900970048.448.475.7Selectable Type160 ~ 1480

-

7 Days Fully Compliant[Standard] Standard Block2028220Balls77001410081.981.9150.4Selectable Type220 ~ 1960

-

7 Days Fully Compliant[Standard] Standard Block2333225Balls1060019700141.2141.2240.8Selectable Type220 ~ 1960

-

7 Days Fully Compliant[Standard] Standard Block1524215Balls4900970048.448.475.7Configurable Type170 ~ 1470

-

7 Days Fully Compliant[Standard] Standard Block2028220Balls77001410081.981.9150.4Configurable Type230 ~ 1950

-

7 Days Fully Compliant[Standard] Standard Block2333225Balls1060019700141.2141.2240.8Configurable Type230 ~ 1950

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole1524215Balls4900970048.448.475.7Selectable Type160 ~ 1480

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2028220Balls77001410081.981.9150.4Selectable Type220 ~ 1960

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2333225Balls1060019700141.2141.2240.8Selectable Type220 ~ 1960

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole1524215Balls4900970048.448.475.7Configurable Type170 ~ 1470

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2028220Balls77001410081.981.9150.4Configurable Type230 ~ 1950

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2333225Balls1060019700141.2141.2240.8Configurable Type230 ~ 1950

-

7 Days Fully Compliant[Standard] Standard Block1524115Balls4900970048.448.475.7Selectable Type100 ~ 1480

-

7 Days Fully Compliant[Standard] Standard Block2028120Balls77001410081.981.9150.4Selectable Type160 ~ 1960

-

7 Days Fully Compliant[Standard] Standard Block2333125Balls1060019700141.2141.2240.8Selectable Type160 ~ 1960

-

7 Days Fully Compliant[Standard] Standard Block1524115Balls4900970048.448.475.7Configurable Type110 ~ 1470

-

7 Days Fully Compliant[Standard] Standard Block2028120Balls77001410081.981.9150.4Configurable Type170 ~ 1950

-

7 Days Fully Compliant[Standard] Standard Block2333125Balls1060019700141.2141.2240.8Configurable Type170 ~ 1950

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole1524115Balls4900970048.448.475.7Selectable Type100 ~ 1480

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2028120Balls77001410081.981.9150.4Selectable Type160 ~ 1960

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2333125Balls1060019700141.2141.2240.8Selectable Type160 ~ 1960

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole1524115Balls4900970048.448.475.7Configurable Type110 ~ 1470

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2028120Balls77001410081.981.9150.4Configurable Type170 ~ 1950

-

7 Days Fully Compliant[Wide] Wide Block Tapped Hole2333125Balls1060019700141.2141.2240.8Configurable Type170 ~ 1950
