Clamping Screws / Angle Type

Clamping Screws / Angle Type
  • Volume Discount

MISUMI

MISUMI

[Features] Slanted tip, bolt-shaped clamping screw.
  • Stock

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

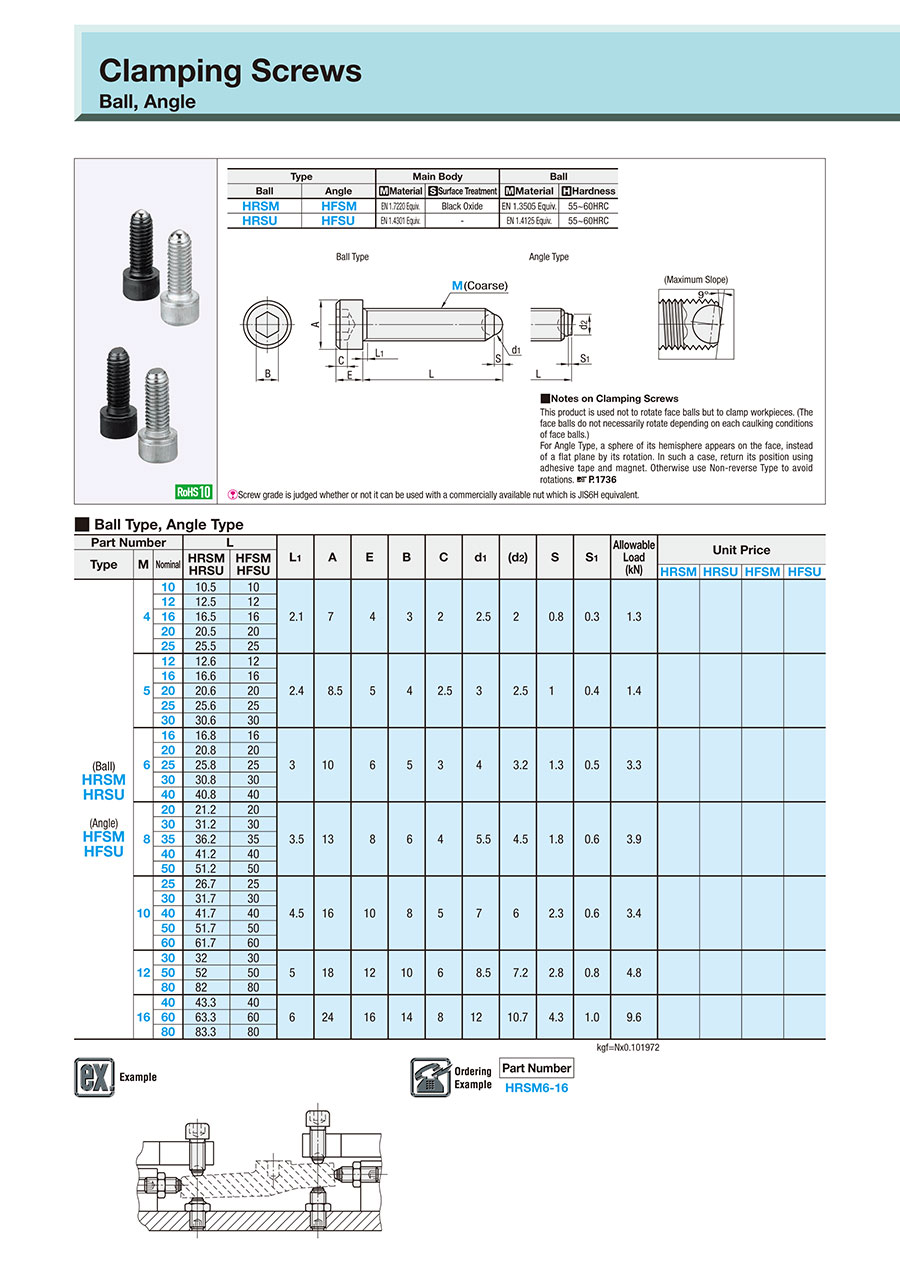

Clamping Screws/Angle Type:Related Image
■Notes on Clamping Screws
This product is used not to rotate face balls but to clamp workpieces. (The face balls do not necessarily rotate depending on each caulking conditions of face balls.)
For Angle Type, a sphere of its hemisphere appears on the face, instead of a flat plane by its rotation. In such a case, return its position using adhesive tape and magnet. Otherwise use Non-reverse Type to avoid rotations.>> P.1736

TypeMain BodyBall
MaterialSurface TreatmentMaterialHardness
HFSMEN 1.7220 Equiv.Black OxideEN 1.3505 Equiv.55~60HRC
HFSUEN 1.4301 Equiv.-EN 1.4125 Equiv.55~60HRC

Specifications

Part Number
HFSM6-16
■Angle Type
Part NumberLL1AEBC(d2)S1Allowable Load
(kN)
TypeMNominal
(Angle)
HFSM
HFSU		 410102.1 7 4 32 20.31.3
12122.1 7 4 32 20.31.3
16162.1 7 4 32 20.31.3
20202.1 7 4 32 20.31.3
25252.1 7 4 32 20.31.3
 512122.4 8.5 5 42.5 2.50.41.4
16162.4 8.5 5 42.5 2.50.41.4
20202.4 8.5 5 42.5 2.50.41.4
25252.4 8.5 5 42.5 2.50.41.4
30302.4 8.5 5 42.5 2.50.41.4
 61616310 6 53 3.20.53.3
2020310 6 53 3.20.53.3
2525310 6 53 3.20.53.3
3030310 6 53 3.20.53.3
4040310 6 53 3.20.53.3
 820203.513 8 64 4.50.63.9
30303.513 8 64 4.50.63.9
35353.513 8 64 4.50.63.9
40403.513 8 64 4.50.63.9
50503.513 8 64 4.50.63.9
1025254.51610 85 60.63.4
30304.51610 85 60.63.4
40404.51610 85 60.63.4
50504.51610 85 60.63.4
60604.51610 85 60.63.4
12303051812106 7.20.84.8
505051812106 7.20.84.8
808051812106 7.20.84.8
1640406241614810.71.0 9.6
60606241614810.71.0 9.6
80806241614810.71.0 9.6
kgf=Nx0.101972

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. Next >>
Part Number
HFSM4-10
HFSM4-12
HFSM4-16
HFSM4-20
HFSM4-25
HFSM5-12
HFSM5-16
HFSM5-20
HFSM5-25
HFSM5-30
HFSM6-16
HFSM6-20
HFSM6-25
HFSM6-30
HFSM6-40
HFSM8-20
HFSM8-30
HFSM8-35
HFSM8-40
HFSM8-50
HFSM10-25
HFSM10-30
HFSM10-40
HFSM10-50
HFSM10-60
HFSM12-30
HFSM12-50
HFSM12-80
HFSM16-40
HFSM16-60
HFSM16-80
HFSU4-10
HFSU4-12
HFSU4-16
HFSU4-20
HFSU4-25
HFSU5-12
HFSU5-16
HFSU5-20
HFSU5-25
HFSU5-30
HFSU6-16
HFSU6-20
HFSU6-25
HFSU6-30
HFSU6-40
HFSU8-20
HFSU8-30
HFSU8-35
HFSU8-40
HFSU8-50
HFSU10-25
HFSU10-30
HFSU10-40
HFSU10-50
HFSU10-60
HFSU12-30
HFSU12-50
HFSU12-80
HFSU16-40
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSThread Dia. Material (Thread) Material (Tip) Overall Length L
(mm)

3.19 €

1 Available 5 Days 104[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.10

3.19 €

1 Available 5 Days 104[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.12

3.19 €

1 Available Same day

Stock

104[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.16

3.19 €

1 Available 5 Days 104[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.20

3.19 €

1 Available 5 Days 104[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.25

3.19 €

1 Available 5 Days 105[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.12

3.19 €

1 Available 5 Days 105[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.16

3.19 €

1 Available 5 Days 105[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.20

3.19 €

1 Available 5 Days 105[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.25

3.19 €

1 Available 5 Days 105[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.30

2.95 €

1 Available 5 Days 106[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.16

2.95 €

1 Available 5 Days 106[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.20

2.95 €

1 Available 5 Days 106[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.25

2.95 €

1 Available 5 Days 106[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.30

2.95 €

1 Available Same day

Stock

106[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.40

3.45 €

1 Available 5 Days 108[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.20

3.45 €

1 Available 5 Days 108[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.30

3.45 €

1 Available 5 Days 108[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.35

3.45 €

1 Available 5 Days 108[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.40

3.45 €

1 Available 5 Days 108[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.50

3.68 €

1 Available 5 Days 1010[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.25

3.68 €

1 Available 5 Days 1010[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.30

3.68 €

1 Available 5 Days 1010[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.40

3.68 €

1 Available 5 Days 1010[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.50

3.68 €

1 Available 5 Days 1010[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.60

4.91 €

1 Available 5 Days 1012[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.30

4.91 €

1 Available Same day

Stock

1012[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.50

4.91 €

1 Available 5 Days 1012[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.80

6.63 €

1 Available 5 Days 1016[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.40

6.63 €

1 Available 5 Days 1016[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.60

6.63 €

1 Available 5 Days 1016[Steel] EN 1.7220 Equiv.EN 1.3505 Equiv.80

4.17 €

1 Available 5 Days 104[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.10

4.17 €

1 Available 5 Days 104[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.12

4.17 €

1 Available Same day

Stock

104[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.16

4.17 €

1 Available 5 Days 104[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.20

4.17 €

1 Available 5 Days 104[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.25

4.17 €

1 Available 5 Days 105[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.12

4.17 €

1 Available 5 Days 105[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.16

4.17 €

1 Available 5 Days 105[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.20

4.17 €

1 Available 5 Days 105[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.25

4.17 €

1 Available 5 Days 105[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.30

3.93 €

1 Available Same day

Stock

106[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.16

3.93 €

1 Available 5 Days 106[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.20

3.93 €

1 Available 5 Days 106[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.25

3.93 €

1 Available 5 Days 106[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.30

3.93 €

1 Available 5 Days 106[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.40

4.67 €

1 Available 5 Days 108[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.20

4.67 €

1 Available 5 Days 108[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.30

4.67 €

1 Available 5 Days 108[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.35

4.67 €

1 Available Same day

Stock

108[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.40

4.67 €

1 Available Same day

Stock

108[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.50

6.15 €

1 Available 5 Days 1010[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.25

6.15 €

1 Available 5 Days 1010[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.30

6.15 €

1 Available Same day

Stock

1010[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.40

6.15 €

1 Available 5 Days 1010[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.50

6.15 €

1 Available Same day

Stock

1010[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.60

7.61 €

1 Available 5 Days 1012[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.30

7.61 €

1 Available 5 Days 1012[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.50

7.61 €

1 Available 5 Days 1012[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.80

14.74 €

1 Available 5 Days 1016[Stainless Steel] EN 1.4567 Equiv.EN 1.4125 Equiv.40

Loading...

  1. 1
  2. 2
  3. Next >>

Example of Use

Clamping Screws/Angle Type:Related Image


Basic information

Tip Shape Flat Screw Type Screw Type
