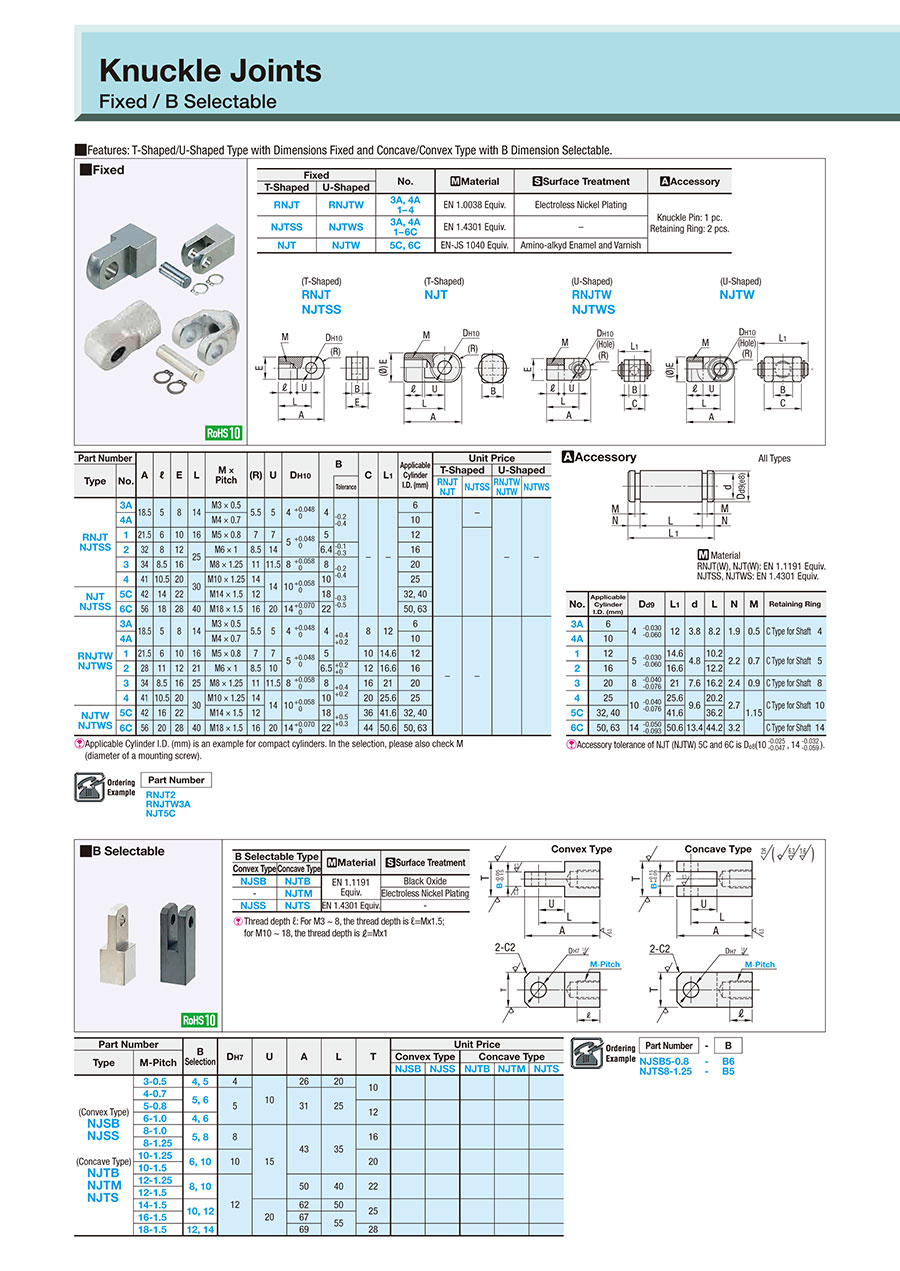

Knuckle Joints − Fixed
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Fixed | No. | Material | Surface Treatment | Accessory | |
| T-Shaped | U-Shaped | ||||
| RNJT | RNJTW | 3A, 4A 1–4 | EN 1.0038 Equiv. | Electroless Nickel Plating | Knuckle Pin: 1 pc. Retaining Ring: 2 pcs. |
| NJTSS | NJTWS | 3A, 4A 1–6C | EN 1.4301 Equiv. | – | |
| NJT | NJTW | 5C, 6C | EN-JS 1040 Equiv. | Amino-alkyd Enamel and Varnish | |
Specifications
| Part Number |
| RNJT2 RNJTW3A NJT5C |
| Part Number | A | ℓ | E | L | M × Pitch | (R) | U | DH10 | B | C | L1 | Applicable Cylinder I.D. (mm) | Unit Price | ||||||
| Type | No. | T-Shaped | U-Shaped | ||||||||||||||||
| Tolerance | RNJT NJT | NJTSS | RNJTW NJTW | NJTWS | |||||||||||||||
| RNJT NJTSS | 3A | 18.5 | 5 | 8 | 14 | M3 × 0.5 | 5.5 | 5 | 4 | +0.048 0 | 4 | -0.2 -0.4 | – | – | 6 | – | – | – | |
| 4A | M4 × 0.7 | 10 | |||||||||||||||||
| 1 | 21.5 | 6 | 10 | 16 | M5 × 0.8 | 7 | 7 | 5 | +0.048 0 | 5 | 12 | ||||||||
| 2 | 32 | 8 | 12 | 25 | M6 × 1 | 8.5 | 14 | 6.4 | -0.1 -0.3 | 16 | |||||||||
| 3 | 34 | 8.5 | 16 | M8 × 1.25 | 11 | 11.5 | 8 | +0.058 0 | 8 | -0.2 -0.4 | 20 | ||||||||
| 4 | 41 | 10.5 | 20 | 30 | M10 × 1.25 | 14 | 14 | 10 | +0.058 0 | 10 | 25 | ||||||||
| NJT NJTSS | 5C | 42 | 14 | 22 | M14 × 1.5 | 12 | 18 | -0.3 -0.5 | 32, 40 | ||||||||||
| 6C | 56 | 18 | 28 | 40 | M18 × 1.5 | 16 | 20 | 14 | +0.070 0 | 22 | 50, 63 | ||||||||
| RNJTW NJTWS | 3A | 18.5 | 5 | 8 | 14 | M3 × 0.5 | 5.5 | 5 | 4 | +0.048 0 | 4 | +0.4 +0.2 | 8 | 12 | 6 | – | – | ||
| 4A | M4 × 0.7 | 10 | |||||||||||||||||
| 1 | 21.5 | 6 | 10 | 16 | M5 × 0.8 | 7 | 7 | 5 | +0.048 0 | 5 | 10 | 14.6 | 12 | ||||||
| 2 | 28 | 11 | 12 | 21 | M6 × 1 | 8.5 | 10 | 6.5 | +0.2 +0 | 12 | 16.6 | 16 | |||||||
| 3 | 34 | 8.5 | 16 | 25 | M8 × 1.25 | 11 | 11.5 | 8 | +0.058 0 | 8 | +0.4 +0.2 | 16 | 21 | 20 | |||||
| 4 | 41 | 10.5 | 20 | 30 | M10 × 1.25 | 14 | 14 | 10 | +0.058 0 | 10 | 20 | 25.6 | 25 | ||||||
| NJTW NJTWS | 5C | 42 | 16 | 22 | M14 × 1.5 | 12 | 18 | +0.5 +0.3 | 36 | 41.6 | 32, 40 | ||||||||
| 6C | 56 | 20 | 28 | 40 | M18 × 1.5 | 16 | 20 | 14 | +0.070 0 | 22 | 44 | 50.6 | 50, 63 | ||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| NJT5C |
| NJT6C |
| NJTSS1 |
| NJTSS2 |
| NJTSS3 |
| NJTSS4 |
| NJTSS5C |
| NJTSS6C |
| NJTW5C |
| NJTW6C |
| NJTWS1 |
| NJTWS2 |
| NJTWS3 |
| NJTWS3A |
| NJTWS4 |
| NJTWS4A |
| NJTWS5C |
| NJTWS6C |
| RNJT1 |
| RNJT2 |
| RNJT3 |
| RNJT3A |
| RNJT4 |
| RNJT4A |
| RNJTW1 |
| RNJTW2 |
| RNJTW3 |
| RNJTW3A |
| RNJTW4 |
| RNJTW4A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Thread Size M (mm) | Thread Pitch (mm) | Material | Surface Treatment | Applicable Cylinder I.D. (Ø) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
17.19 € | 1 | Available | 5 Days | 10 | Convex | M14 | 1.5 | EN-JS 1040 Equiv. | Clear Zinc Chromate | 32, 40 | |
19.04 € | 1 | Available |
Same day
Stock | 10 | Convex | M18 | 1.5 | EN-JS 1040 Equiv. | Clear Zinc Chromate | 50, 63 | |
16.34 € | 1 | Available | 8 Days | 10 | Convex | M5 | 0.8 | EN 1.4301 Equiv. | Not Provided | 12 | |
16.96 € | 1 | Available | 8 Days | 10 | Convex | m6 | 1 | EN 1.4301 Equiv. | Not Provided | 16 | |
17.32 € | 1 | Available | 6 Days | 10 | Convex | M8 | 1.25 | EN 1.4301 Equiv. | Not Provided | 20 | |
17.81 € | 1 | Available | 8 Days | 10 | Convex | M10 | 1.25 | EN 1.4301 Equiv. | Not Provided | 25 | |
37.22 € | 1 | Available | 8 Days | 10 | Convex | M14 | 1.5 | EN 1.4301 Equiv. | Not Provided | 32, 40 | |
42.99 € | 1 | Available | 8 Days | 10 | Convex | M18 | 1.5 | EN 1.4301 Equiv. | Not Provided | 50, 63 | |
19.04 € | 1 | Available | 5 Days | 10 | Concave | M14 | 1.5 | EN-JS 1040 Equiv. | Clear Zinc Chromate | 32, 40 | |
22.36 € | 1 | Available | 5 Days | 10 | Concave | M18 | 1.5 | EN-JS 1040 Equiv. | Clear Zinc Chromate | 50, 63 | |
18.44 € | 1 | Available |
Same day
Stock | 10 | Concave | M5 | 0.8 | EN 1.4301 Equiv. | Not Provided | 12 | |
19.16 € | 1 | Available |
Same day
Stock | 10 | Concave | m6 | 1 | EN 1.4301 Equiv. | Not Provided | 16 | |
20.40 € | 1 | Available | 8 Days | 10 | Concave | M8 | 1.25 | EN 1.4301 Equiv. | Not Provided | 20 | |
18.31 € | 1 | Available |
Same day
Stock | 10 | Concave | M3 | 0.5 | EN 1.4301 Equiv. | Not Provided | 6 | |
22.11 € | 1 | Available | 8 Days | 10 | Concave | M10 | 1.25 | EN 1.4301 Equiv. | Not Provided | 25 | |
18.31 € | 1 | Available | 8 Days | 10 | Concave | M4 | 0.7 | EN 1.4301 Equiv. | Not Provided | 10 | |
45.21 € | 1 | Available | 8 Days | 10 | Concave | M14 | 1.5 | EN 1.4301 Equiv. | Not Provided | 32, 40 | |
47.04 € | 1 | Available | 8 Days | 10 | Concave | M18 | 1.5 | EN 1.4301 Equiv. | Not Provided | 50, 63 | |
14.16 € | 1 | Available | 5 Days | - | Convex | M5 | 0.8 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 12 | |
15.98 € | 1 | Available | 5 Days | - | Convex | M6 | 1 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 16 | |
17.60 € | 1 | Available | 5 Days | - | Convex | M8 | 1.25 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 20 | |
13.55 € | 1 | Available | 5 Days | - | Convex | M3 | 0.5 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 6 | |
20.43 € | 1 | Available | 5 Days | - | Convex | M10 | 1.25 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 25 | |
13.55 € | 1 | Available | 5 Days | - | Convex | M4 | - | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 10 | |
17.81 € | 1 | Available | 5 Days | - | Concave | M5 | 0.8 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 12 | |
19.21 € | 1 | Available | 5 Days | - | Concave | M6 | 1 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 16 | |
23.47 € | 1 | Available | 5 Days | - | Concave | M8 | 1.25 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 20 | |
16.60 € | 1 | Available | 5 Days | - | Concave | M3 | - | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 6 | |
24.88 € | 1 | Available | 5 Days | - | Concave | M10 | 1.25 | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 25 | |
16.60 € | 1 | Available | 5 Days | - | Concave | M4 | - | [Steel] EN 1.0038 Equiv. | Electroless Nickel Plating | 10 |
Loading...
Basic information
| Accessories Included | Included |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
-
Convex -
Concave
-
-
Thread Size M(mm)
-
Thread Pitch(mm)
-
Material
- Steel
- EN 1.4301 Equiv.
- EN-JS 1040 Equiv.
- Steel
-
Surface Treatment
- Clear Zinc Chromate
- Electroless Nickel Plating
- Not Provided
-
Applicable Cylinder I.D.(Ø)
- 6
- 10
- 12
- 16
- 20
- 25
- 32, 40
- 50, 63
-
Type
- NJT
- NJTSS
- NJTW
- NJTWS
- RNJT
- RNJTW
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
