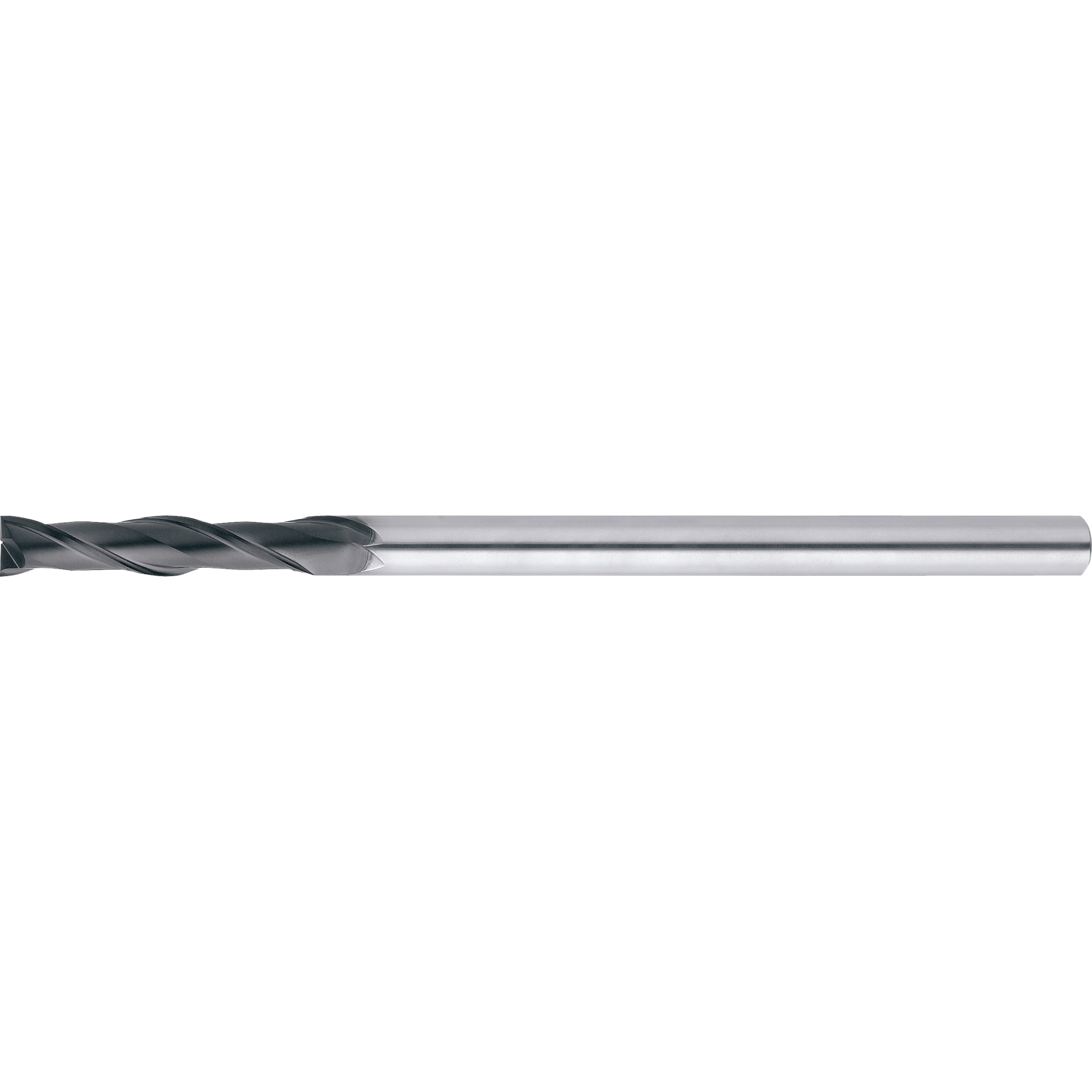

Diamond Coated Carbide Square End Mill for Graphite Machining, 2-Flute / Long Model
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- DIA
- Graphite
- 2 Flutes
- L (Long)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| DAC-GREM2L1 |
| DAC-GREM2L2 |
| DAC-GREM2L3 |
| DAC-GREM2L4 |
| DAC-GREM2L6 |
| DAC-GREM2L8 |
| DAC-GREM2L10 |
| DAC-GREM2L12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (D) (φ) | Flute Length (ℓ) (mm) | Shank Diameter (d) (mm) | Overall Length (L) (mm) | Length Under Neck (ℓ1) (mm) | Under Neck Diameter d1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
155.87 € | 1 | Available | 5 Days | 1 | 5 | 4 | 75 | 10 | 0.9 | |
155.87 € | 1 | Available | 5 Days | 2 | 10 | 4 | 75 | 20 | 1.9 | |
127.70 € | 1 | Available | 5 Days | 3 | 15 | 4 | 75 | 30 | 2.9 | |
94.44 € | 1 | Available | 5 Days | 4 | 20 | 4 | 100 | 40 | 3.9 | |
99.52 € | 1 | Available | 5 Days | 6 | 30 | 6 | 150 | 60 | 5.8 | |
141.76 € | 1 | Available | 5 Days | 8 | 40 | 8 | 160 | 70 | 7.8 | |
185.16 € | 1 | Available | 5 Days | 10 | 50 | 10 | 180 | 80 | 9.7 | |
207.09 € | 1 | Available | 5 Days | 12 | 60 | 12 | 200 | 85 | 11.7 |
Loading...
Specifications
| Model Number | Length Under Neck ℓ1 |
Flute Length ℓ |
Under Neck Diameter d1 |
Overall Length L |
Shank Diameter d |
|
| Outer Diameter D |
||||||
| DAC-GREM2L | 1 | 10 | 5 | 0.9 | 75 | 4 |
| 2 | 20 | 10 | 1.9 | 75 | 4 | |
| 3 | 30 | 15 | 2.9 | 75 | 4 | |
| 4 | 40 | 20 | 3.9 | 100 | 4 | |
| 6 | 60 | 30 | 5.8 | 150 | 6 | |
| 8 | 70 | 40 | 7.8 | 160 | 8 | |
| 10 | 80 | 50 | 9.7 | 180 | 10 | |
| 12 | 85 | 60 | 11.7 | 200 | 12 |
For Cutting Conditions, Refer to >>Click here.
More Information
● The surface has a diamond coating with a hardness comparable to that of natural diamonds, delivering extraordinary durability when used with graphite, resin, aluminum, copper and other materials.
● The long flute length even allows for deep carving.
Basic information
| Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin | Number of Flutes(sheet) | 2 | Model | Square |
|---|---|---|---|---|---|
| Coating | Diamond Coat | Processing Applications | Flat Surface / Side Surface / Groove / Inclined Cutting | Geometry | Sharp Corner |
| Torsion Angle (θ) | Standard Helix (30 to 40°) | Additional Classification | Stocked Product | Tolerance of OD(mm) | 0 ~ -0.02 |
| ● Inventory Product □ Manufacturer Product | ● |
Configure
Basic Attributes
-
Outer Diameter (D)(φ)
-
Flute Length (ℓ)(mm)
-
Shank Diameter (d)(mm)
-
Overall Length (L)(mm)
-
Length Under Neck (ℓ1)(mm)
-
Type
- DAC-GREM2L
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
