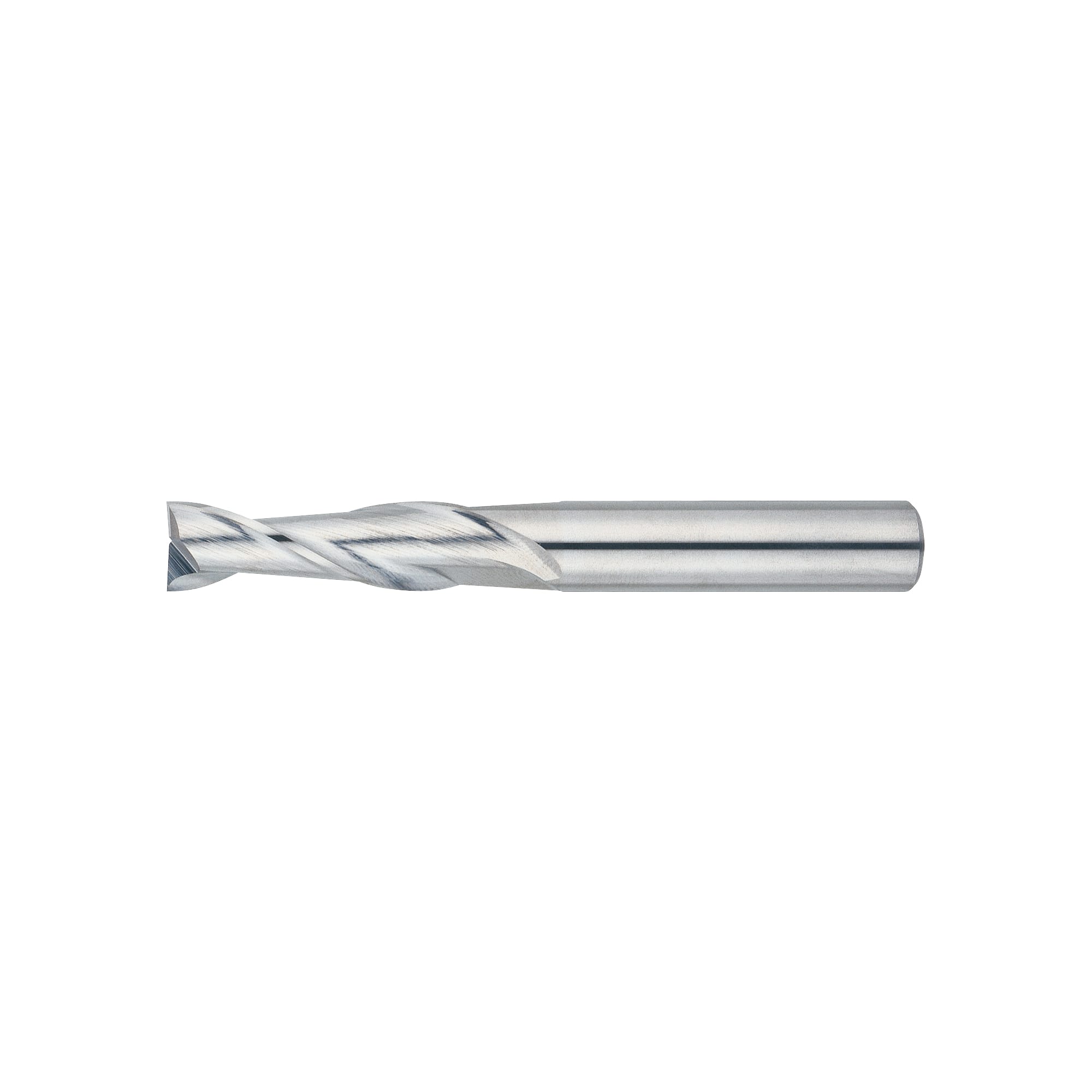

Carbide Square End Mill for Resin Machining, 2-Flute / Regular Model
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Non-Coated
- Resin
- 2 Flutes
- R (Regular)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (D) (φ) | Flute Length (ℓ) (mm) | Shank Diameter (d) (mm) | Overall Length (L) (mm) | Figure | |
|---|---|---|---|---|---|---|---|---|---|
38.96 € | 1 | Available | 5 Days | 0.3 | 0.9 | 4 | 45 | 1 | |
40.09 € | 1 | Available | 5 Days | 0.4 | 1.2 | 4 | 45 | 1 | |
28.27 € | 1 | Available | 5 Days | 0.5 | 1.5 | 4 | 45 | 1 | |
32.17 € | 1 | Available | 5 Days | 0.6 | 1.8 | 4 | 45 | 1 | |
31.85 € | 1 | Available | 5 Days | 0.7 | 2.1 | 4 | 45 | 1 | |
31.43 € | 1 | Available | 5 Days | 0.8 | 2.4 | 4 | 45 | 1 | |
18.68 € | 1 | Available | 5 Days | 1 | 3 | 4 | 50 | 1 | |
22.35 € | 1 | Available | 5 Days | 1.2 | 3.6 | 4 | 50 | 1 | |
22.82 € | 1 | Available | 5 Days | 1.5 | 4.5 | 4 | 50 | 1 | |
20.58 € | 1 | Available | 5 Days | 2 | 6 | 4 | 55 | 1 | |
26.47 € | 1 | Available | 5 Days | 2.5 | 7.5 | 4 | 55 | 1 | |
27.64 € | 1 | Available | 5 Days | 3 | 9 | 3 | 60 | 2 | |
28.54 € | 1 | Available | 5 Days | 3 | 9 | 6 | 60 | 1 | |
29.89 € | 1 | Available | 5 Days | 4 | 12 | 4 | 60 | 2 | |
28.54 € | 1 | Available | 5 Days | 4 | 12 | 6 | 60 | 1 | |
33.83 € | 1 | Available | 5 Days | 5 | 15 | 6 | 60 | 1 | |
29.77 € | 1 | Available | 5 Days | 6 | 18 | 6 | 60 | 2 | |
64.32 € | 1 | Available | 5 Days | 8 | 24 | 8 | 80 | 2 | |
82.38 € | 1 | Available | 5 Days | 10 | 30 | 10 | 80 | 2 | |
140.92 € | 1 | Available | 5 Days | 12 | 36 | 12 | 90 | 2 | |
112.10 € | 1 | Available | 5 Days | 16 | 48 | 16 | 110 | 2 |
Loading...
Specifications
| Model Number | Shank Diameter d |
Flute Length ℓ |
Overall Length L |
Figure | ||
| Outer Diameter D |
Shank Diameter d |
|||||
| SEC-PLEM2R | 0.3 | — | 4 | 0.9 | 45 | 1 |
| 0.4 | — | 4 | 1.2 | 45 | 1 | |
| 0.5 | — | 4 | 1.5 | 45 | 1 | |
| 0.6 | — | 4 | 1.8 | 45 | 1 | |
| 0.7 | — | 4 | 2.1 | 45 | 1 | |
| 0.8 | — | 4 | 2.4 | 45 | 1 | |
| 0.9 | — | 4 | 2.7 | 45 | 1 | |
| 1 | — | 4 | 3 | 50 | 1 | |
| 1.2 | — | 4 | 3.6 | 50 | 1 | |
| 1.5 | — | 4 | 4.5 | 50 | 1 | |
| 2 | — | 4 | 6 | 55 | 1 | |
| 2.5 | — | 4 | 7.5 | 55 | 1 | |
| 3 | 6 | 6 | 9 | 60 | 1 | |
| 3 | 3 | 3 | 9 | 60 | 2 | |
| 4 | 6 | 6 | 12 | 60 | 1 | |
| 4 | 4 | 4 | 12 | 60 | 2 | |
| 5 | — | 6 | 15 | 60 | 1 | |
| 6 | — | 6 | 18 | 60 | 2 | |
| 8 | — | 8 | 24 | 80 | 2 | |
| 10 | — | 10 | 30 | 80 | 2 | |
| 12 | — | 12 | 36 | 90 | 2 | |
| 16 | — | 16 | 48 | 110 | 2 |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a outer diameter (D) and shank diameter (d).
For Cutting Conditions, Refer to >>Click here.
More Information
● A cutting edge shape that is ideal for machining resin.
● It is suitable for machining aluminum, copper and other non-ferrous materials.
Basic information
| Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin | Number of Flutes(sheet) | 2 | Model | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Processing Applications | Flat Surface / Side Surface / Groove / Inclined Cutting | Geometry | Sharp Corner |
| Torsion Angle (θ) | Standard Helix (30 to 40°) | Additional Classification | Stocked Product | Tolerance of OD(mm) | 0 ~ -0.02 |
| ● Inventory Product □ Manufacturer Product | ● |
Configure
Basic Attributes
-
Outer Diameter (D)(φ)
-
Flute Length (ℓ)(mm)
-
Shank Diameter (d)(mm)
-
Overall Length (L)(mm)
-
Type
- SEC-PLEM2R
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
