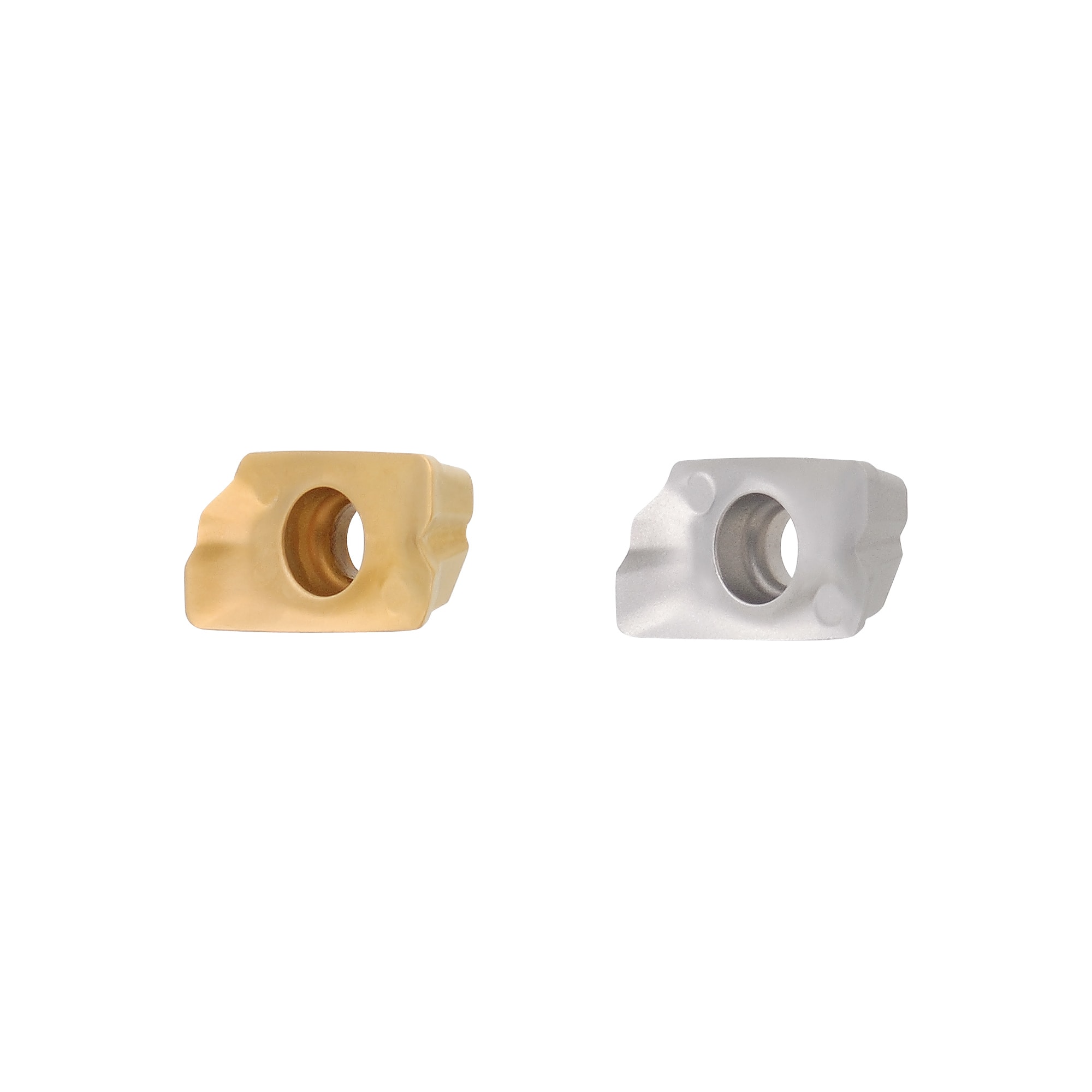

High Efficiency End Mill Insert
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Product Details:
Manufacturer part number: XDKT11T308-R50-PC260
Brand: MISUMI
Price: 7.92 €
Delivery time: 5 Days
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
XDKT11T308-R50-PC260
Part Number
|
|---|
| XDKT11T308-R50-PC260 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | |
|---|---|---|---|---|
7.92 € | 1 | Available | 5 Days |
Loading...
Specification Table
| Model Number | Breaker | Material | Nose R R | Wiper Width ℓ1 | ¥ Unit Price Request quotation for orders of 300 pcs or more | ||||||||||
| Carbide Coating | Carbide (K Type) | ||||||||||||||
| For Cast Iron | For Carbon Steel / Alloy Steel | Stainless Steel For Steel | For Nickel Alloy | For Titanium | For Aluminum | For Aluminum (Precision Grade) | |||||||||
| K320 | PC260 | PP120 | MP220 | SC515 | SC520 | N416 | N216 | 1 to 9 pcs | 10 to 49 pcs | 50 to 99 pcs | 100 to 299 pcs | ||||
| XDKT11T308 | R50 | ● | ● | ● | ● | 0.8 | 1.4 | 640 | 576 | 547 | 518 | ||||
| M50 | ● | ● | ● | 640 | 576 | 547 | 518 | ||||||||
| F50 | ● | ● | ● | 640 | 576 | 547 | 518 | ||||||||
| F40 | ● | ● | 1,470 | 1,430 | 1,400 | 1,320 | |||||||||
| XDKT11T304 | F20 | ● | 0.4 | 1.8 | 780 | 702 | 667 | 632 | |||||||
| XDKT11T308 | ● | 0.8 | 1.4 | 780 | 702 | 667 | 632 | ||||||||
| XDKT11T320 | ● | 2 | 780 | 702 | 667 | 632 | |||||||||
| XDHT11T308 | ALP | ● | 0.8 | 2,070 | 2,010 | 1,970 | 1,860 | ||||||||
| XDHT11T316 | ● | 1.6 | 2,070 | 2,010 | 1,970 | 1,860 | |||||||||
| XDHT11T325 | ● | 2.5 | 2,070 | 2,010 | 1,970 | 1,860 | |||||||||
[ ! ] When using tips of nose R2.0 or higher, the body must be modified.
Click here for insert and coating material guide
Specifications/Overview
● Breakers by work material / Material recommendation table
Basic information
| Shape (First Character in Model Number) | Others | Clearance Angle | D (15°) | Work Material | Steel / Stainless Steel / Cast Iron |
|---|---|---|---|---|---|
| No. of Usable Corners | 2 | Breaker | R50 | Material - Carbide Coating | For Carbon Steel / Alloy Steel PC260 |
| Nose R (R)(mm) | 0.8 | Wiper Width ℓ1(mm) | 1.4 |
This page is High Efficiency End Mill Insert, part number XDKT11T308-R50-PC260.
You can find the detail information about specifications and dimensions on part number XDKT11T308-R50-PC260.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
