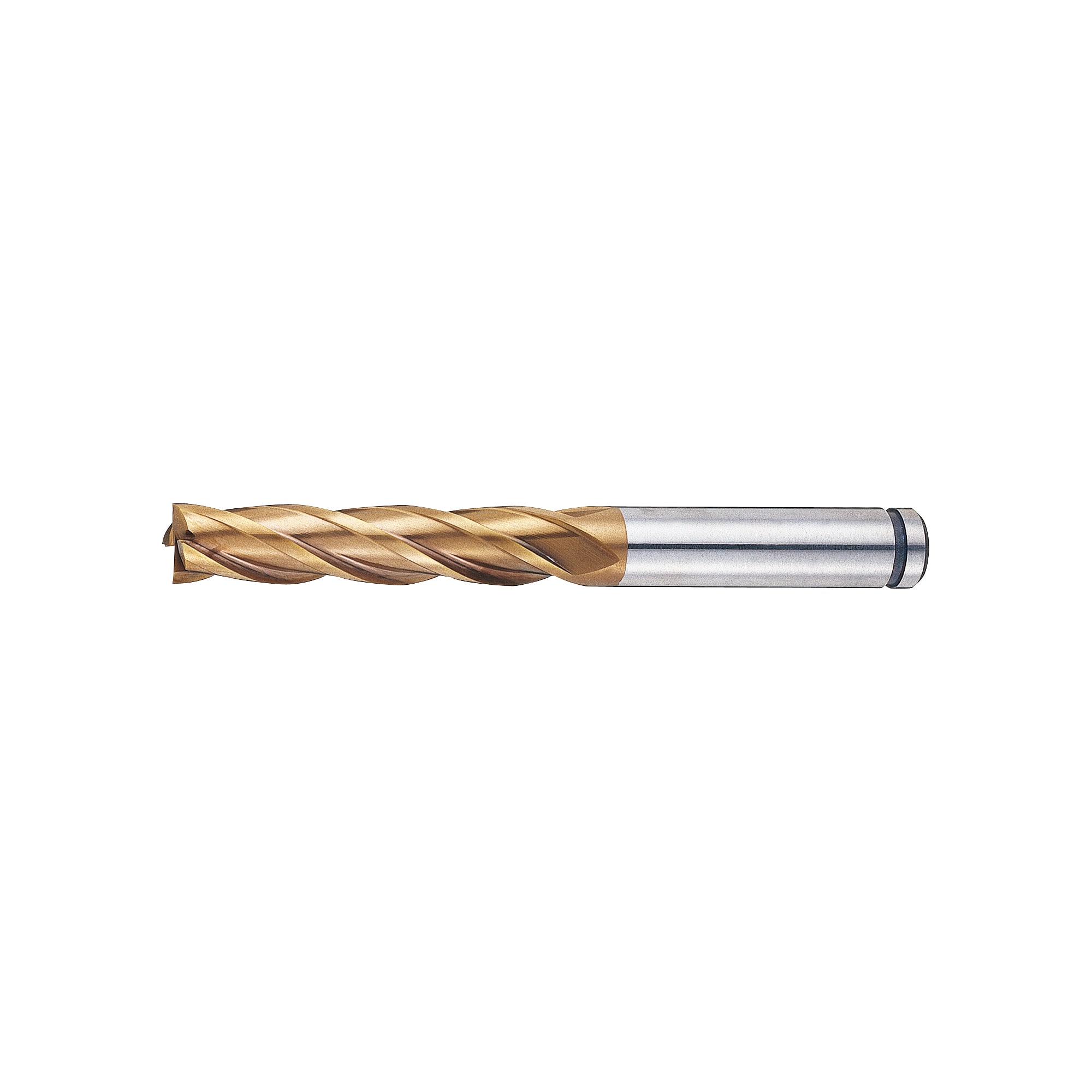

AS Coated Powdered High-Speed Steel Square End Mill, 4-Flute, Long
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
-Achieves high resistance in a wide range of materials, from raw materials to heat-treated steel
-It has a coating with high oxidation resistance and high hardness and achieves long life. Effective in high speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.
- AS
- 4 Flutes
- L (Long)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| ASPM-EM4L3 |
| ASPM-EM4L4 |
| ASPM-EM4L5 |
| ASPM-EM4L6 |
| ASPM-EM4L7 |
| ASPM-EM4L8 |
| ASPM-EM4L9 |
| ASPM-EM4L10 |
| ASPM-EM4L12 |
| ASPM-EM4L14 |
| ASPM-EM4L16 |
| ASPM-EM4L18 |
| ASPM-EM4L20 |
| ASPM-EM4L25 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (D) (φ) | Flute Length (ℓ) (mm) | Shank Diameter (d) (mm) | Overall Length (L) (mm) | Length Under Neck (θ) | |
|---|---|---|---|---|---|---|---|---|---|
27.39 € | 1 | Available | 5 Days | 3 | 15 | 6 | 60 | 15° | |
26.37 € | 1 | Available | 5 Days | 4 | 20 | 8 | 60 | 15° | |
27.69 € | 1 | Available | 5 Days | 5 | 25 | 8 | 60 | 15° | |
27.62 € | 1 | Available | 5 Days | 6 | 25 | 8 | 60 | 15° | |
32.03 € | 1 | Available | 5 Days | 7 | 35 | 10 | 75 | 15° | |
32.03 € | 1 | Available | 5 Days | 8 | 35 | 10 | 75 | 15° | |
36.98 € | 1 | Available | 5 Days | 9 | 45 | 10 | 90 | 15° | |
34.76 € | 1 | Available | 5 Days | 10 | 45 | 10 | 90 | - | |
46.21 € | 1 | Available | 5 Days | 12 | 55 | 12 | 105 | - | |
73.56 € | 1 | Available | 5 Days | 14 | 55 | 16 | 110 | 15° | |
76.38 € | 1 | Available | 5 Days | 16 | 65 | 16 | 120 | - | |
98.27 € | 1 | Available | 5 Days | 18 | 65 | 16 | 120 | - | |
107.32 € | 1 | Available | 5 Days | 20 | 75 | 20 | 140 | - | |
102.44 € | 1 | Available | 5 Days | 25 | 90 | 25 | 160 | - |
Loading...
Specifications
Model Number
ASPM-EM4L
| Outer Diameter D |
Flute Length ℓ |
Overall Length L |
Under Neck Angle θ |
Shank Diameter d |
| 3 | 15 | 60 |
15° |
6 |
| 4 | 20 | 60 |
15° |
8 |
| 5 | 25 | 60 |
15° |
8 |
| 6 | 25 | 60 |
15° |
8 |
| 7 | 35 | 75 |
15° |
10 |
| 8 | 35 | 75 |
15° |
10 |
| 9 | 45 | 90 |
15° |
10 |
| 10 | 45 | 90 | — | 10 |
| 12 | 55 | 105 | — | 12 |
| 14 | 55 | 110 |
15° |
16 |
| 16 | 65 | 120 | — | 16 |
| 18 | 65 | 120 | — | 16 |
| 20 | 75 | 140 | — | 20 |
| 25 | 90 | 160 | — | 25 |
For Cutting Conditions, Refer to >>Click here.
Basic information
| Work Material | General Steel / Heat-Treated Steel / Stainless Steel / Cast Iron / Aluminum / Copper | Type of Flute | Square | Number of Flutes(sheet) | 4 |
|---|---|---|---|---|---|
| Tool Material Type | Powdered High-Speed Steel | Processing Applications | Flat Surface / Side Surface / Groove / Countersunk | Coating | For High Hardness (Silicone-Based) |
| Torsion Angle (θ) | Standard Helix (30 to 40°) | Base-Blade Availability | Included | Tolerance(mm) | 0 ~ -0.02 |
Configure
Basic Attributes
-
Outer Diameter (D)(φ)
-
Flute Length (ℓ)(mm)
-
Shank Diameter (d)(mm)
-
Overall Length (L)(mm)
-
Type
- ASPM-EM4L
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
