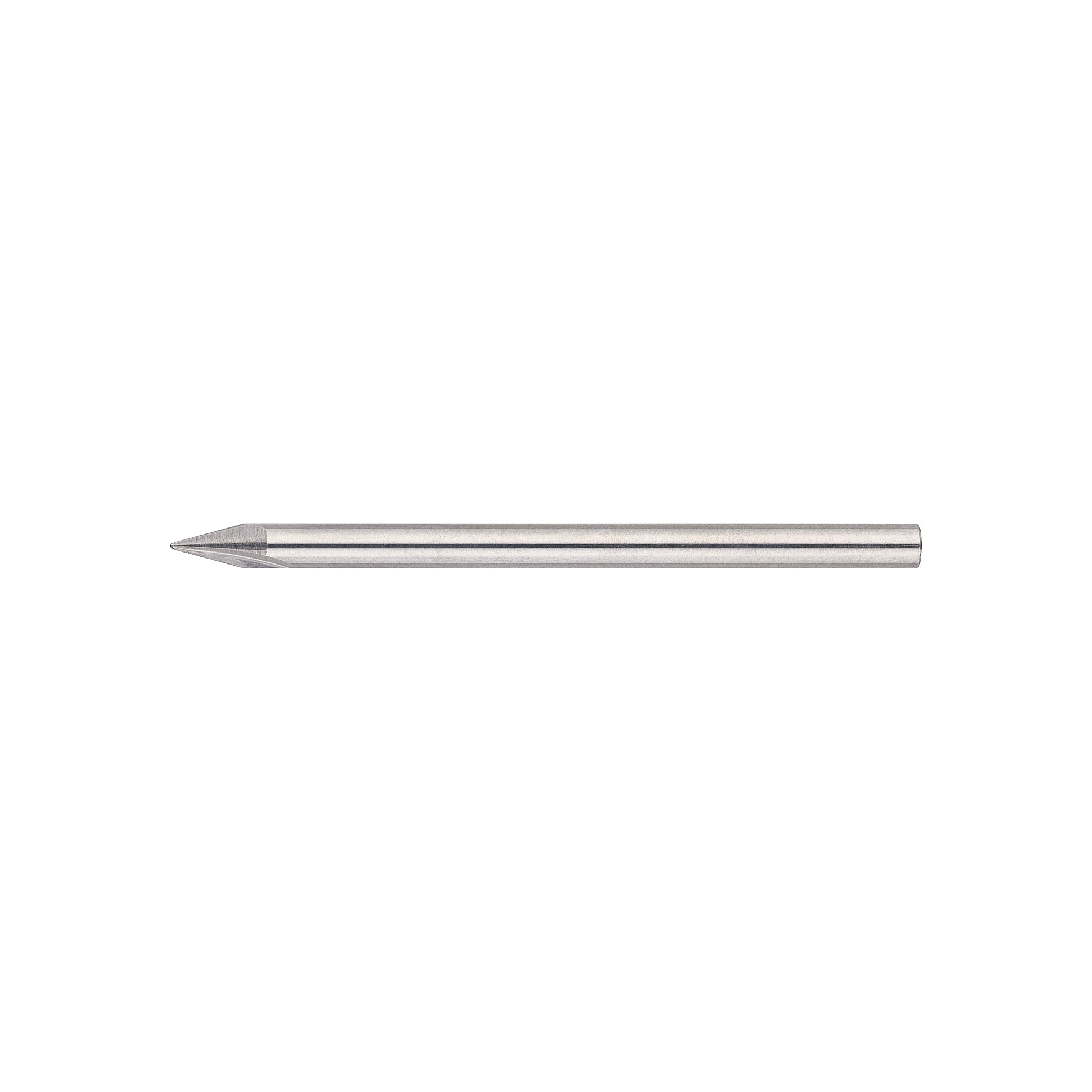

Carbide Drill for Submarine Gate, Tip Ball Type / 2-Flute / Straight Edge

Carbide Drill for Submarine Gate, Tip Ball Type / 2-Flute / Straight Edge

Click on this image to zoom in.

Click on this image to zoom in.

Tip ball type and bottom blade equipped type for submarine gates

PDF

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Carbide Drill for Submarine Gate, Tip Ball Type / 2-Flute / Straight Edge: Related Image



Part Number
C-SMBGC6-[0.3-1/0.1]-[20,​30,​45,​60]
C-SMBGC8-[0.3-1/0.1]-[20,​30,​45,​60]
C-SMBGC10-[0.3-1/0.1]-[20,​30,​45,​60]
Part NumberStandard Unit PriceVolume DiscountShipping Days?#3 #4

-

7 Days 0.3 ~ 120 ~ 60

-

7 Days 0.3 ~ 120 ~ 60

-

7 Days 0.3 ~ 120 ~ 60

Loading...

  1. 1

Specification Table

Carbide Drill for Submarine Gate, Tip Ball Type / 2-Flute / Straight Edge: Related Image
Model Number Tip
R

0.1 mm Unit Specification
Both Corners
θ

(Selection)
Blade Length
l
Overall Length
L
Shank diameter
d
θ20°θ30°θ45°θ60°
C-SMBGC
(Carbide)
60.3 to 1.020°
30°
45°
60°
16.410.87.05.0100
822.114.69.46.8
1027.818.311.88.8

[ ! ] TS coating and XAL coating can be specified as additional work. (See below)
Click here for the cutting conditions

Additional work

Carbide Drill for Submarine Gate, Tip Ball Type / 2-Flute / Straight Edge: Related Image
