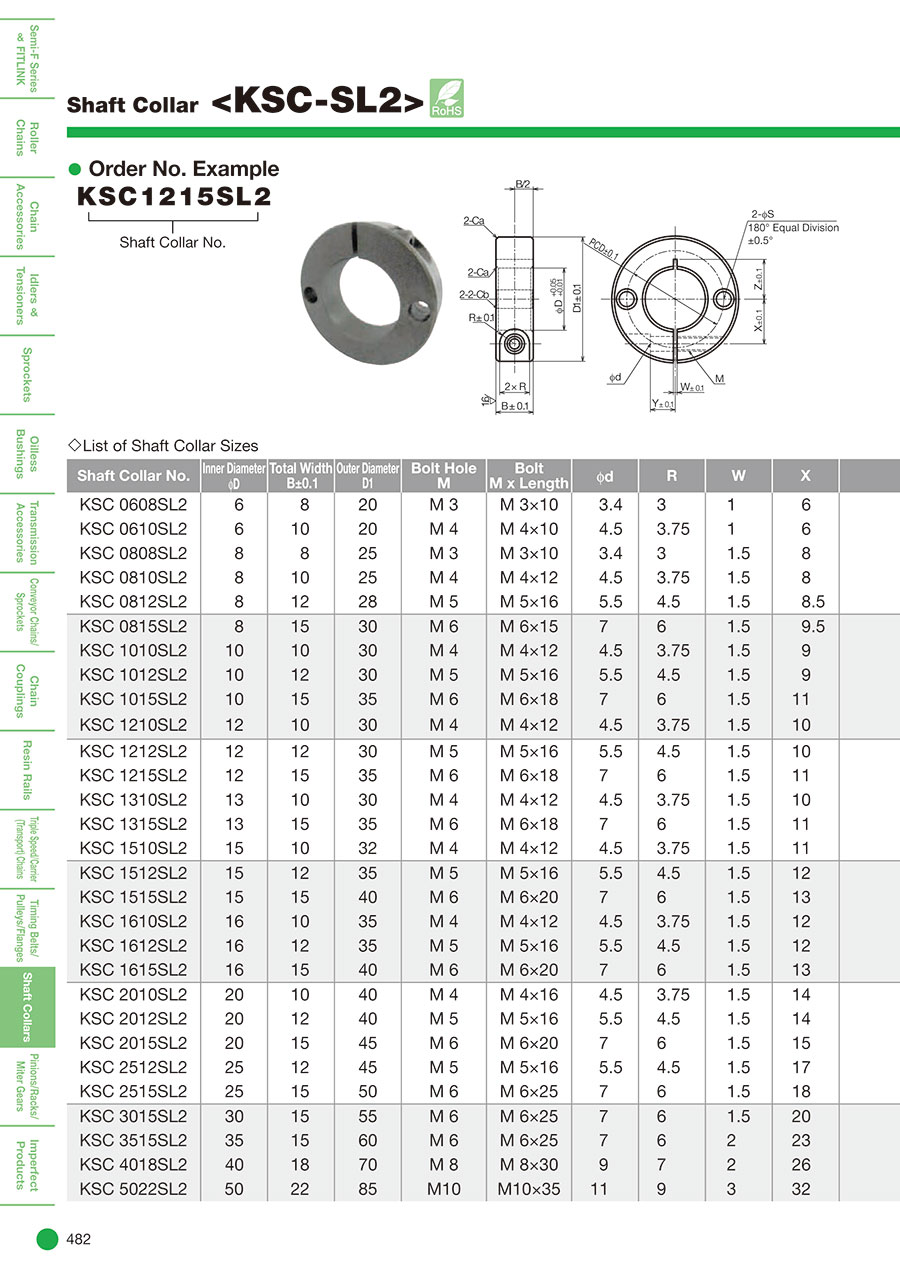

Set collars / iron / slotted / double cross hole / KSC-SL2
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Hole Dia. φD | O.D. | Total width B | |
|---|---|---|---|---|---|---|---|
4.25 € | 1 | 11 Days | 6 | 20 | 8 | ||
4.25 € | 1 | 11 Days | 6 | 20 | 10 | ||
4.76 € | 1 | 11 Days | 8 | 25 | 8 | ||
4.76 € | 1 | 11 Days | 8 | 25 | 10 | ||
5.90 € | 1 | 11 Days | 8 | 28 | 12 | ||
6.05 € | 1 | 11 Days | 8 | 30 | 15 | ||
5.87 € | 1 | 11 Days | 10 | 30 | 10 | ||
5.93 € | 1 | 11 Days | 10 | 30 | 12 | ||
6.22 € | 1 | 11 Days | 10 | 35 | 15 | ||
5.85 € | 1 | 11 Days | 12 | 30 | 10 | ||
5.91 € | 1 | 11 Days | 12 | 30 | 12 | ||
6.19 € | 1 | 11 Days | 12 | 35 | 15 | ||
5.85 € | 1 | 11 Days | 13 | 30 | 10 | ||
6.18 € | 1 | 11 Days | 13 | 35 | 15 | ||
5.90 € | 1 | 11 Days | 15 | 32 | 10 | ||
6.04 € | 1 | 11 Days | 15 | 35 | 12 | ||
9.31 € | 1 | 11 Days | 15 | 40 | 15 | ||
5.93 € | 1 | 11 Days | 16 | 35 | 10 | ||
6.02 € | 1 | 11 Days | 16 | 35 | 12 | ||
9.29 € | 1 | 11 Days | 16 | 40 | 15 | ||
8.96 € | 1 | 11 Days | 20 | 40 | 10 | ||
9.06 € | 1 | 11 Days | 20 | 40 | 12 | ||
9.45 € | 1 | 11 Days | 20 | 45 | 15 | ||
9.15 € | 1 | 11 Days | 25 | 45 | 12 | ||
9.60 € | 1 | 11 Days | 25 | 50 | 15 | ||
10.52 € | 1 | 6 Days | 30 | 55 | 15 | ||
11.44 € | 1 | 11 Days | 35 | 60 | 15 | ||
14.71 € | 1 | 11 Days | 40 | 70 | 18 | ||
24.20 € | 1 | 11 Days | 50 | 85 | 22 |
Loading...
Basic information
| Tightening Method | Slit | Specifications | With side mounting hole | Material | Iron |
|---|---|---|---|---|---|
| Surface Treatment | Surface Treatment | Thickness | Standard Type | Side Surface Machining | 2-Hole |
| Material (Details) | Carbon steel for Mechanical Structure | Surface Treatment (Details) | Black Oxide |
Configure
Basic Attributes
-
Shaft Hole Dia. φD
-
O.D.
-
Total width B
-
Type
- KSC-SL2
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
