Optional Parts [Eccentric Angle Adapter] OP-010PB

Optional Parts [Eccentric Angle Adapter] OP-010PB

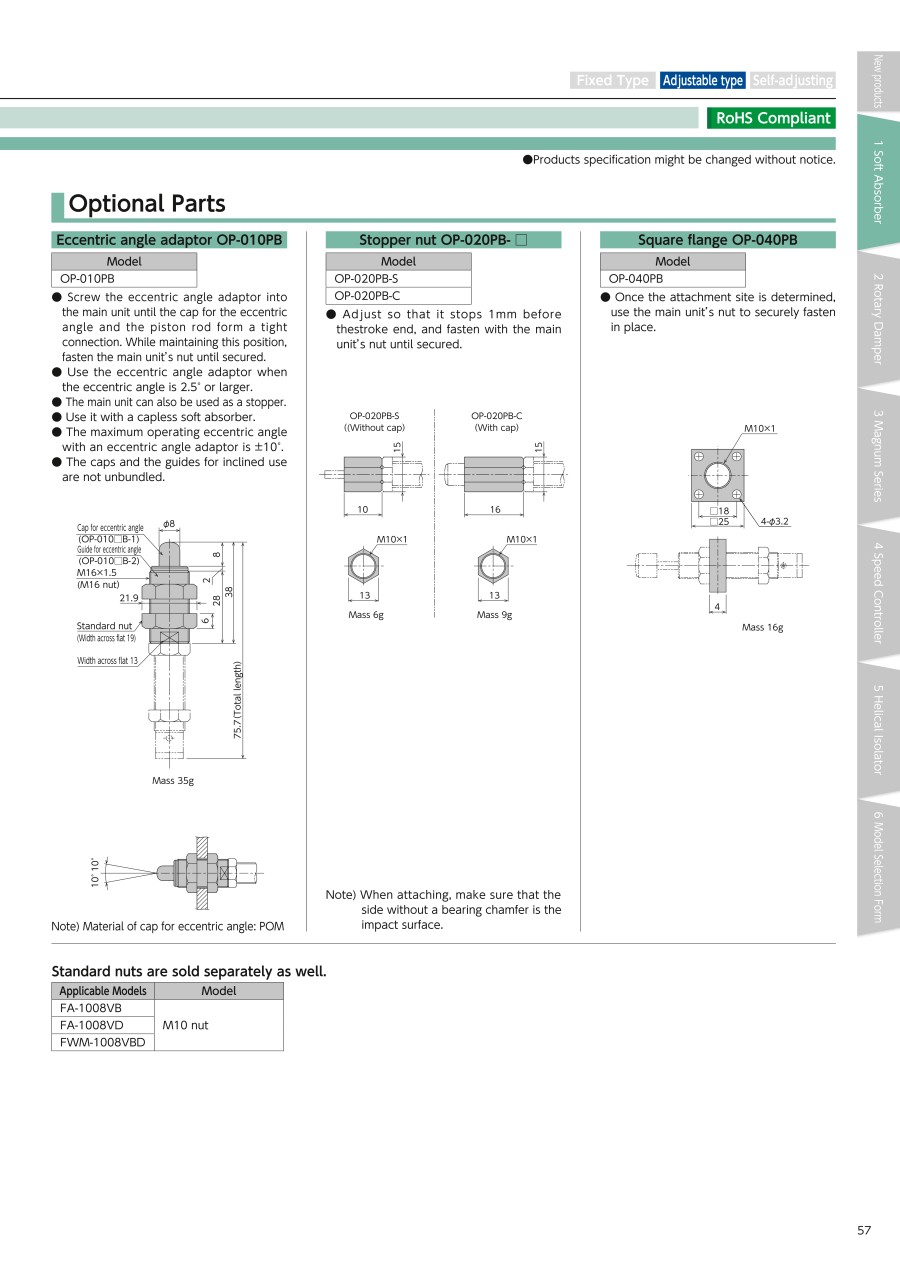

Can be used to improve damper durability when usage conditions involve an eccentric angle. It can also be used as a stopper nut. The maximum eccentric angle is 10 degrees.

[Features]
· Screw the eccentric angle adapter into the main body until the eccentric angle cap is securely fitted with the piston rod, and screw in the nuts on the main body tightly at this position.
· Use it when the eccentric angle is 2.5 degrees or more.
· The main body can also be used as a stopper.
· Use together with a capless soft absorber.
・The maximum eccentric angle is ±10 degrees in conjunction with the eccentric angle adapter.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

OP-010PB

Part Number
OP-010PB
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSExternal Thread Diameter

13.60 €

3 Days 10M16

Loading...

  1. 1

Basic information

Main Body/Related Parts Related Components Stroke(mm) 8 Nominal Mounting Screw [M] 16
Main Body Material Steel Overall Length(mm) 38 Outer Diameter(Ø) 16
Allowable Angular Misalignment Degree(deg) 10 Diameter of Screw with External Damper Shape(mm) M10 Damper Stroke(mm) 8

This page is Optional Parts [Eccentric Angle Adapter] OP-010PB, part number OP-010PB.
You can find the detail information about specifications and dimensions on part number OP-010PB.
