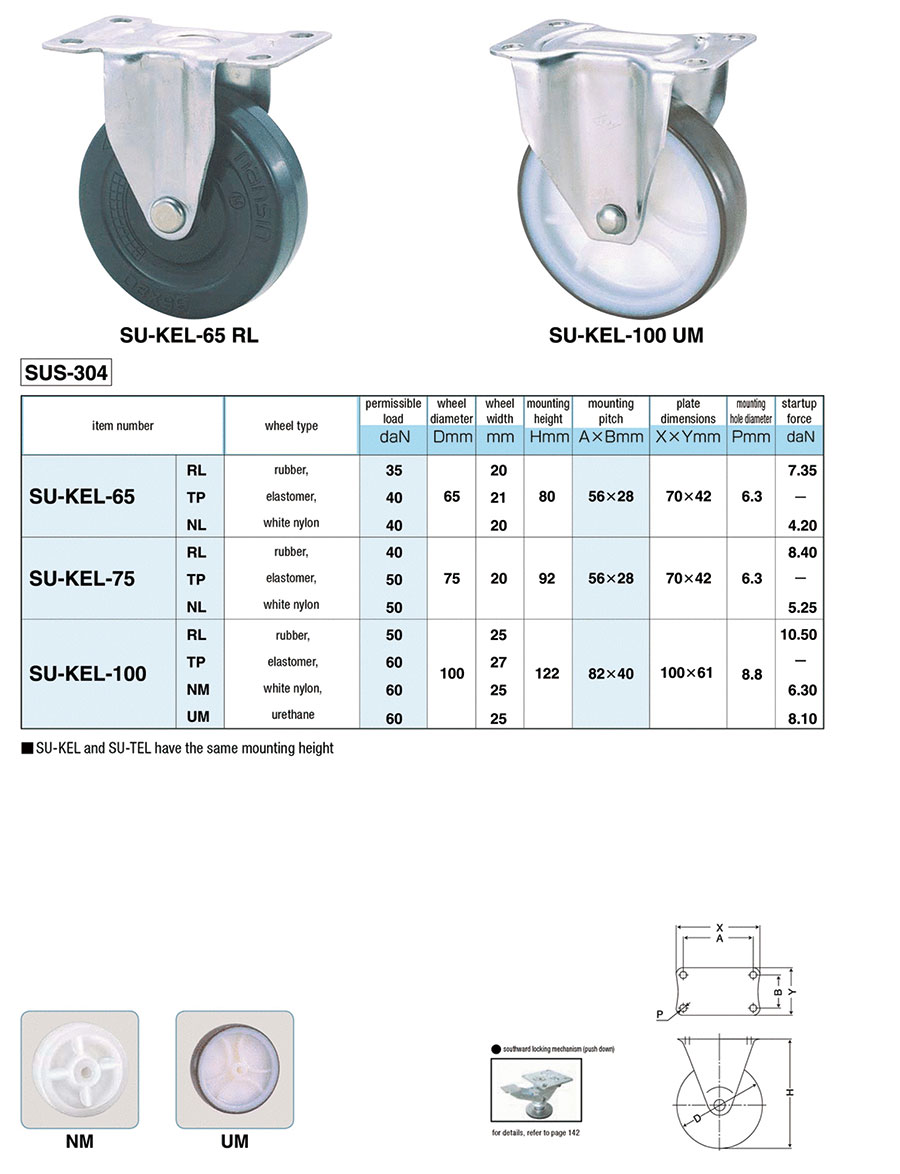

Stainless Steel Castors SU-KEL Series, Fixed
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SU-KEL-65NL |
| SU-KEL-65RL |
| SU-KEL-65TP |
| SU-KEL-75NL |
| SU-KEL-75RL |
| SU-KEL-100NM |
| SU-KEL-100RL |
| SU-KEL-100TP |
| SU-KEL-100UM |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.83 € | 1 | 8 Days | 10 | 80 | 35.01~80.00 | 40 | [Nylon] Nylon, White | Oil Resistance | 56 | 28 | 70 | 42 | 65 | 20 | ||
9.77 € | 1 | 8 Days | 10 | 80 | ~35.00 | 35 | [Synthetic Rubber] Rubber | NA | 56 | 28 | 70 | 42 | 65 | 20 | ||
9.34 € | 1 | 8 Days | 10 | 80 | 35.01~80.00 | 40 | Elastomer | NA | 56 | 28 | 70 | 42 | 65 | 21 | ||
12.56 € | 1 | 8 Days | 10 | 92 | 35.01~80.00 | 50 | [Nylon] Nylon, White | Oil Resistance | 56 | 28 | 70 | 42 | 75 | 20 | ||
13.01 € | 1 | 8 Days | 10 | 92 | 35.01~80.00 | 40 | [Synthetic Rubber] Rubber | NA | 56 | 28 | 70 | 42 | 75 | 20 | ||
26.69 € | 1 | 8 Days | 10 | 122 | 35.01~80.00 | 60 | [Nylon] Nylon, White | Oil Resistance | 82 | 40 | 100 | 61 | 100 | 25 | ||
27.33 € | 1 | 8 Days | 10 | 122 | 35.01~80.00 | 50 | [Synthetic Rubber] Rubber | NA | 82 | 40 | 100 | 61 | 100 | 25 | ||
18.68 € | 1 | 11 Days | 10 | 122 | 35.01~80.00 | 60 | Elastomer | NA | 82 | 40 | 100 | 61 | 100 | 27 | ||
30.64 € | 1 | 8 Days | 10 | 122 | 35.01~80.00 | 60 | [Urethane] Urethane | Oil Resistance | 82 | 40 | 100 | 61 | 100 | 25 |
Loading...
Basic information
| Caster Type | Plate Type Fixed | Stopper | NA | Fitting Material | Stainless Steel |
|---|---|---|---|---|---|
| Mounting Hole Type | Round Hole | Application | Commercial Facilities/Displays/Product Stands / Distribution/Hand Truck/Pallet / Factory facilities | Load Category | Light Load |
| Wheel Bearings | NA |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 35.01~80.00
-
Allowable Load(daN)
-
Wheel Material
- Synthetic Rubber
- Nylon
- Urethane
- Elastomer
- Synthetic Rubber
-
Wheel Characteristics
- Oil Resistance
- NA
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Type
- SU-KEL
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 8 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
