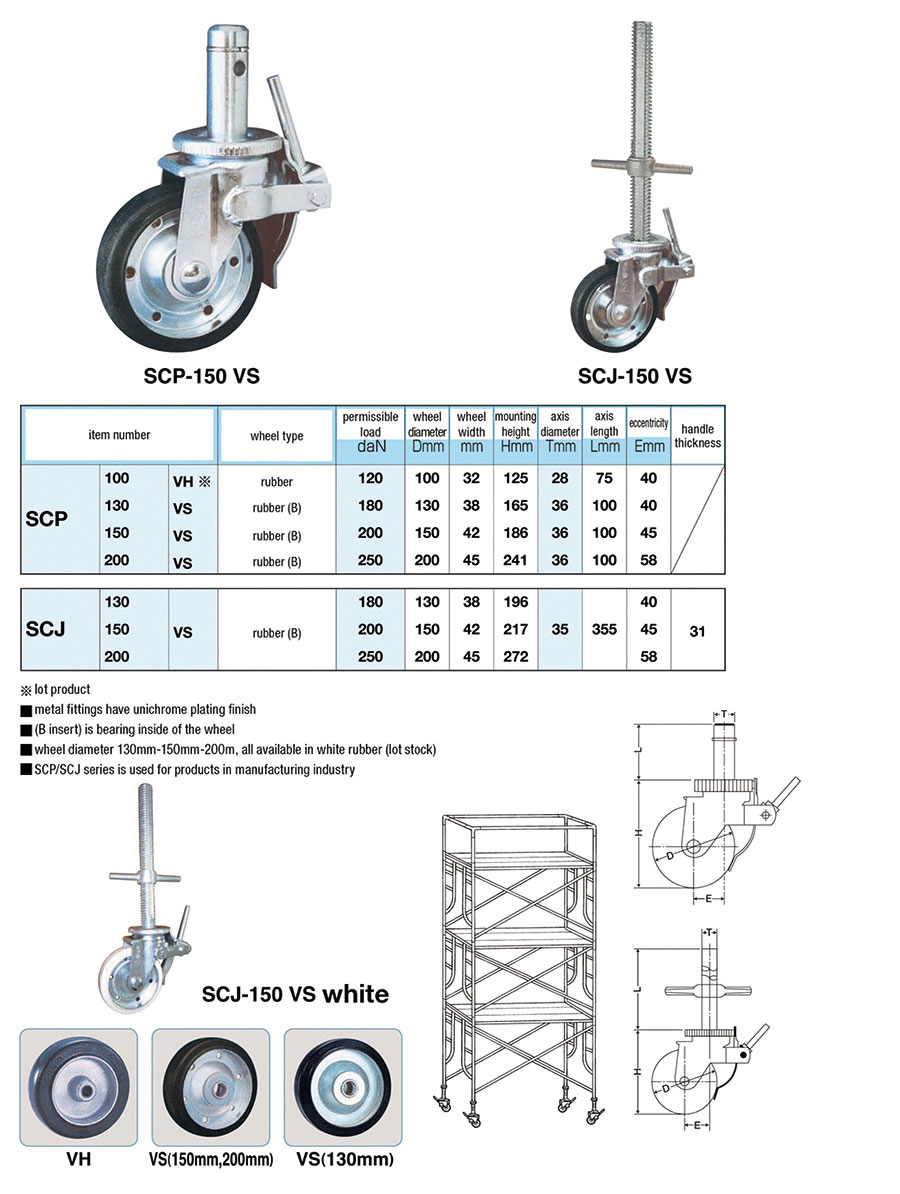

Industrial Castors SCJ Series with Swivel Stopper
A caster with a rubber wheel and swivel stopper.
[Features]
· The hardware is bright chromate plated. (with B) is a wheel with bearing.
· Wheel diameters of 130 mm, 150 mm, and 200 mm, as well as white rubber wheels are available (lot products).
· The SCP/SCJ series are approved by the Japan Association of Manufacturers Associations.
[Features]
· The hardware is bright chromate plated. (with B) is a wheel with bearing.
· Wheel diameters of 130 mm, 150 mm, and 200 mm, as well as white rubber wheels are available (lot products).
· The SCP/SCJ series are approved by the Japan Association of Manufacturers Associations.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Loading...
Basic information
| Caster Type | Plug Style | Load Range(daN) | 140.01~220.00 | Stopper | With Rotation Stopper |
|---|---|---|---|---|---|
| Wheel Material | Rubber | Wheel Characteristics | NA | Fitting Material | Steel |
| Shaft Dia. T(mm) | 35 | Application | Factory facilities / Vertical lift | Swivel Radius(mm) | 100 |
| Load Category | Medium Load | Wheel Bearings | Available | Stopper Type | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
