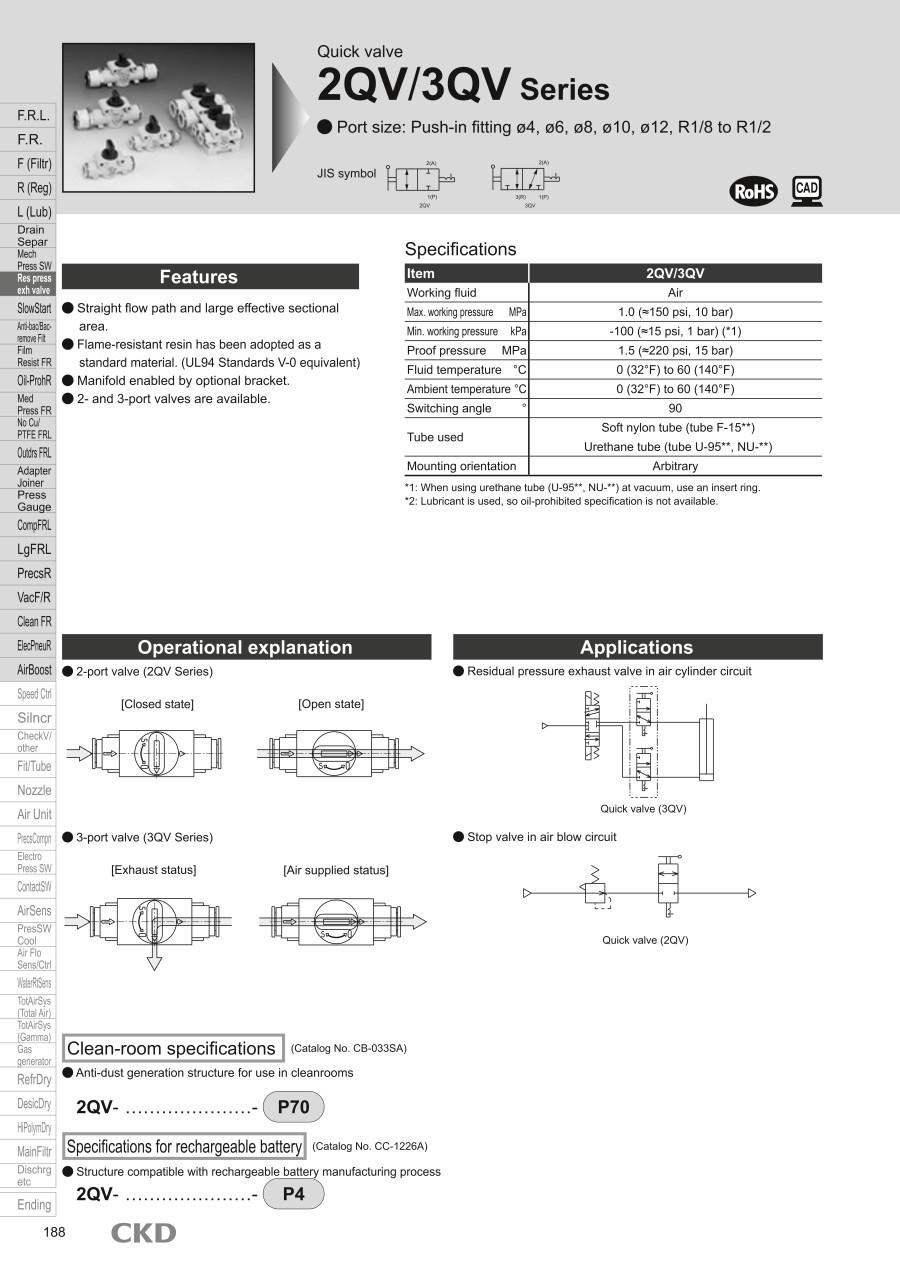

3 Port Valve Quick Valve
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3QV-04-04 |
| 3QV-06-06 |
| 3QV-06-6A |
| 3QV-06-8A |
| 3QV-08-08 |
| 3QV-08-10A |
| 3QV-08S-08S |
| 3QV-08S-8A |
| 3QV-6A-06 |
| 3QV-6A-6A |
| 3QV-8A-06 |
| 3QV-8A-08S |
| 3QV-8A-8A |
| 3QV-10-10 |
| 3QV-10-10A |
| 3QV-10A-08 |
| 3QV-10A-10 |
| 3QV-10A-10A |
| 3QV-12-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Connecting Tube Diameter | Pipe Port Type | Plumbing Thread Nominal | Effective Sectional Area (mm2) | Connection port diameter IN side | Connection port diameter OUT side | |
|---|---|---|---|---|---|---|---|---|---|---|
14.72 € | 1 | Available | 6 Days | φ4 | Single-Action Pipe | - | 4.2 | φ4 | φ4 | |
14.72 € | 1 | Available | 8 Days | φ6 | Single-Action Pipe | - | 9.3 | φ6 | φ6 | |
23.36 € | 1 | Available | 8 Days | φ6 | [Rc (R)] R | 1/8 | 9.3 | φ6 | R1/8 | |
23.70 € | 1 | 9 Days | φ6 | [Rc (R)] R | 1/4 | 9.3 | φ6 | R1/4 | ||
16.71 € | 1 | 6 Days | φ8 | Single-Action Pipe | - | 17.5 | φ8 | φ8 | ||
25.43 € | 1 | 9 Days | φ8 | [Rc (R)] R | 3/8 | 15.8 | φ8 | R3/8 | ||
14.74 € | 1 | 6 Days | φ8 | Single-Action Pipe | - | 10.2 | φ8 | φ8 | ||
23.70 € | 1 | Available | 9 Days | φ8 | [Rc (R)] R | 1/4 | 10.2 | φ8 | R1/4 | |
23.36 € | 1 | 8 Days | φ6 | [Rc (R)] R | 1/8 | 9.3 | R1/8 | φ6 | ||
24.74 € | 1 | 9 Days | - | [Rc (R)] R | 1/8 | 9.5 | R1/8 | R1/8 | ||
23.70 € | 1 | 9 Days | φ6 | [Rc (R)] R | 1/4 | 9.3 | R1/4 | φ6 | ||
23.70 € | 1 | Available | 9 Days | φ8 | [Rc (R)] R | 1/4 | 10.2 | R1/4 | φ8 | |
18.36 € | 1 | 9 Days | - | [Rc (R)] R | 1/4 | 9.5 | R1/4 | R1/4 | ||
16.71 € | 1 | 6 Days | φ10 | Single-Action Pipe | - | 22.5 | φ10 | φ10 | ||
25.43 € | 1 | 9 Days | φ10 | [Rc (R)] R | 3/8 | 21.4 | φ10 | R3/8 | ||
25.43 € | 1 | 9 Days | φ8 | [Rc (R)] R | 3/8 | 16.3 | R3/8 | φ8 | ||
25.43 € | 1 | 9 Days | φ10 | [Rc (R)] R | 3/8 | 21.4 | R3/8 | φ10 | ||
27.31 € | 1 | 9 Days | - | [Rc (R)] R | 3/8 | 21.4 | R3/8 | R3/8 | ||
16.73 € | 1 | 6 Days | φ12 | Single-Action Pipe | - | 22.5 | φ12 | φ12 |
Loading...
Basic information
| Main Body Shape | One-Touch Coupling Type | Number of Ports | 3-Port | Number of Switching Positions | 2-position Normally Closed |
|---|---|---|---|---|---|
| Switching Operation | Knob | Plumbing Type and Direction | Direct side | Operation Status Retention | Holding |
| Preventing of Raising Dust | NA |
Configure
Basic Attributes
-
Connecting Tube Diameter
- φ4
- φ6
- φ8
- φ10
- φ12
-
Pipe Port Type
- Rc (R)
- Single-Action Pipe
- Rc (R)
-
Plumbing Thread Nominal
- 1/8
- 1/4
- 3/8
-
Effective Sectional Area(mm2)
-
Connection port diameter IN side
- R1/4
- R1/8
- R3/8
- φ4
- φ6
- φ8
- φ10
- φ12
-
Connection port diameter OUT side
- R1/4
- R1/8
- R3/8
- φ4
- φ6
- φ8
- φ10
- φ12
-
Type
- 3QV
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
