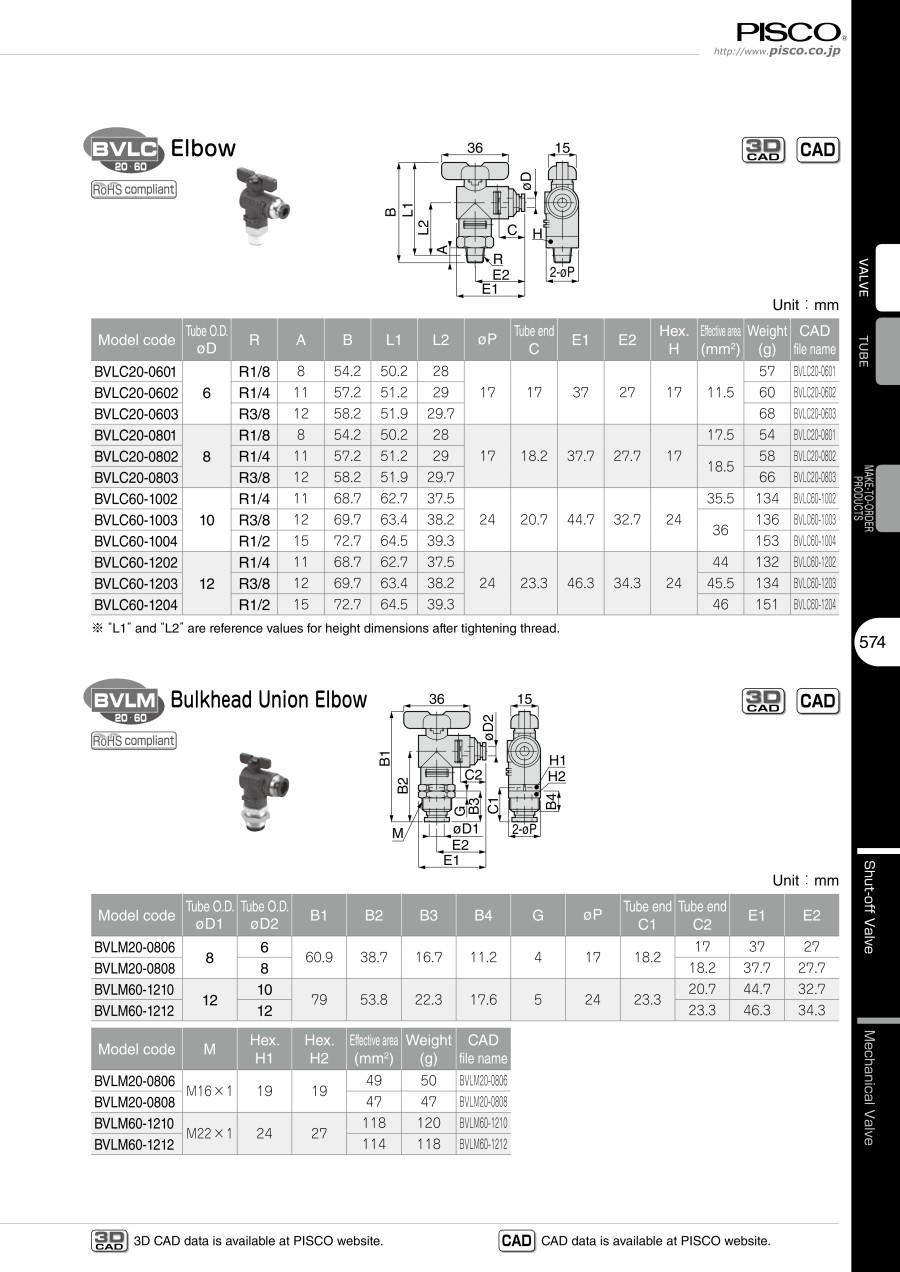

Shut-off Valve Ball Valve Bulkhead Union Elbow
· Capable of opening and closing air pressure inlet to equipment.
· Effective sectional area is kept according to the size of the tube used.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| BVLM20-0806 |
| BVLM20-0808 |
| BVLM60-1210 |
| BVLM60-1212 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Connection Tube Diameter | Effective Sectional Area (mm2) | Effective Sectional Area【classification】 (mm2) | Connection tube diameter 2 | |
|---|---|---|---|---|---|---|---|---|
27.78 € | 1 | 5 Days | φ8 | 49 | Up to 50 | φ6 | ||
27.76 € | 1 | 5 Days | φ8 | 47 | Up to 50 | φ8 | ||
30.53 € | 1 | 12 Days | φ12 | 118 | Up to 200 | φ10 | ||
30.50 € | 1 | 10 Days | φ12 | 114 | Up to 200 | φ12 |
Loading...
Basic information
| Shape | One-Touch Coupling Type | Number of Ports | 2-Port | No. of Positions | Normally Open |
|---|---|---|---|---|---|
| Operation Method | Knob | Pipe Port Type | Single-Action Coupling | State of Operation Retention | Holding |
Configure
Basic Attributes
-
Connection Tube Diameter
- φ8
- φ12
-
Effective Sectional Area(mm2)
-
Effective Sectional Area【classification】(mm2)
-
Connection tube diameter 2
- φ6
- φ8
- φ10
- φ12
-
Type
- BVLM20/60
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
