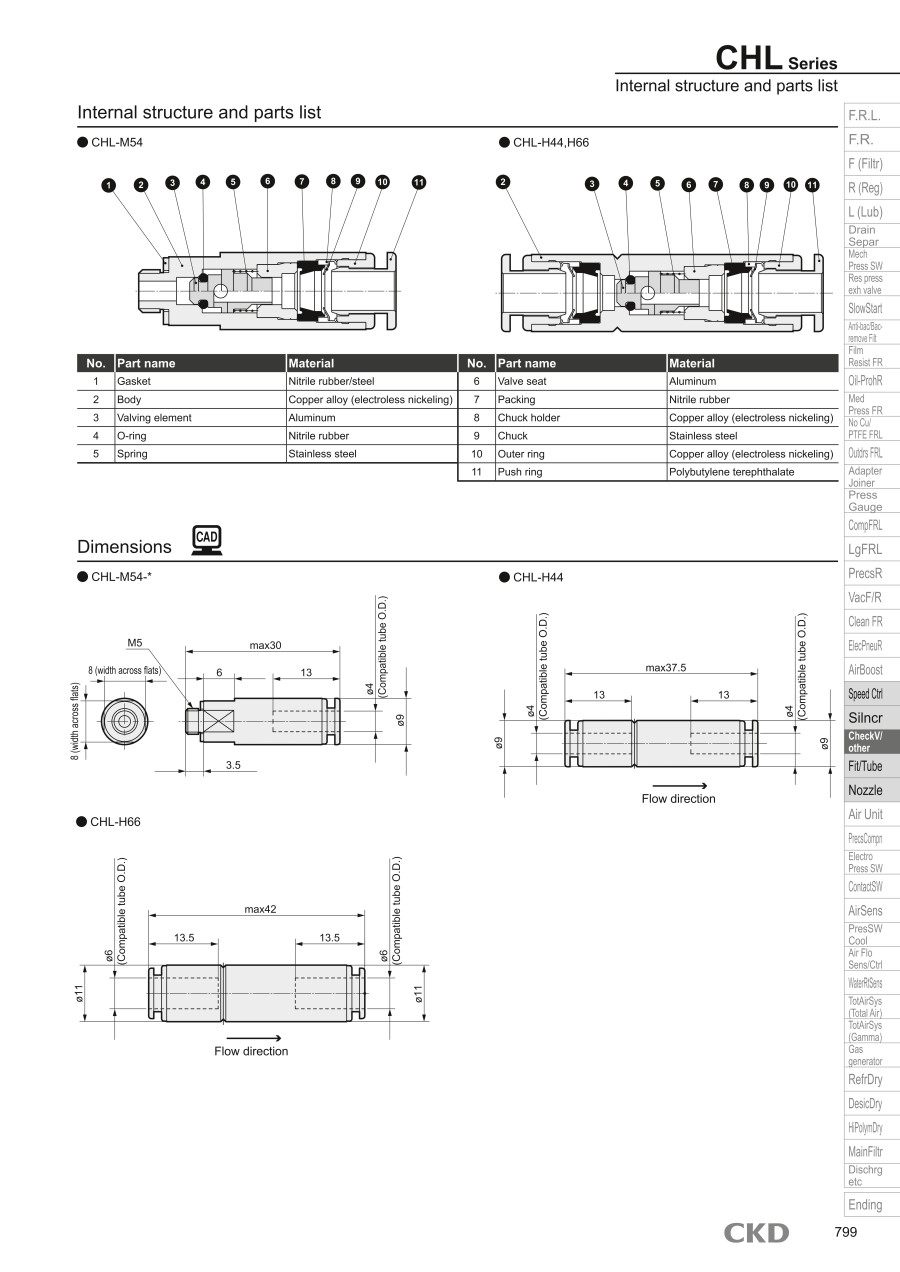

Small Type, Non-Return Valve, CHL-H Series with One Touch Fitting
- Volume Discount
Small and space-saving in-line type. Retains vacuum and can be used with low pressure.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| Type | Standard | Main Body Shape | Straight | Main Body Material | Brass (Electroless Nickel Plating) |
|---|---|---|---|---|---|
| Seal Material | Nitrile Rubber | IN | Single-Action Coupling | OUT | Single-Action Coupling |
| Max. Operating Pressure , Min. Operating Pressure(MPa) | 0.03::1 | Cracking pressure(MPa) | 0.03 | Material Limit | Without Limitations |
| Oil And Dust Resistant | NA |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Effective Sectional Area(mm2)
-
Effective Sectional Area【classification】(㎜2)
-
Applicable Tube Diameter/Screw Diameter
- φ4
- φ6
-
Type
- CHL-H
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
