Long Stroke Sponge Type VPC One-Touch Fitting without Cover
[Features]
· The vacuum pad can adhere to the material even if the distance between them varies.
· A wide range of pad sizes, pad materials, and holder shapes are available.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

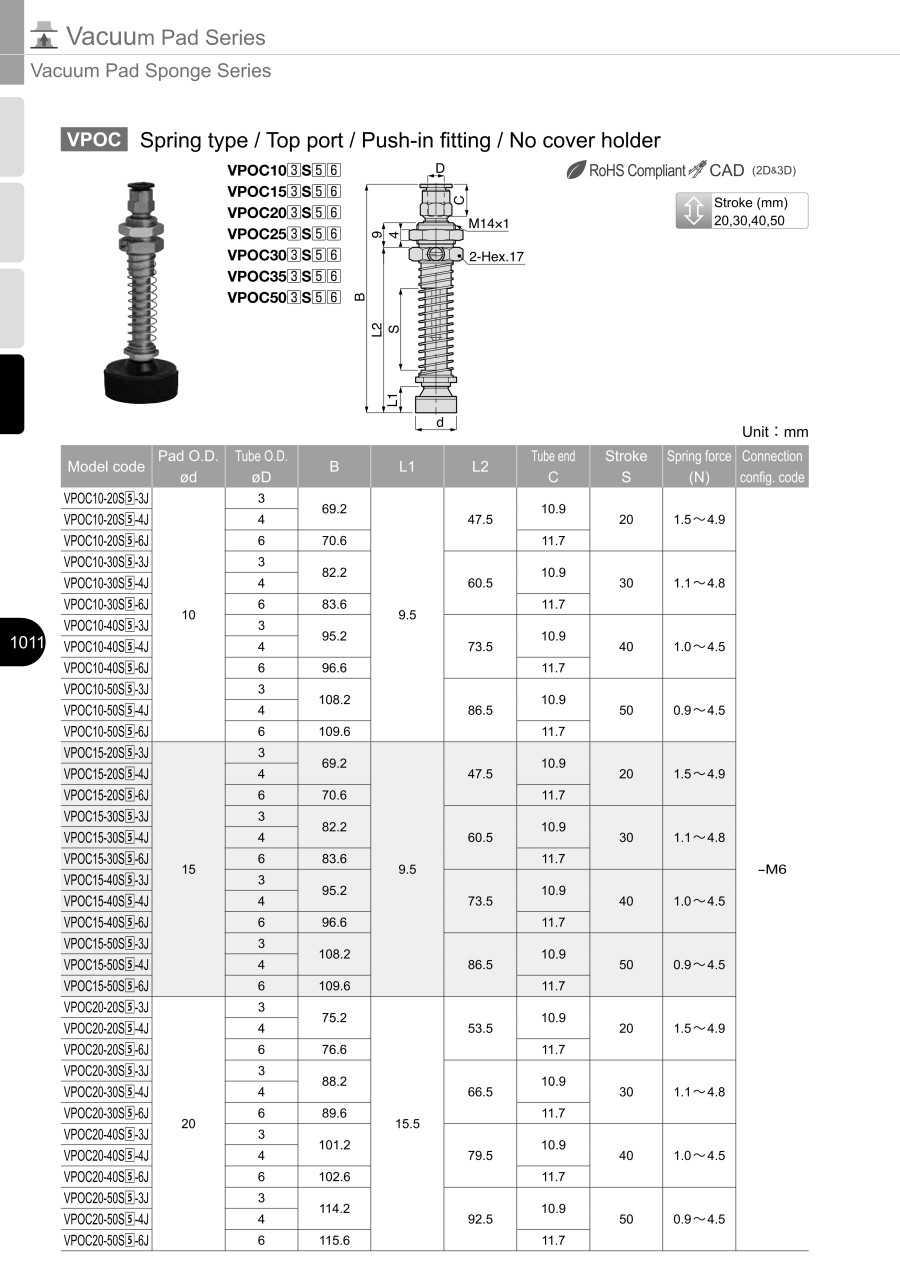

Dimensions
Standard Table
| Model Code | Pad O.D. ød | Tube O.D. øD | B | L1 | L2 | Tube End C | Stroke S | Spring Force (N) | Connection Config. Code |
|---|---|---|---|---|---|---|---|---|---|
| VPOC10-20S[5]-3J | 10 | 3 | 69.2 | 9.5 | 47.5 | 10.9 | 20 | 1.5~4.9 | -M6 |
| VPOC10-20S[5]-4J | 4 | ||||||||
| VPOC10-20S[5]-6J | 6 | 70.6 | 11.7 | ||||||
| VPOC10-30S[5]-3J | 3 | 82.2 | 60.5 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC10-30S[5]-4J | 4 | ||||||||
| VPOC10-30S[5]-6J | 6 | 83.6 | 11.7 | ||||||
| VPOC10-40S[5]-3J | 3 | 95.2 | 73.5 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC10-40S[5]-4J | 4 | ||||||||
| VPOC10-40S[5]-6J | 6 | 96.6 | 11.7 | ||||||
| VPOC10-50S[5]-3J | 3 | 108.2 | 86.5 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC10-50S[5]-4J | 4 | ||||||||
| VPOC10-50S[5]-6J | 6 | 109.6 | 11.7 | ||||||
| VPOC15-20S[5]-3J | 15 | 3 | 69.2 | 9.5 | 47.5 | 10.9 | 20 | 1.5~4.9 | |
| VPOC15-20S[5]-4J | 4 | ||||||||
| VPOC15-20S[5]-6J | 6 | 70.6 | 11.7 | ||||||
| VPOC15-30S[5]-3J | 3 | 82.2 | 60.5 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC15-30S[5]-4J | 4 | ||||||||
| VPOC15-30S[5]-6J | 6 | 83.6 | 11.7 | ||||||
| VPOC15-40S[5]-3J | 3 | 95.2 | 73.5 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC15-40S[5]-4J | 4 | ||||||||
| VPOC15-40S[5]-6J | 6 | 96.6 | 11.7 | ||||||
| VPOC15-50S[5]-3J | 3 | 108.2 | 86.5 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC15-50S[5]-4J | 4 | ||||||||
| VPOC15-50S[5]-6J | 6 | 109.6 | 11.7 | ||||||
| VPOC20-20S[5]-3J | 20 | 3 | 75.2 | 15.5 | 53.5 | 10.9 | 20 | 1.5~4.9 | |
| VPOC20-20S[5]-4J | 4 | ||||||||
| VPOC20-20S[5]-6J | 6 | 76.6 | 11.7 | ||||||
| VPOC20-30S[5]-3J | 3 | 88.2 | 66.5 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC20-30S[5]-4J | 4 | ||||||||
| VPOC20-30S[5]-6J | 6 | 89.6 | 11.7 | ||||||
| VPOC20-40S[5]-3J | 3 | 101.2 | 79.5 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC20-40S[5]-4J | 4 | ||||||||
| VPOC20-40S[5]-6J | 6 | 102.6 | 11.7 | ||||||
| VPOC20-50S[5]-3J | 3 | 114.2 | 92.5 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC20-50S[5]-4J | 4 | ||||||||
| VPOC20-50S[5]-6J | 6 | 115.6 | 11.7 | ||||||
| VPOC25-20S[5]-3J | 25 | 3 | 75.2 | 15.5 | 53.5 | 10.9 | 20 | 1.5~4.9 | |
| VPOC25-20S[5]-4J | 4 | ||||||||
| VPOC25-20S[5]-6J | 6 | 76.6 | 11.7 | ||||||
| VPOC25-30S[5]-3J | 3 | 88.2 | 66.5 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC25-30S[5]-4J | 4 | ||||||||
| VPOC25-30S[5]-6J | 6 | 89.6 | 11.7 | ||||||
| VPOC25-40S[5]-3J | 3 | 101.2 | 79.5 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC25-40S[5]-4J | 4 | ||||||||
| VPOC25-40S[5]-6J | 6 | 102.6 | 11.7 | ||||||
| VPOC25-50S[5]-3J | 3 | 114.2 | 92.5 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC25-50S[5]-4J | 4 | ||||||||
| VPOC25-50S[5]-6J | 6 | 115.6 | 11.7 | ||||||
| VPOC30-20S[5]-3J | 30 | 3 | 75.2 | 15.5 | 53.5 | 10.9 | 20 | 1.5~4.9 | |
| VPOC30-20S[5]-4J | 4 | ||||||||
| VPOC30-20S[5]-6J | 6 | 76.6 | 11.7 | ||||||
| VPOC30-30S[5]-3J | 3 | 88.2 | 66.5 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC30-30S[5]-4J | 4 | ||||||||
| VPOC30-30S[5]-6J | 6 | 89.6 | 11.7 | ||||||
| VPOC30-40S[5]-3J | 3 | 101.2 | 79.5 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC30-40S[5]-4J | 4 | ||||||||
| VPOC30-40S[5]-6J | 6 | 102.6 | 11.7 | ||||||
| VPOC30-50S[5]-3J | 3 | 114.2 | 92.5 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC30-50S[5]-4J | 4 | ||||||||
| VPOC30-50S[5]-6J | 6 | 115.6 | 11.7 | ||||||
| VPOC35-20S[5]-3J | 35 | 3 | 87.7 | 28 | 66 | 10.9 | 20 | 1.5~4.9 | |
| VPOC35-20S[5]-4J | 4 | ||||||||
| VPOC35-20S[5]-6J | 6 | 89.1 | 11.7 | ||||||
| VPOC35-30S[5]-3J | 3 | 100.7 | 79 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC35-30S[5]-4J | 4 | ||||||||
| VPOC35-30S[5]-6J | 6 | 102.1 | 11.7 | ||||||
| VPOC35-40S[5]-3J | 3 | 113.7 | 92 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC35-40S[5]-4J | 4 | ||||||||
| VPOC35-40S[5]-6J | 6 | 115.1 | 11.7 | ||||||
| VPOC35-50S[5]-3J | 3 | 126.7 | 105 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC35-50S[5]-4J | 4 | ||||||||
| VPOC35-50S[5]-6J | 6 | 128.1 | 11.7 | ||||||
| VPOC50-20S[5]-3J | 50 | 3 | 87.7 | 28 | 66 | 10.9 | 20 | 1.5~4.9 | |
| VPOC50-20S[5]-4J | 4 | ||||||||
| VPOC50-20S[5]-6J | 6 | 89.1 | 11.7 | ||||||
| VPOC50-30S[5]-3J | 3 | 100.7 | 79 | 10.9 | 30 | 1.1~4.8 | |||
| VPOC50-30S[5]-4J | 4 | ||||||||
| VPOC50-30S[5]-6J | 6 | 102.1 | 11.7 | ||||||
| VPOC50-40S[5]-3J | 3 | 113.7 | 92 | 10.9 | 40 | 1.0~4.5 | |||
| VPOC50-40S[5]-4J | 4 | ||||||||
| VPOC50-40S[5]-6J | 6 | 115.1 | 11.7 | ||||||
| VPOC50-50S[5]-3J | 3 | 126.7 | 105 | 10.9 | 50 | 0.9~4.5 | |||
| VPOC50-50S[5]-4J | 4 | ||||||||
| VPOC50-50S[5]-6J | 6 | 128.1 | 11.7 |
Units: mm
- *[5]: Replaced with Pad rubber material code. Refer to the catalog for information on pad rubber material.
- *Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter D (φ) | Height L1 (mm) | Springs Power (N) | Stroke (mm) | Full length B (mm) | |
|---|---|---|---|---|---|---|---|---|---|
28.71 € | 1 | 10 Days | 10 | 9.5 | 1.1 to 4.8 | 30 | 83.6 | ||
29.51 € | 1 | 10 Days | 10 | 9.5 | 1.0 to 4.5 | 40 | 96.6 | ||
30.28 € | 1 | 10 Days | 10 | 9.5 | 0.9 to 4.5 | 50 | 109.6 | ||
28.32 € | 1 | 10 Days | 15 | 9.5 | 1.5 to 4.9 | 20 | 70.6 | ||
29.10 € | 1 | 10 Days | 15 | 9.5 | 1.1 to 4.8 | 30 | 83.6 | ||
30.69 € | 1 | 10 Days | 15 | 9.5 | 0.9 to 4.5 | 50 | 109.6 | ||
30.28 € | 1 | 10 Days | 20 | 15.5 | 1.5 to 4.9 | 20 | 76.6 | ||
31.08 € | 1 | 10 Days | 20 | 15.5 | 1.1 to 4.8 | 30 | 89.6 | ||
32.65 € | 1 | 10 Days | 20 | 15.5 | 0.9 to 4.5 | 50 | 115.6 | ||
31.08 € | 1 | 10 Days | 25 | 15.5 | 1.5 to 4.9 | 20 | 76.6 | ||
31.87 € | 1 | 10 Days | 25 | 15.5 | 1.1 to 4.8 | 30 | 89.6 | ||
32.26 € | 1 | 10 Days | 30 | 15.5 | 1.5 to 4.9 | 20 | 76.6 | ||
33.05 € | 1 | 10 Days | 30 | 15.5 | 1.1 to 4.8 | 30 | 89.6 | ||
33.83 € | 1 | 10 Days | 30 | 15.5 | 1.0 to 4.5 | 40 | 102.6 | ||
34.62 € | 1 | 10 Days | 30 | 15.5 | 0.9 to 4.5 | 50 | 115.6 | ||
56.41 € | 1 | 10 Days | 35 | 28 | 0.9 to 4.5 | 50 | 128.2 | ||
60.35 € | 1 | 10 Days | 50 | 28 | 1.5 to 4.9 | 20 | 89.2 | ||
61.14 € | 1 | 10 Days | 50 | 28 | 1.1 to 4.8 | 30 | 102.2 | ||
62.71 € | 1 | 10 Days | 50 | 28 | 0.9 to 4.5 | 50 | 128.2 |
Loading...
Basic information
| Pad type | Standard / Holder Set | Pad Type | Sponge | Mounting Method | Pad Screw Fixed |
|---|---|---|---|---|---|
| Material | Chloroprene Rubber (sponge) | Usage Environment | Standard | Color | Black |
| Mounting Bracket | Spring Type | Vacuum Outlet Direction | Top | Mount Connection Screw | M14 |
| Vacuum Outlet Tube Outer Diameter(φ) | 6 | Spring Cover | Without Cover | Fall Prevention Valve | None |
| Direct Attached Filter | None |
