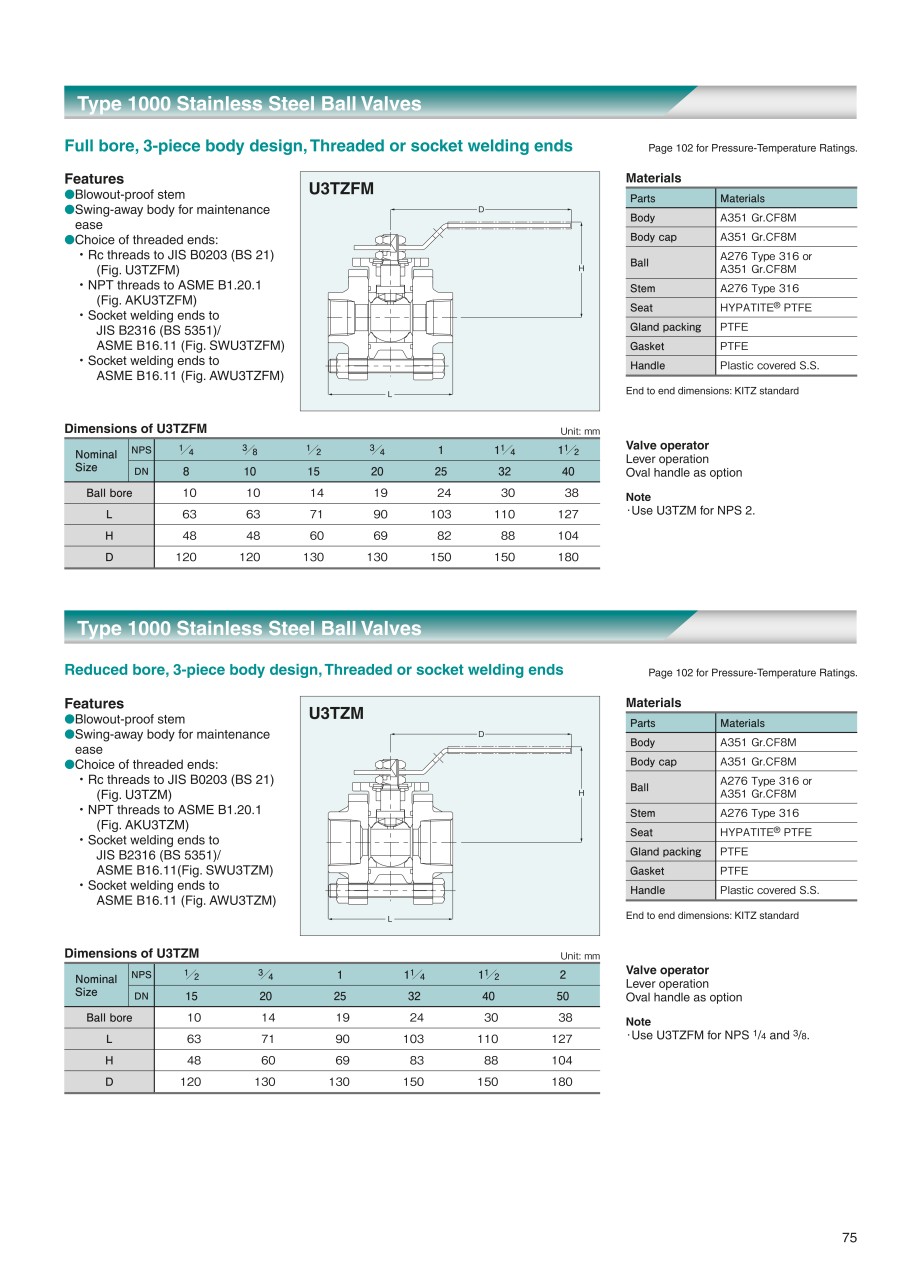

Stainless Steel General-Purpose 1000 Threaded Ball Valve
- Volume Discount
• Materials: stainless steel
• Shape: straight
• Applicable fluids: water.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| U3TZFM-10A |
| U3TZFM-15A |
| U3TZFM-25A |
| UTFM-15A |
| UTFM-20A |
| UTFM-25A |
| UTFM-32A |
| UTFM-40A |
| UTFM-50A |
| UTHL-15A |
| UTHL-20A |
| UTHL-25A |
| UTHL-32A |
| UTHL-40A |
| UTHL-50A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Body Material | Ball Valve Type | Supply Side, Plumbing Thread Nominal | Control Side, Plumbing Thread Nominal | Specifications | |
|---|---|---|---|---|---|---|---|---|---|
114.63 € | 1 | 18 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 3/8B(10A) | 3/8B(10A) | Static electricity prevention | ||
124.71 € | 1 | 18 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1/2B(15A) | 1/2B(15A) | Static electricity prevention | ||
228.50 € | 1 | 18 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1B(25A) | 1B(25A) | Static electricity prevention | ||
85.18 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1/2B(15A) | 1/2B(15A) | - | ||
100.37 € | 1 | Available | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 3/4B(20A) | 3/4B(20A) | - | |
127.46 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1B(25A) | 1B(25A) | - | ||
207.76 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1 1/4B(32A) | 1 1/4B(32A) | - | ||
254.45 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 1 1/2B(40A) | 1 1/2B(40A) | - | ||
353.08 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4408 Equiv. | Full Bore | 2B(50A) | 2B(50A) | - | ||
93.11 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 1/2B(15A) | 1/2B(15A) | - | ||
80.40 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 3/4B(20A) | 3/4B(20A) | - | ||
112.06 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 1B(25A) | 1B(25A) | - | ||
150.80 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 1 1/4B(32A) | 1 1/4B(32A) | - | ||
184.95 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 1 1/2B(40A) | 1 1/2B(40A) | - | ||
256.16 € | 1 | 5 Days | [Cast Stainless Steel] EN 1.4308 Equiv. | Reduced Bore | 2B(50A) | 2B(50A) | - |
Loading...
Basic information
| Main Body Shape | Straight | Applicable Fluid | Water | Nominal Pressure | 1000 Type |
|---|---|---|---|---|---|
| Supply Side, Connection Type | Rc | Control Side, Connection Type | Rc | Handle Shape | Lever |
| Body Lining | NA | Operation Method | Manual Operation Type | Gasket material | PTFE |
Configure
Basic Attributes
-
Body Material
- Cast Stainless Steel
- Cast Stainless Steel
-
Ball Valve Type
- Full Bore
- Reduced Bore
-
Supply Side, Plumbing Thread Nominal
-
Control Side, Plumbing Thread Nominal
-
Specifications
- Static electricity prevention
-
Type
- U3TZFM
- UTFM
- UTHL
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 18 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
