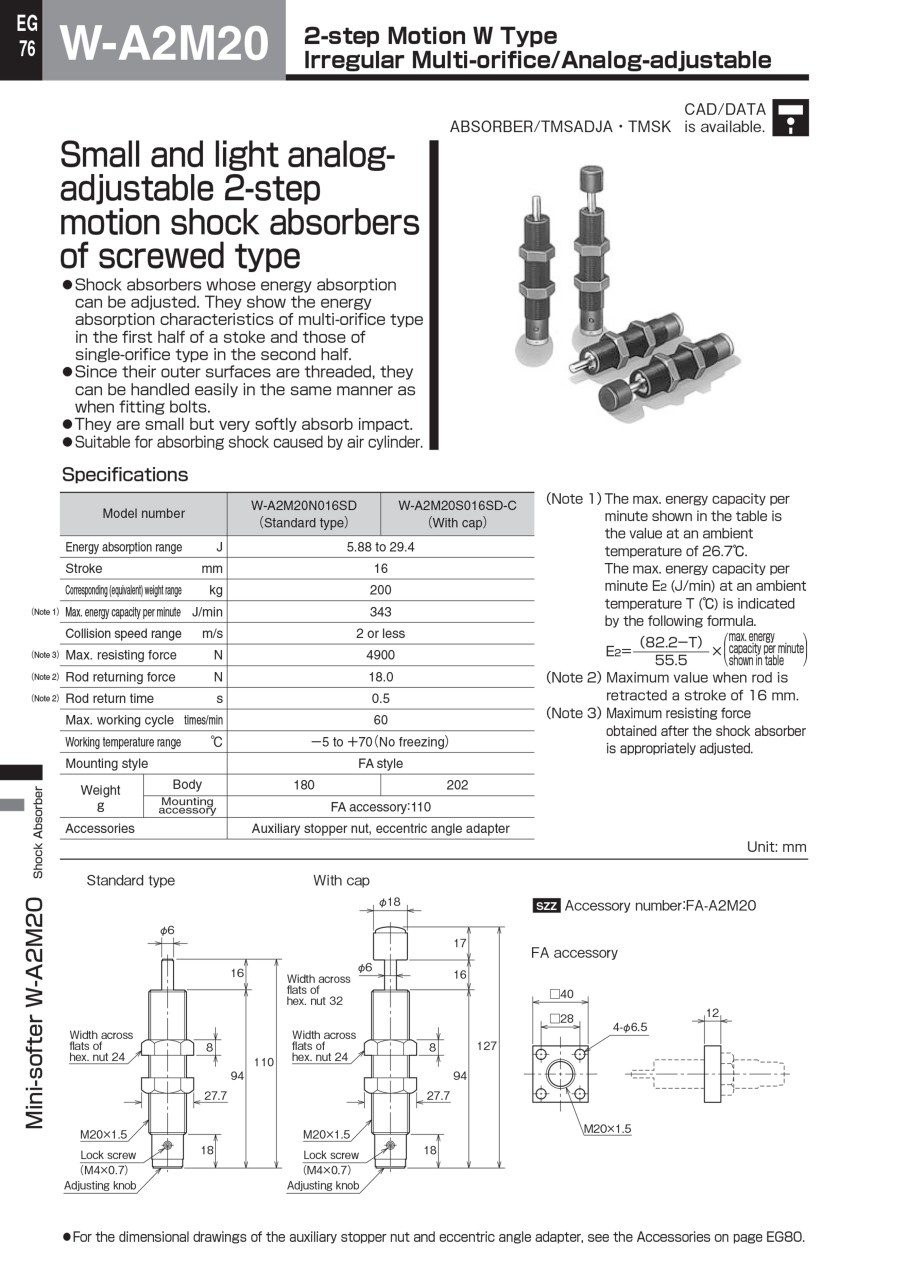

Shock Absorber W-A2M20 Series
- Volume Discount
Small and lightweight analog-adjustable two-stage motion screw model shock absorber
[Features]
· Shock absorber adjusting absorbed energy.
· Front half of the stroke indicates the perforated and the latter half the single hole energy absorption property.
· Threading on the outer diameter makes handling just as easy as bolt attachment.
· Compact but absorbs shock very flexibly.
・Suitable for air cylinder shock absorption.
[Features]
· Shock absorber adjusting absorbed energy.
· Front half of the stroke indicates the perforated and the latter half the single hole energy absorption property.
· Threading on the outer diameter makes handling just as easy as bolt attachment.
· Compact but absorbs shock very flexibly.
・Suitable for air cylinder shock absorption.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| W-A2M20N016SD |
| W-A2M20S016SD-C |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length L (mm) | Tip caps | |
|---|---|---|---|---|---|---|
127.19 € | 1 | 9 Days | 110 | NA | ||
113.67 € | 1 | Available | 9 Days | 127 | Available |
Loading...
Basic information
| Main Body/Related Parts | Main Body | Structure | Adjustable Type | Stroke S(mm) | 16 |
|---|---|---|---|---|---|
| Mounting Screw Nominal M | M20 | Nominal Mounting Screw [M] | 20 | Max. Absorbed Energy(J) | 29.4 |
| Orifice Type | Irregular multi orifice | Usage Environment | Standard | Main Body Material | Steel |
| Max. Collision Velocity(m/s) | 2 | Max. Resisting Force Value(N) | 4900 | Piston Rod Return Force(N) | 18 |
| Max. Operating Cycle(cycle/min) | 60 | Allowable Angular Misalignment(deg) | ±2.8 | Absorbed Energy per Minute(J/min) | 343 |
| Operating Temperature Range(°C) | -5::70 | Ordering Unit(pc.) | 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
