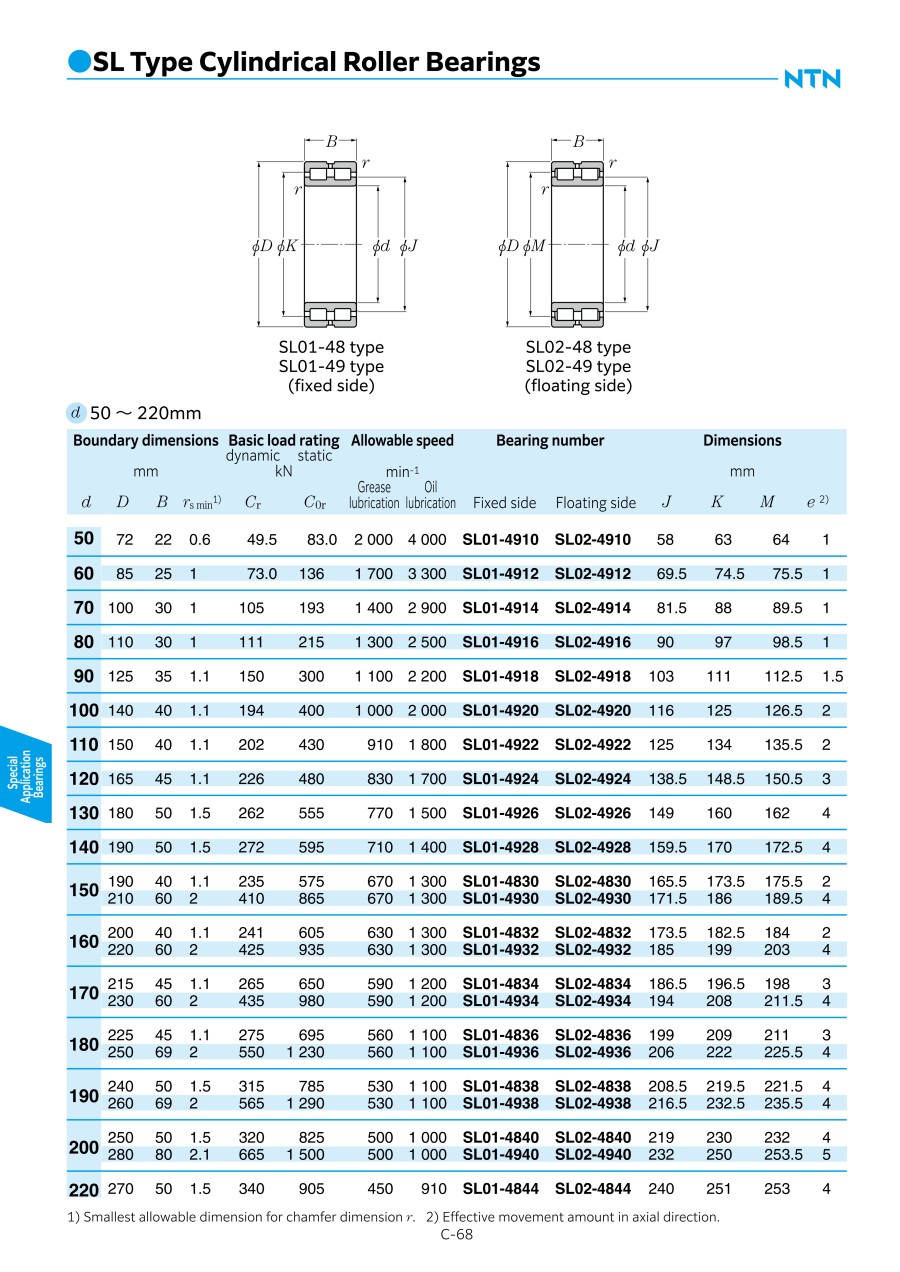

SL Type Cylindrical Roller Bearing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | I.D. d (mm) | O.D. D (mm) | Width B (mm) | Outer Ring Type | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Internal Clearance Symbol | Arrangement | Number Of Rotations (1/min) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
374.28 € | 1 | 9 Days | 10 | 150 | 190 | 40 | Flat | 235000 | 575000 | - | Fixed Side | 670 | ||
712.10 € | 1 | 9 Days | 10 | 190 | 240 | 50 | Flat | 315000 | 785000 | - | Fixed Side | 530 | ||
92.11 € | 1 | 5 Days | - | 50 | 72 | 22 | Flat | 49500 | 83000 | - | Fixed Side | 2000 | ||
90.76 € | 1 | 9 Days | 10 | 50 | 72 | 22 | Flat | 49500 | 83000 | C3 | Fixed Side | 2000 | ||
130.97 € | 1 | 9 Days | 10 | 90 | 125 | 35 | Flat | 150000 | 300000 | - | Fixed Side | 1100 | ||
193.50 € | 1 | 9 Days | 10 | 110 | 150 | 40 | Flat | 202000 | 430000 | - | Fixed Side | 910 | ||
82.61 € | 1 | 9 Days | 10 | 60 | 85 | 25 | Flat | 73000 | 136000 | - | Free side | 1700 | ||
79.94 € | 1 | 9 Days | 10 | 70 | 100 | 30 | Flat | 105000 | 193000 | - | Free side | 1400 | ||
92.22 € | 1 | 9 Days | 10 | 80 | 110 | 30 | Flat | 111000 | 215000 | - | Free side | 1300 | ||
207.49 € | 1 | 9 Days | 10 | 120 | 165 | 45 | Flat | 226000 | 480000 | - | Free side | 830 | ||
347.68 € | 1 | 9 Days | 10 | 140 | 190 | 50 | Flat | 272000 | 595000 | - | Free side | 710 | ||
114.25 € | 1 | 5 Days | - | 40 | 68 | 38 | With Groove for Retaining Ring | 79500 | 116000 | - | - | 2500 | ||
121.43 € | 1 | 6 Days | - | 45 | 75 | 40 | With Groove for Retaining Ring | 95500 | 144000 | - | - | 2200 | ||
127.53 € | 1 | 5 Days | - | 50 | 80 | 40 | With Groove for Retaining Ring | 100000 | 158000 | - | - | 2000 | ||
104.25 € | 1 | 9 Days | 10 | 60 | 95 | 46 | With Groove for Retaining Ring | 123000 | 208000 | - | - | 1700 | ||
112.52 € | 1 | 5 Days | 10 | 65 | 100 | 46 | With Groove for Retaining Ring | 128000 | 224000 | - | - | 1500 | ||
123.36 € | 1 | 5 Days | - | 70 | 110 | 54 | With Groove for Retaining Ring | 171000 | 285000 | - | - | 1400 | ||
147.50 € | 1 | 8 Days | 10 | 75 | 115 | 54 | With Groove for Retaining Ring | 197000 | 325000 | - | - | 1300 | ||
212.43 € | 1 | 8 Days | 10 | 90 | 140 | 67 | With Groove for Retaining Ring | 305000 | 540000 | - | - | 1100 | ||
245.41 € | 1 | 10 Days | 10 | 95 | 145 | 67 | With Groove for Retaining Ring | 310000 | 560000 | - | - | 1100 | ||
267.08 € | 1 | 9 Days | 10 | 100 | 150 | 67 | With Groove for Retaining Ring | 330000 | 580000 | - | - | 1000 | ||
421.00 € | 1 | 9 Days | 10 | 120 | 180 | 80 | With Groove for Retaining Ring | 400000 | 750000 | - | - | 830 | ||
561.15 € | 1 | 12 Days | 10 | 140 | 210 | 95 | With Groove for Retaining Ring | 600000 | 1120000 | - | - | 710 |
Loading...
Basic information
| Raceway Ring Shape | Cylindrical Roller | Load Direction | Radial | Outer Ring | With Outer Ring |
|---|---|---|---|---|---|
| Inner/Outer Ring Material | Steel | Precision (JIS) | Grade 0 | Number of Raceway Ring Rows | Single Row |
| Size Standards | Metric System | Specifications/Environment | Standard | Rolling Element Material | Steel |
| Retainer Type | NA |
Configure
Basic Attributes
-
I.D. d(mm)
-
O.D. D(mm)
-
Width B(mm)
-
Outer Ring Type
- Flat
- With Groove for Retaining Ring
-
Internal Clearance Symbol
-
Arrangement
- Fixed Side
- Free side
-
Number Of Rotations(1/min)
-
Type
- SL
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
- 8 Days or Less
- 9 Days or Less
- 10 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
