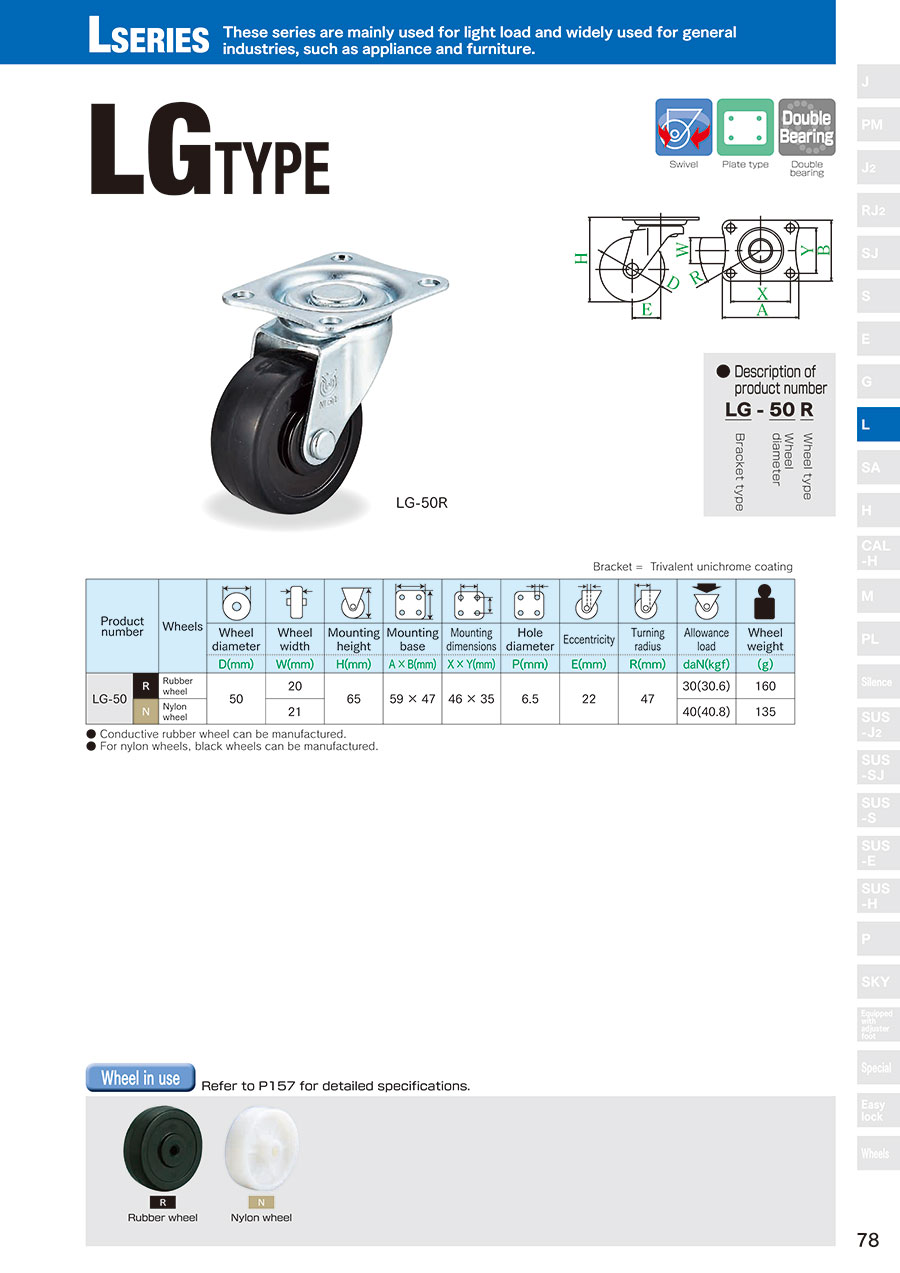

LG Model Swivel Wheel Plate Type

LG Model Swivel Wheel Plate Type
  • Volume Discount
Used for light loads, this is a caster used mainly for flat dollies and shop appliances

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
LG-50BN
LG-50R
LG-50RE
LG-50UR
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Properties Load Range
(daN)
Allowable Load
(daN)
Wheel Material Wheel Characteristics Plate Width
(mm)
Wheel Dia. D
(mm)
Wheel Width
(mm)
Wheel Bearings

3.84 €

1 12 Days -35.01~80.0040[Nylon] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance--21None

4.01 €

1 5 Days -~35.0030RubberNA475020NA

5.40 €

1 12 Days [Antistatic] Electrical Conductivity~35.0030RubberNA--20None

4.82 €

1 12 Days -35.01~80.0038[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance--21None

Loading...

  1. 1

Basic information

Caster Type Plate Type Universal Mounting Height H(mm) 65 Stopper NA
Fitting Material Steel Mounting Hole Type Round Hole Mounting Hole Pitch, Long Length Direction L1(mm) 46
Mounting Hole Pitch, Short Length Direction W1(mm) 35 Plate Length(mm) 59 Application Streamlining of Logistics, Hand Truck / Steel shelve, woodwork furniture
Swivel Radius(mm) 47 Load Category Light Load
