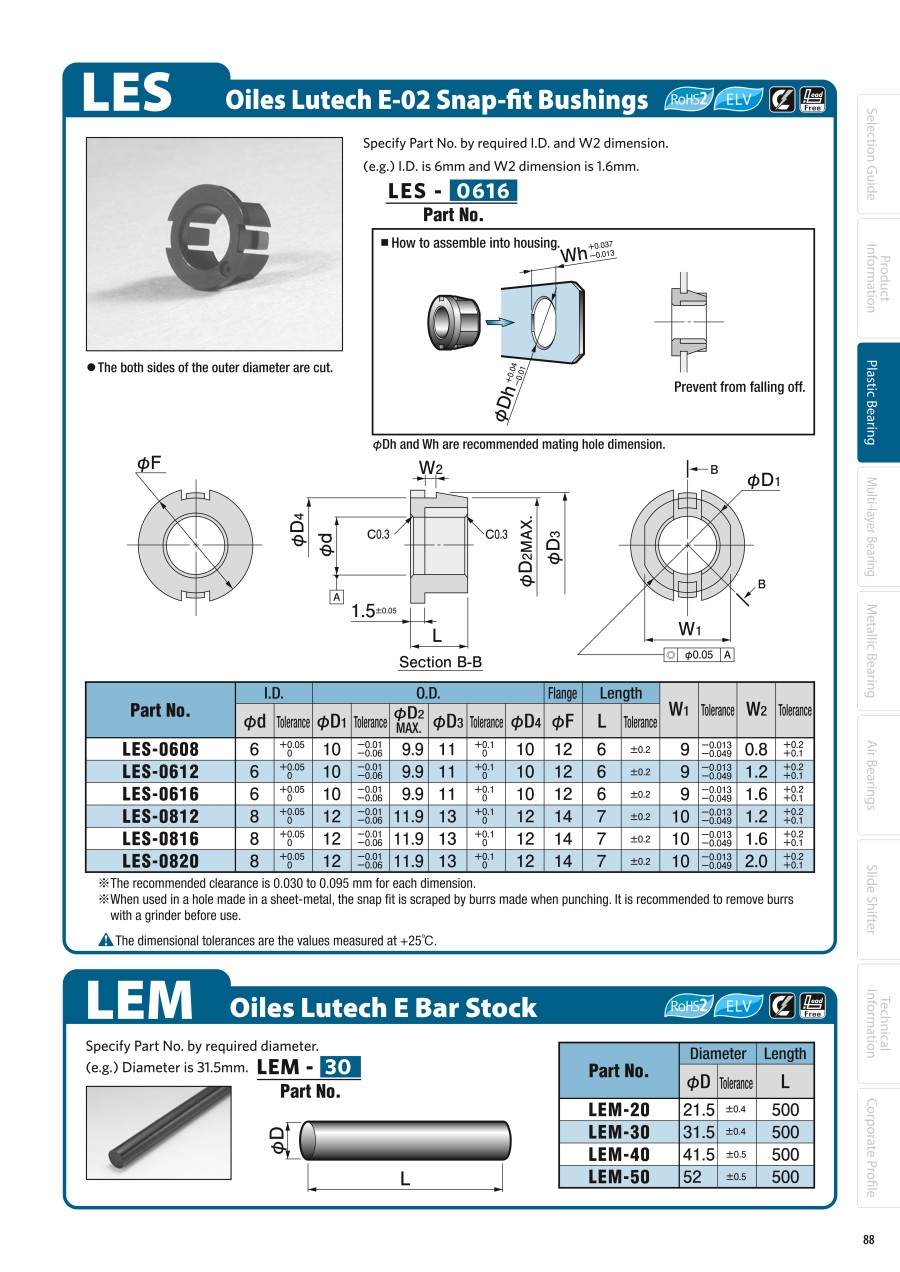

Oiles Lutech E-02 Snap-Fit Bushing (LES)

Oiles Lutech E-02 Snap-Fit Bushing (LES)
  • Volume Discount

Snap-fit type, with excellent assembly workability.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
LES-0608
LES-0612
LES-0616
LES-0812
LES-0816
LES-0820
Part NumberStandard Unit PriceVolume DiscountShipping Days?I.D. d
(Ø)
O.D. D
(Ø)
L
(mm)
Operating Temperature Range
(°C)
Flange Outside Diameter
(mm)
Applicable Plate Pressure W2
(mm)

0.42 €

10 Days 6106-40~80120.8

0.42 €

10 Days 6106-40~80121.2

0.53 €

Available Same day

Stock

6106-40~80121.6

0.50 €

10 Days 8127-40~80141.2

0.50 €

4 Days 8127-40~80141.6

0.50 €

Same day

Stock

8127-40~80142.0

Loading...

  1. 1

Basic information

Type Flange Operating Environment Standard Maximum Allowable PV Value Range(N/mm2•m/s) 0.3–1.0
Maximum Allowable PV Value(N/mm2•m/s) 0.327 Maximum Allowable Surface Pressure P(N/mm2) 9.81 Maximum Allowable Velocity V(m/s) 0.83
Length Type Single Fitting axis h7 Lubrication Non-Lubricated
