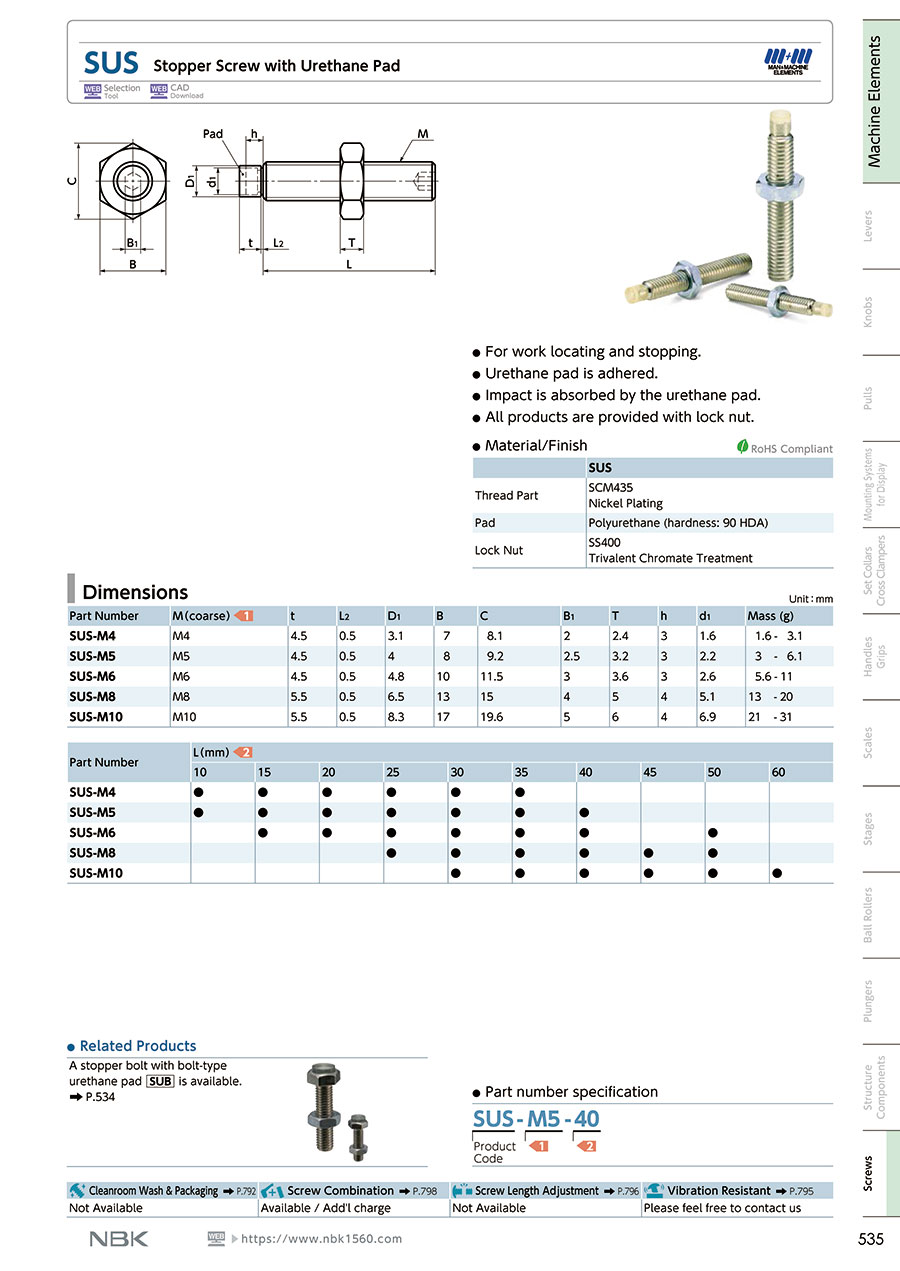

stopper bolts / hexagon socket / regular thread / PUR protective cap, front / steel / nickel-plated / A90 / SUS
- Volume Discount
[Features]
· For positioning workpieces, stoppers, etc.
· Urethane pad attached.
· Urethane absorbs shocks.
· Lock nuts are included with all products.
· Main body: SCM 435, nickel plating, pad polyurethane (hardened) 90HDA).
· Lock nut: SS400, trivalent chromate processing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Screw Shaft Diameter M (mm) | Main Body Thread Length (mm) | Pad Diameter (mm) | |
|---|---|---|---|---|---|---|---|
8.13 € | 1 | Available |
Same day
Stock | 4 | 10 | 3.1 | |
9.38 € | 1 | 6 Days | 4 | 15 | 3.1 | ||
9.38 € | 1 | 6 Days | 4 | 20 | 3.1 | ||
9.40 € | 1 | 6 Days | 4 | 25 | 3.1 | ||
8.15 € | 1 | Available |
Same day
Stock | 4 | 30 | 3.1 | |
9.40 € | 1 | 6 Days | 4 | 35 | 3.1 | ||
10.18 € | 1 | 6 Days | 5 | 10 | 4 | ||
8.65 € | 1 | Available |
Same day
Stock | 5 | 15 | 4 | |
8.65 € | 1 | Available |
Same day
Stock | 5 | 20 | 4 | |
10.19 € | 1 | 6 Days | 5 | 25 | 4 | ||
10.19 € | 1 | 6 Days | 5 | 30 | 4 | ||
10.21 € | 1 | 6 Days | 5 | 35 | 4 | ||
10.21 € | 1 | 6 Days | 5 | 40 | 4 | ||
9.06 € | 1 | Available |
Same day
Stock | 6 | 15 | 4.8 | |
10.60 € | 1 | 6 Days | 6 | 20 | 4.8 | ||
10.61 € | 1 | 9 Days | 6 | 35 | 4.8 | ||
9.09 € | 1 | Available | 6 Days | 6 | 40 | 4.8 | |
10.64 € | 1 | 6 Days | 6 | 50 | 4.8 | ||
11.42 € | 1 | 6 Days | 8 | 25 | 6.5 | ||
8.72 € | 1 | Available | 6 Days | 8 | 30 | 6.5 | |
11.44 € | 1 | 6 Days | 8 | 40 | 6.5 | ||
11.45 € | 1 | 6 Days | 8 | 45 | 6.5 | ||
11.47 € | 1 | 6 Days | 8 | 50 | 6.5 | ||
9.23 € | 1 | Available | 6 Days | 10 | 30 | 8.3 | |
12.06 € | 1 | 6 Days | 10 | 50 | 8.3 | ||
12.09 € | 1 | 6 Days | 10 | 60 | 8.3 |
Loading...
Basic information
| Main Body Material | EN 1.7220 Equiv. | Main Body Surface Treatment | Nickel Plating |
|---|
